Code 11: Idle Mixture Adjuster Sensor

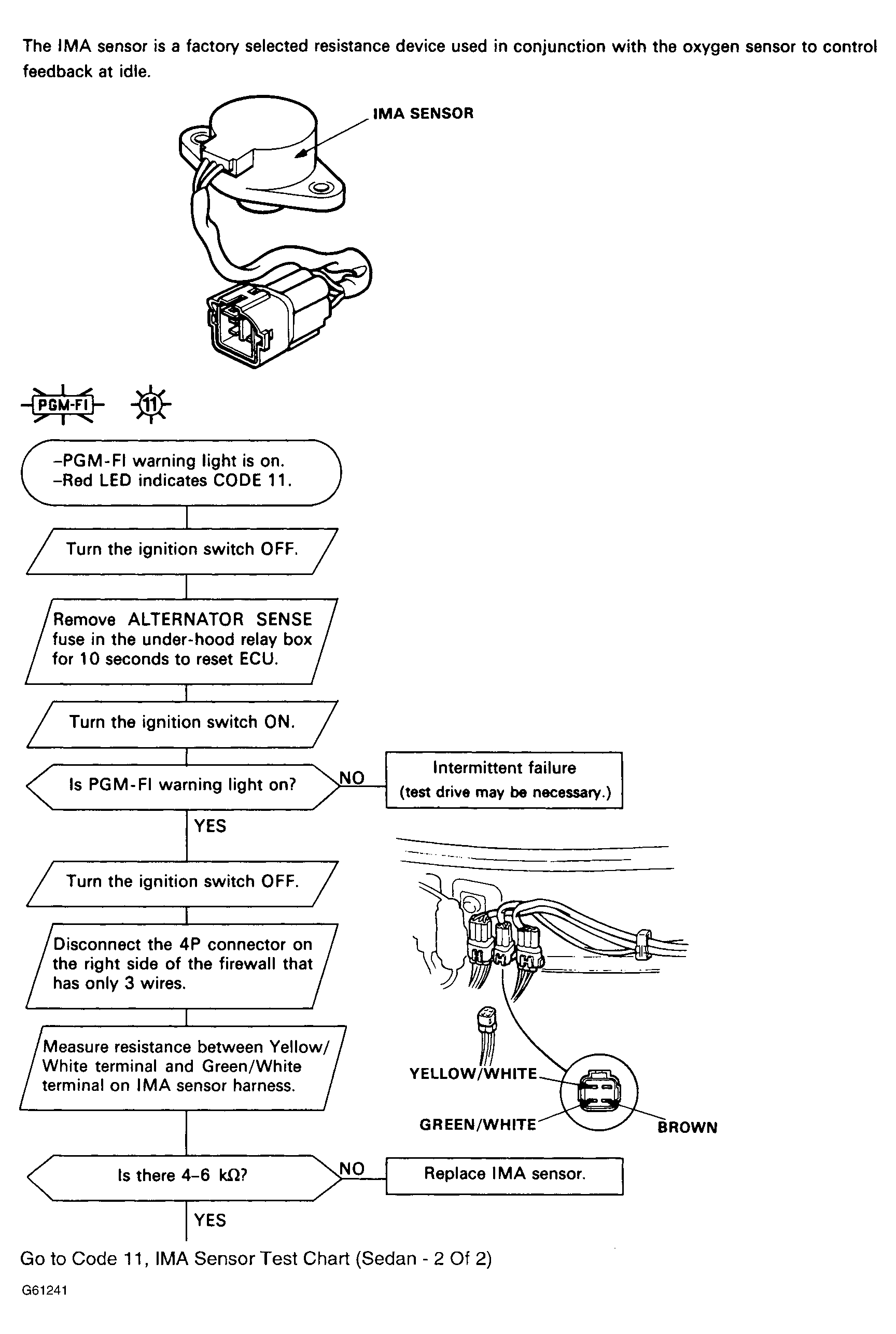

Fig 1: Code 11, IMA Sensor Test Chart (Sedan - 1 Of 2)

G61241

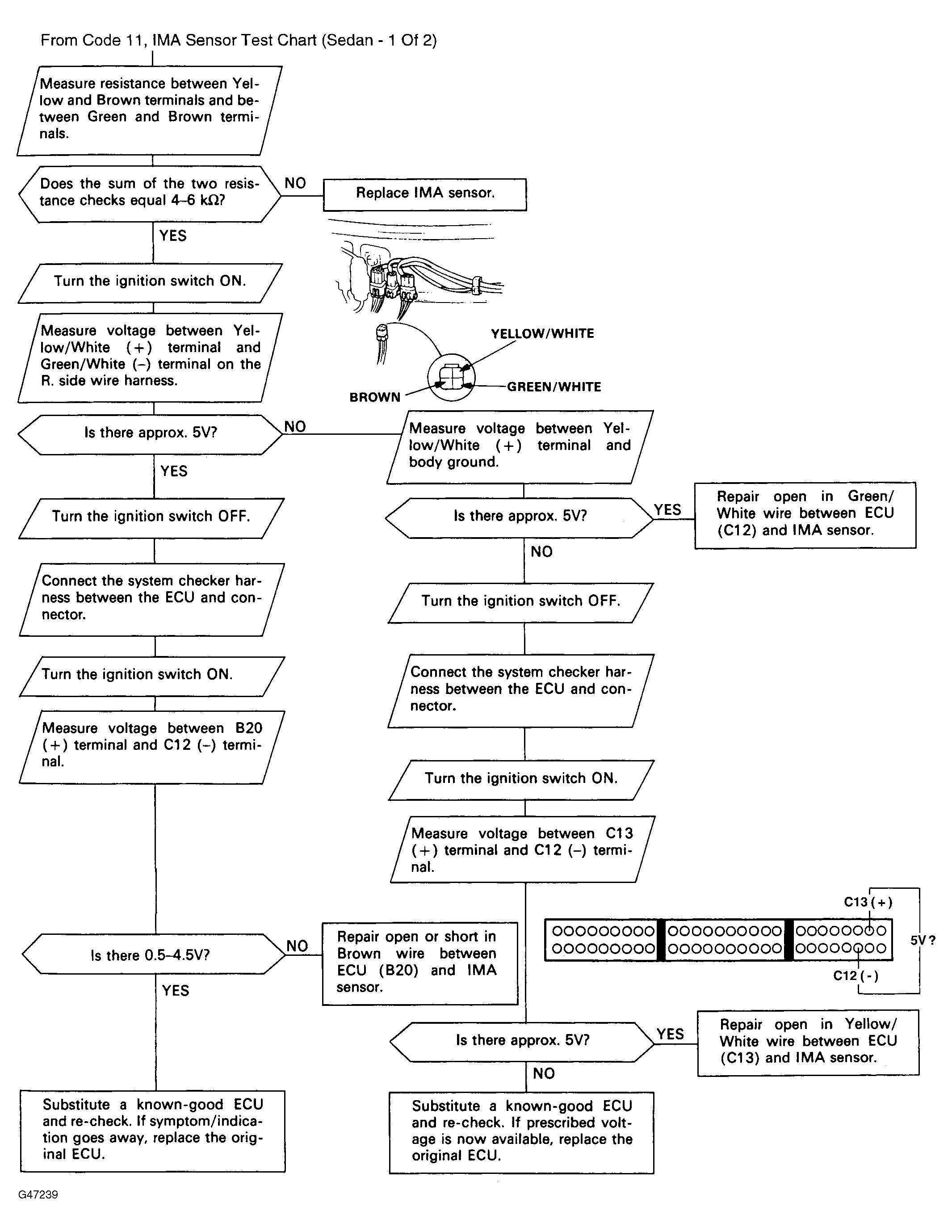

Fig 2: Code 11, IMA Sensor Test Chart (Sedan - 2 Of 2)

G47239
