Code 6: Coolant Temperature Sensor

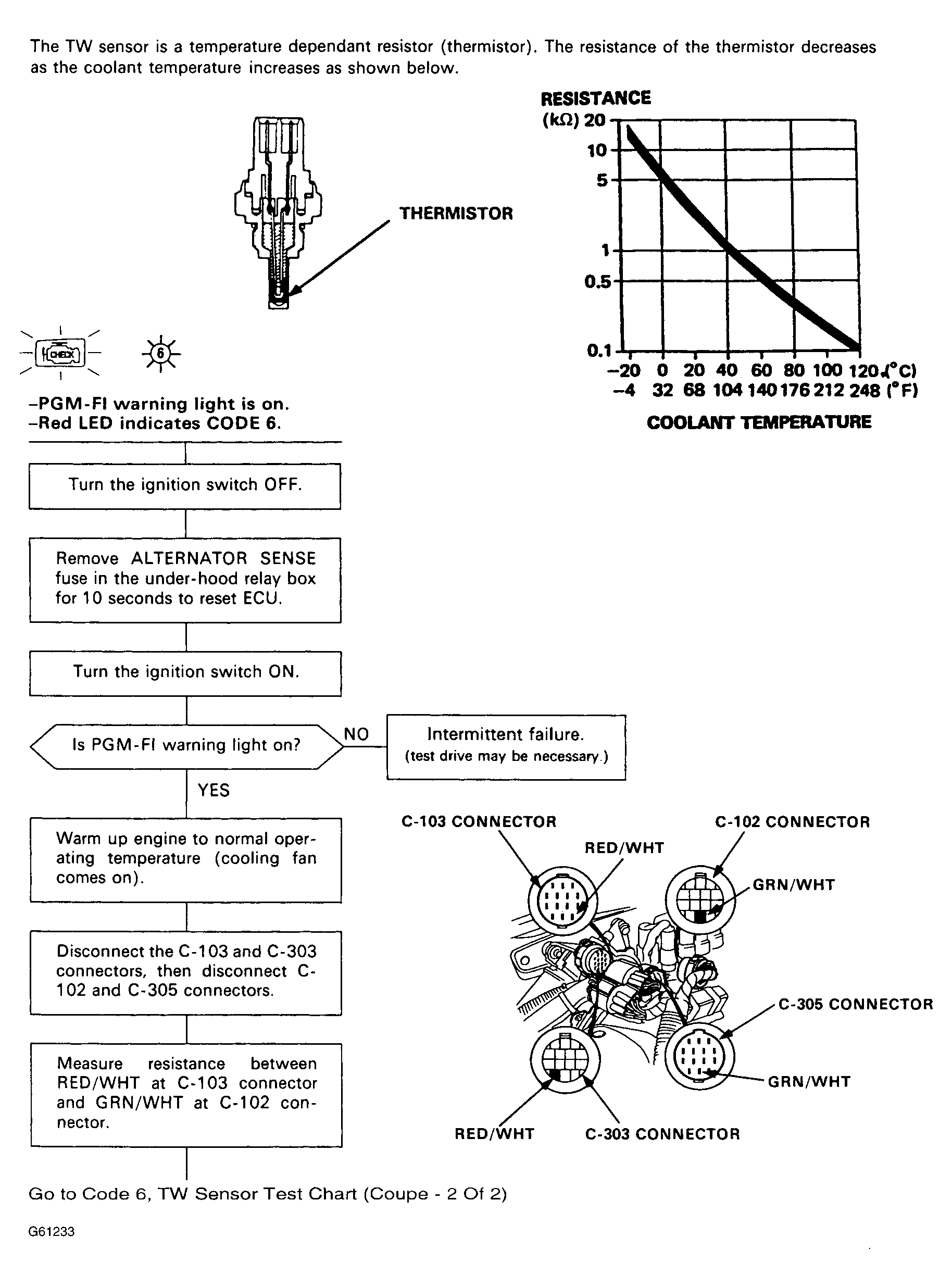

Fig 1: Code 6, TW Sensor Test Chart (Coupe - 1 Of 2)
G61233

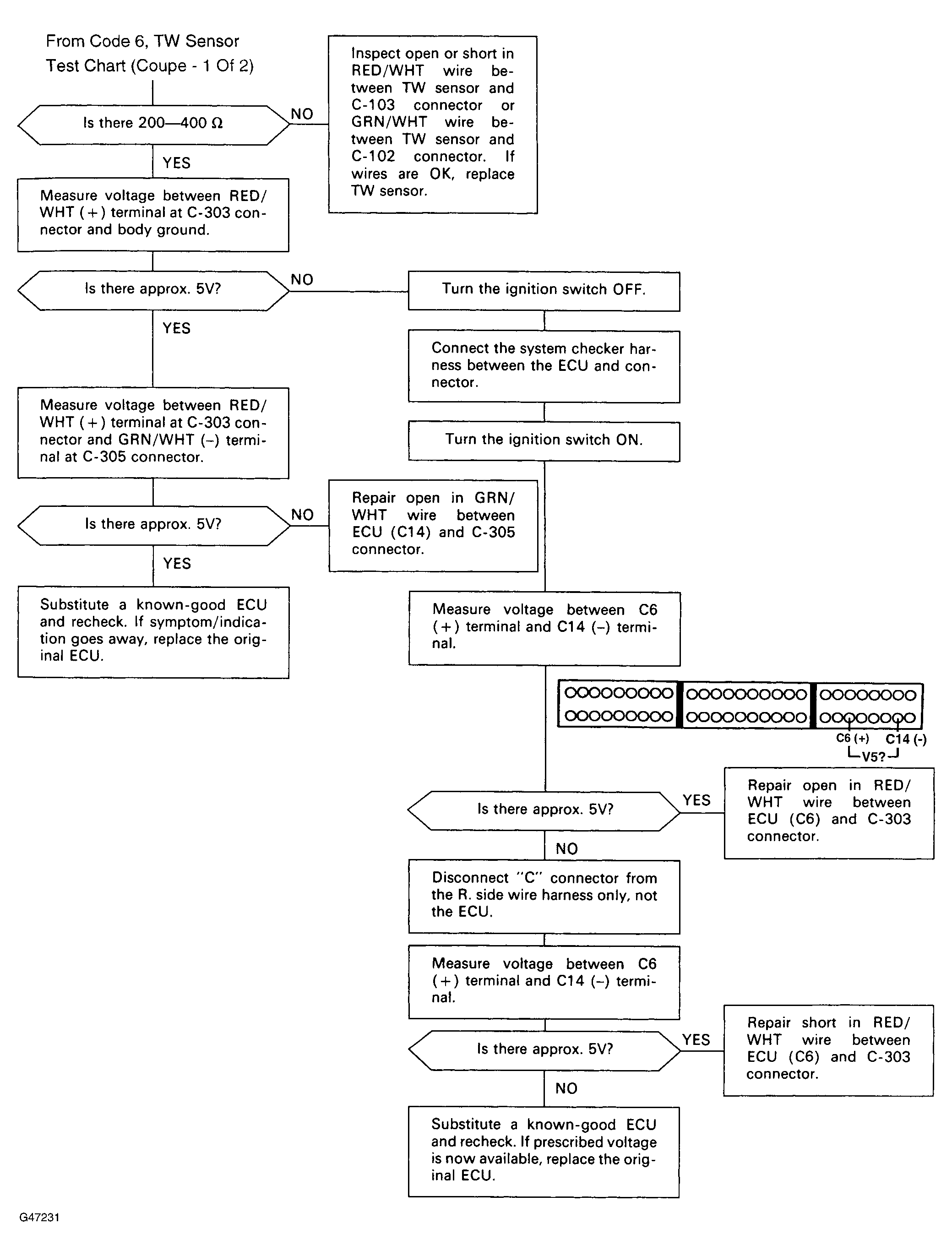

Fig 2: Code 6, TW Sensor Test Chart (Coupe - 2 Of 2)
G47231

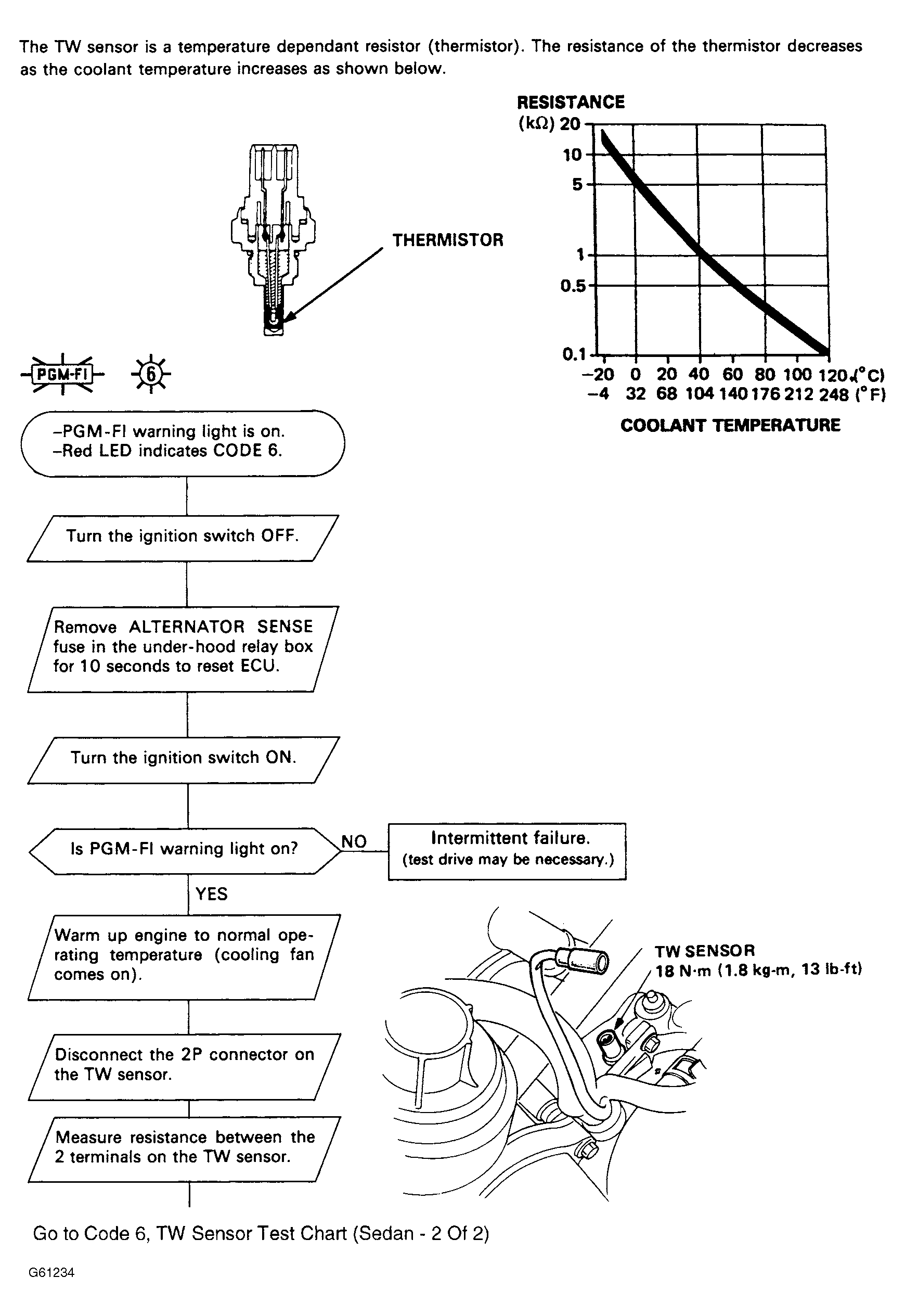

Fig 3: Code 6, TW Sensor Test Chart (Sedan - 1 Of 2)
G61234

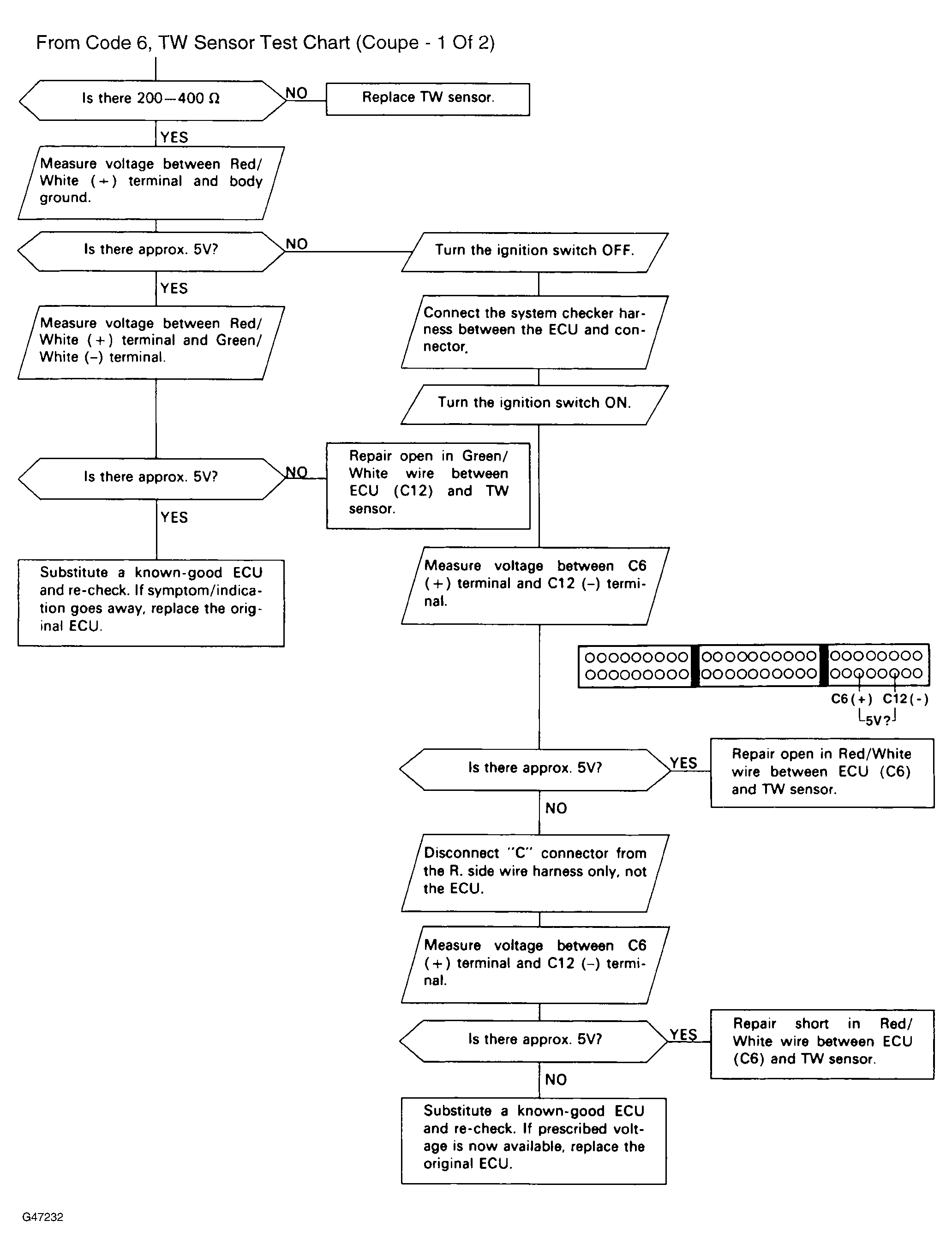

Fig 4: Code 6, TW Sensor Test Chart (Sedan - 2 Of 2)
G47232
