Home >> Acura >> 1986 >> Legend Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Engine Control System >> Diagnosis & Testing >> Code 7: Throttle Angle Sensor

Code 7: Throttle Angle Sensor

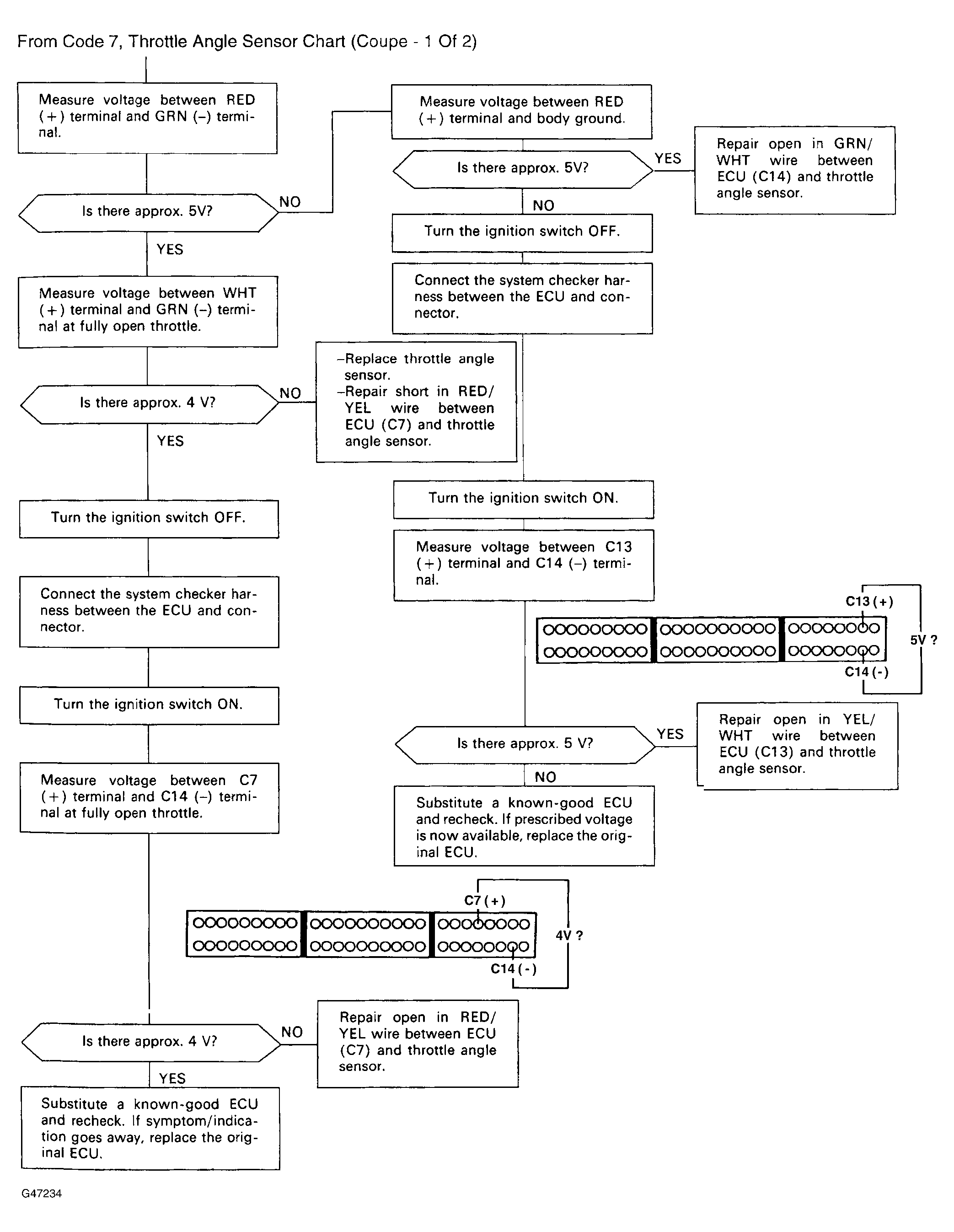

Fig 1: Code 7, Throttle Angle Sensor Chart (Coupe - 1 Of 2)
G61236

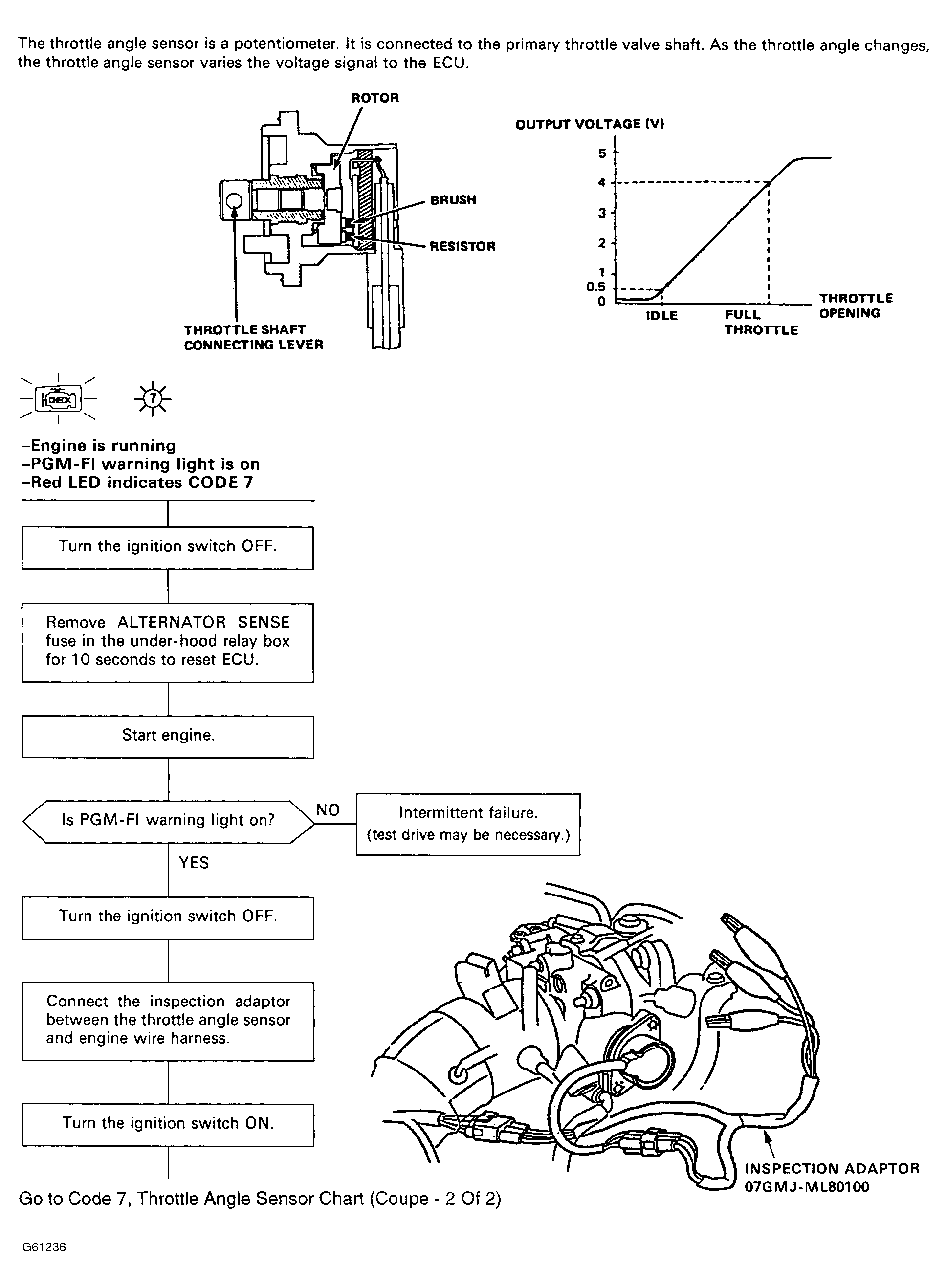

Fig 2: Code 7, Throttle Angle Sensor Chart (Coupe - 2 Of 2)
G47234

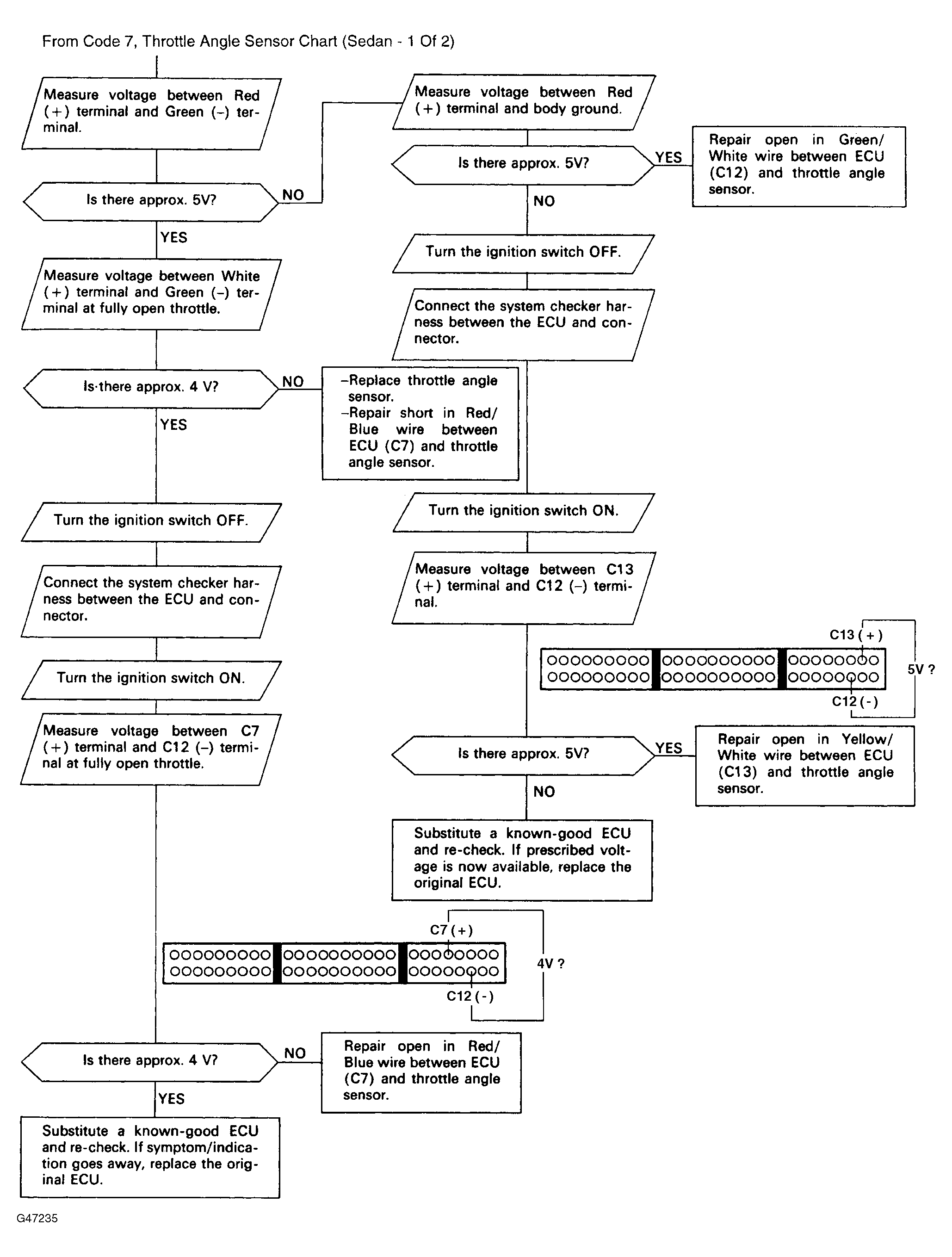

Fig 3: Code 7, Throttle Angle Sensor Chart (Sedan - 1 Of 2)
G61237

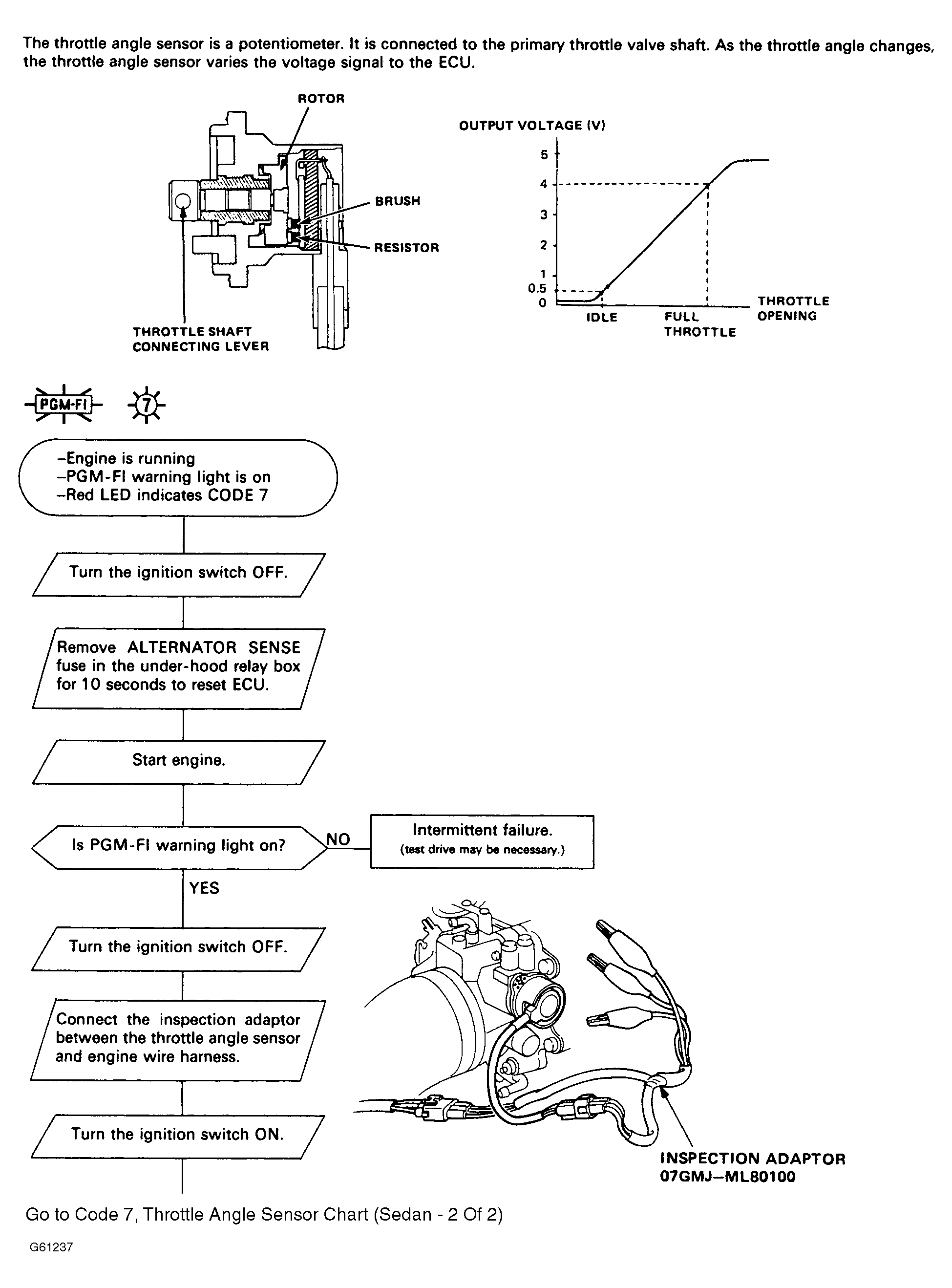

Fig 4: Code 7, Throttle Angle Sensor Chart (Sedan - 2 Of 2)
G47235
