Wiring Diagrams

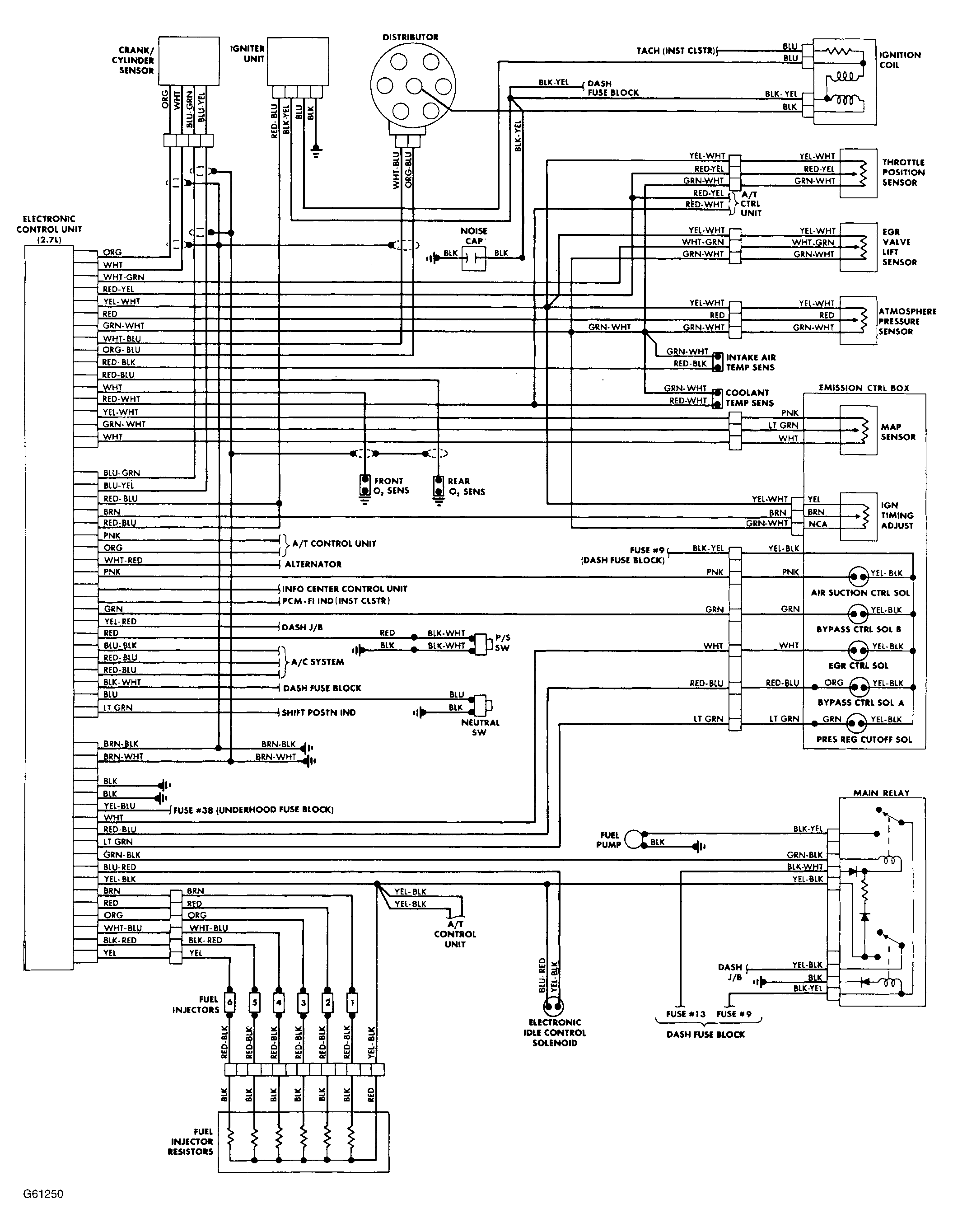

Fig 1: Engine Performance Wiring Diagram (Coupe)

G61250

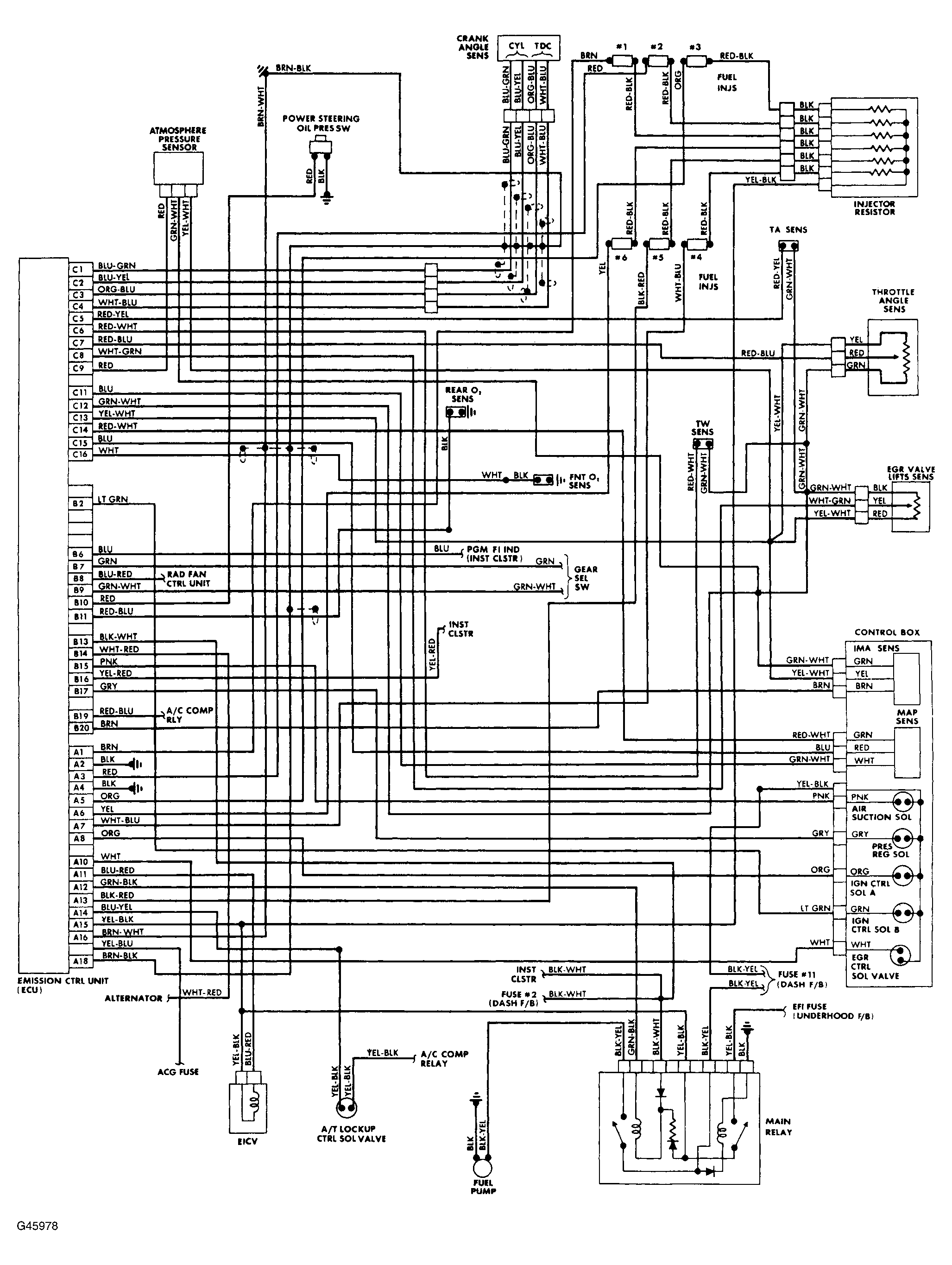

Fig 2: Engine Performance Wiring Diagram (Sedan)

G45978
