Home >> Acura >> 1987 >> Integra LS, 2D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Engine Control System >> Testing >> Code 10 - Intake Air Temperature Sensor

Code 10 - Intake Air Temperature Sensor

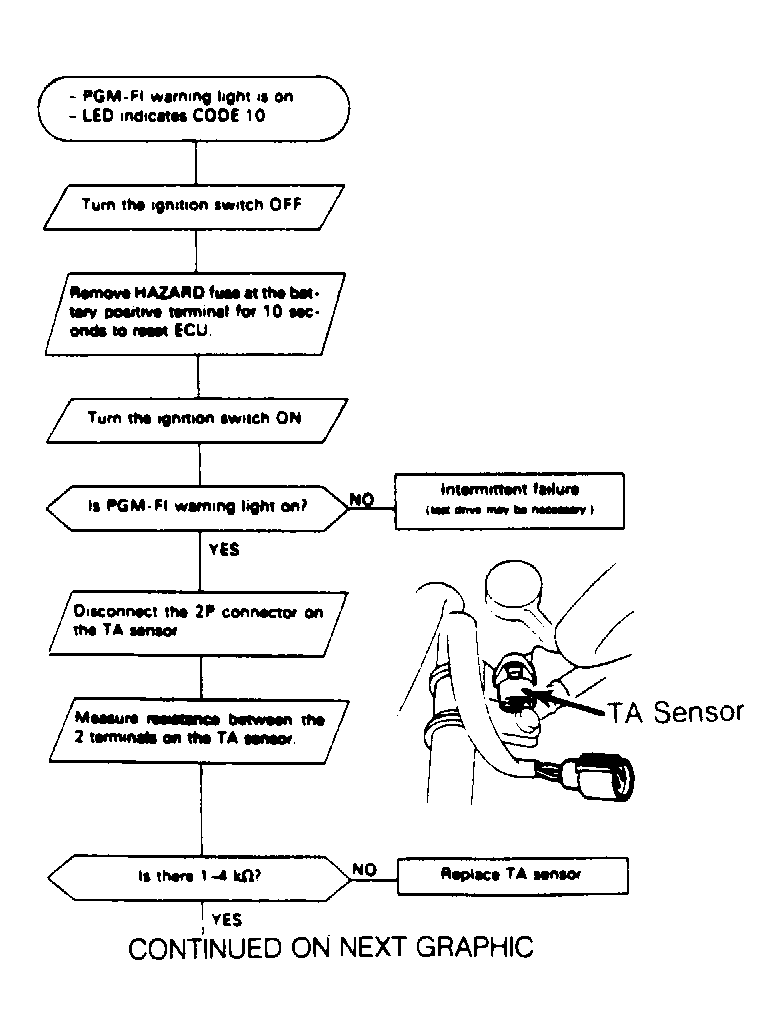

Fig 1: Code 10, TA Sensor Test Chart, Integra (1 of 2)

G61238

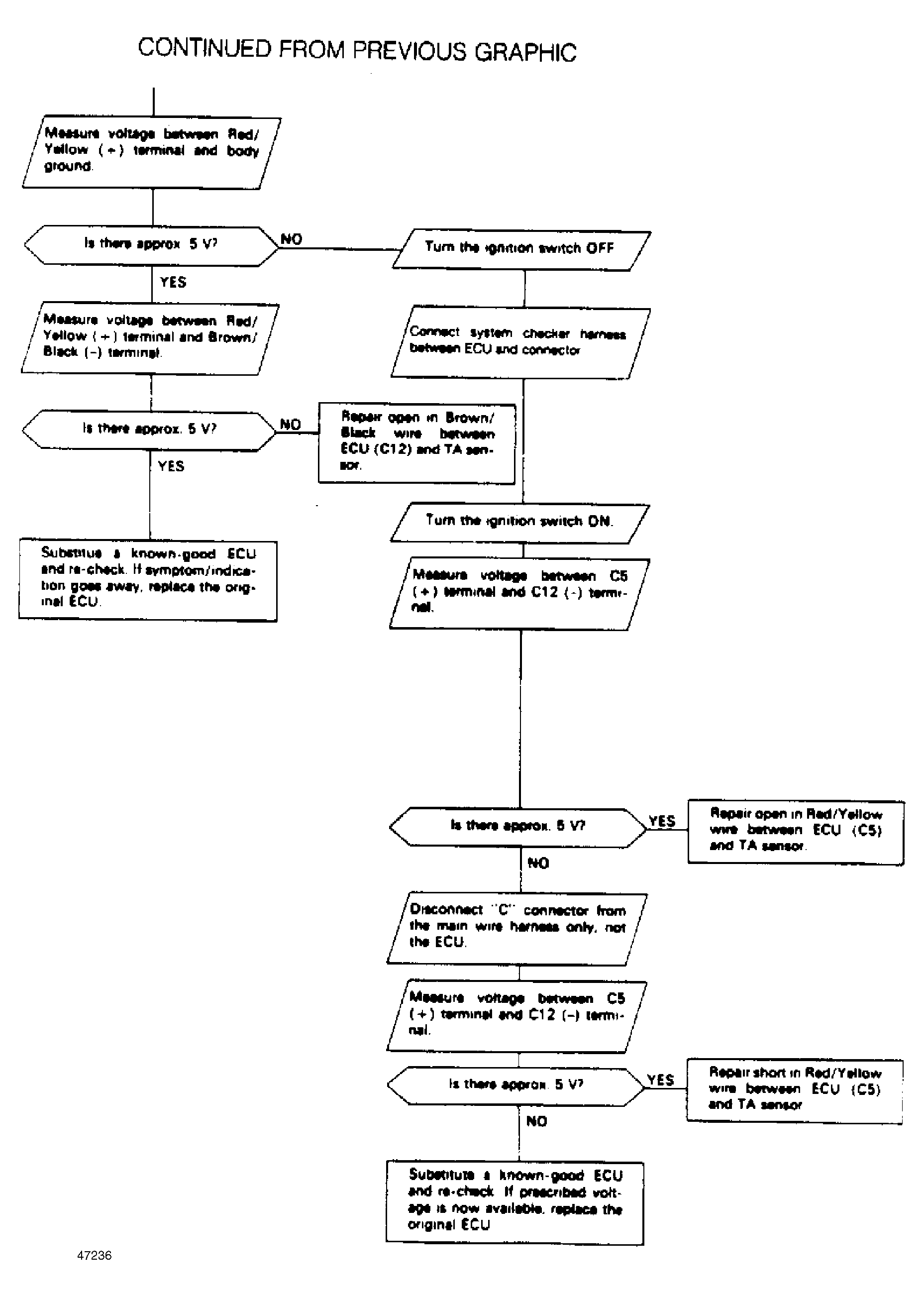

Fig 2: Code 10, TA Sensor Test Chart, Integra (2 of 2)

G47236
