Code 3 & 5 - Manifold Air Pressure Sensor

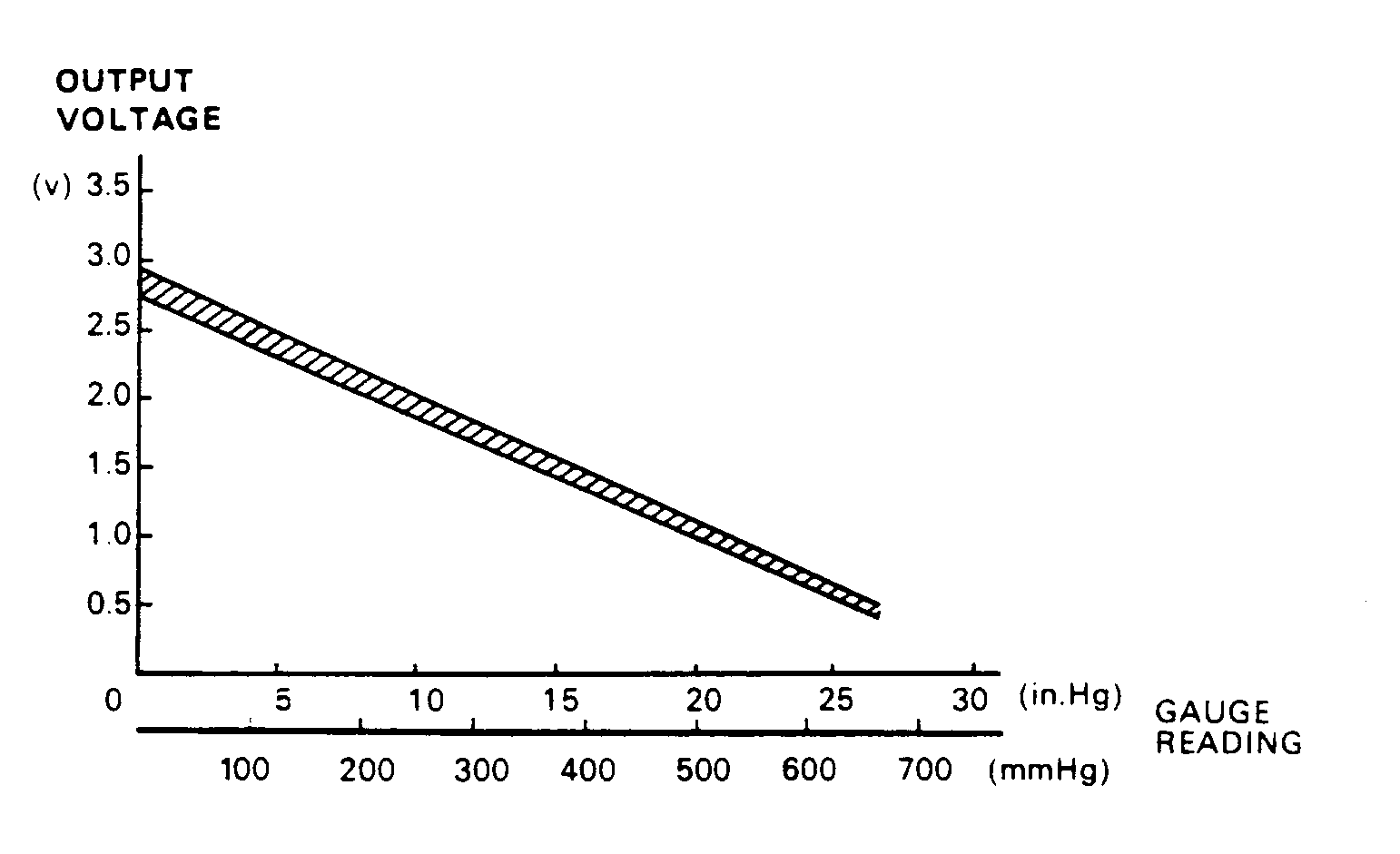

Fig 1: MAP Sensor Output Voltage Graph, Integra

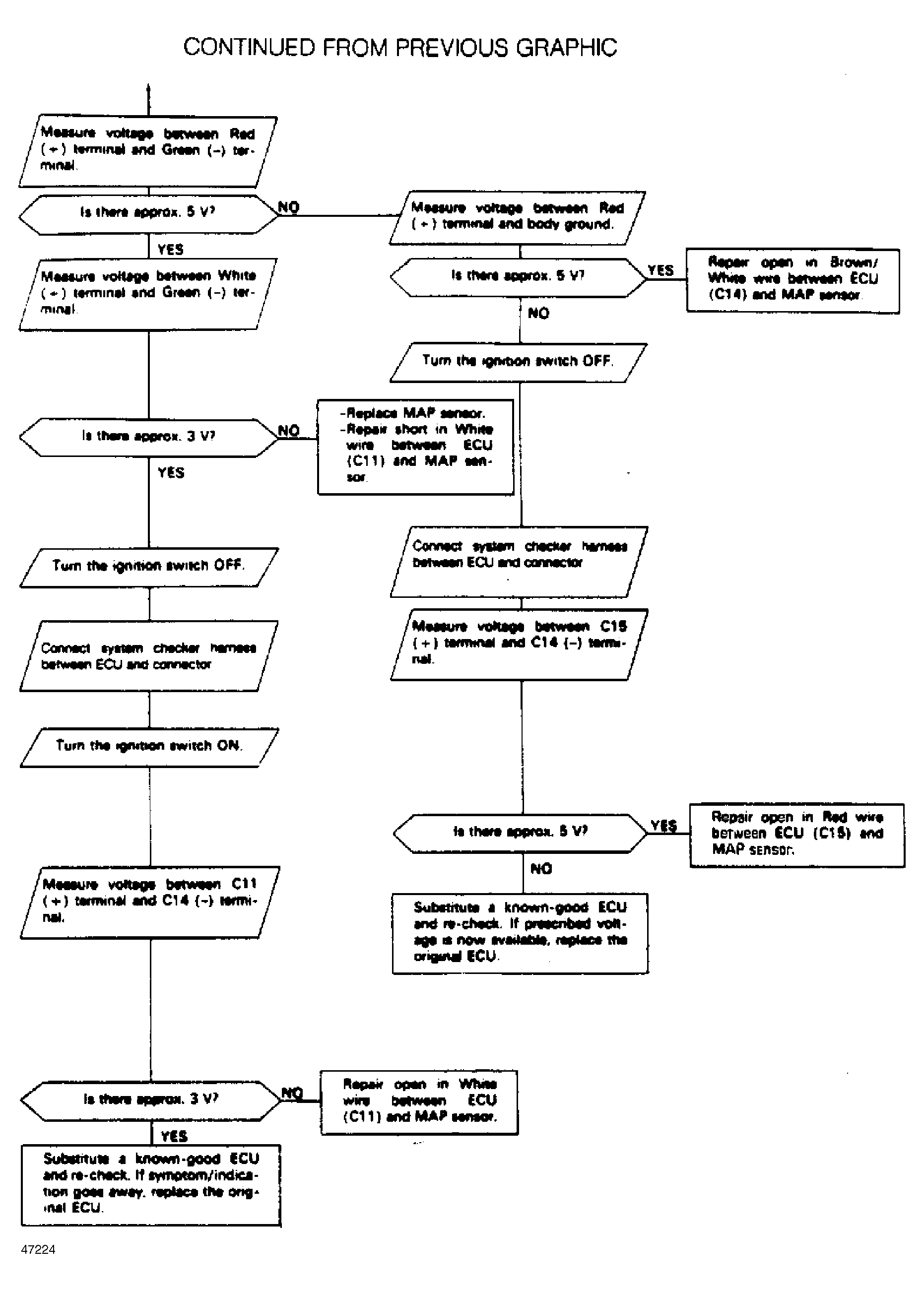

Fig 2: Code 3, MAP Sensor Test Chart, Integra (1 of 2)

Fig 3: Code 3, MAP Sensor Test Chart, Integra (2 of 2)

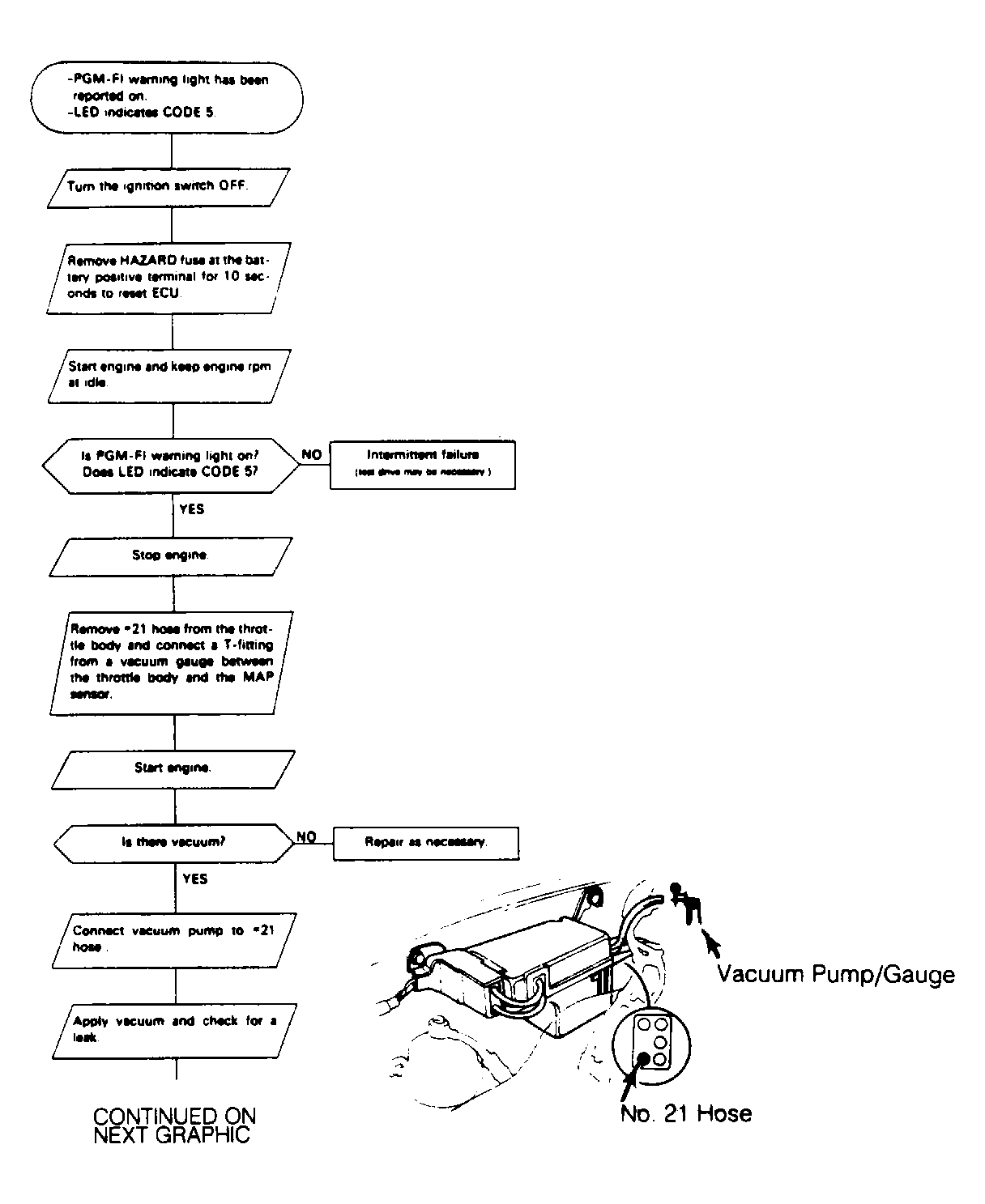

Fig 4: Code 5, MAP Sensor Test Chart, Integra (1 of 2)

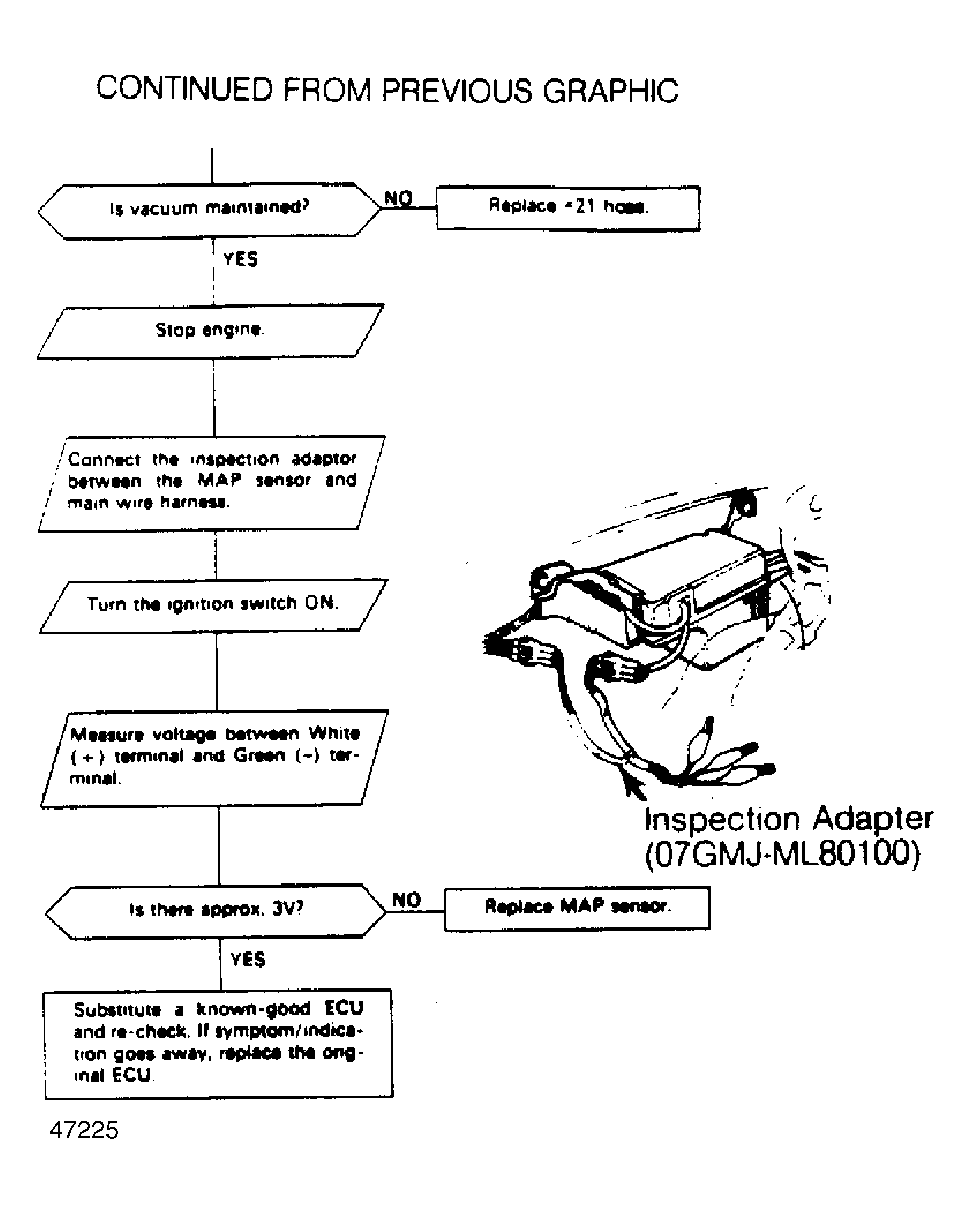

Fig 5: Code 5, MAP Sensor Test Chart, Integra (2 of 2)
