Fuel Pump Relay (Integra)

  1. Remove fuel pump relay, located near underdash fuse box. Connect battery voltage to terminal No. 4, and ground terminal No. 8 of relay. See Fig 1 .
  2. Check continuity between relay terminals No. 5 and 7. If continuity exists, go to next step. If continuity does not exist, replace relay.
  3. Connect battery positive to relay terminal No. 5, and ground terminal No. 2. Check continuity between relay terminals No. 1 and 3. If continuity exists, go to next step. If continuity does not exist, replace relay.
  4. Connect battery positive to relay terminal No. 3, and ground terminal No. 8. Check continuity between relay terminals No. 5 and 7. If continuity exists, relay is okay. If continuity is not present, replace relay.

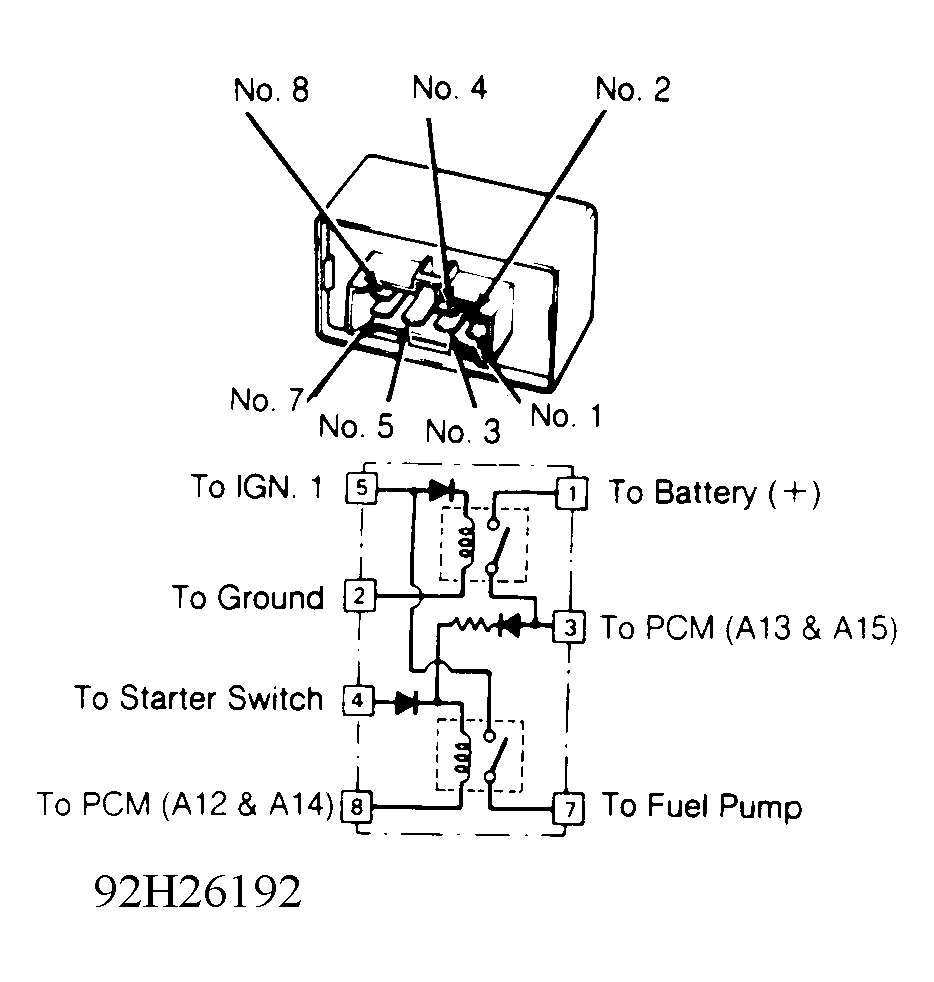

    Fig 1: Fuel Pump Relay Terminal ID (Integra)
    G92H26192Courtesy of AMERICAN HONDA MOTOR CO., INC.
