MIL Stays On

See Fig 1 -Fig 3 .

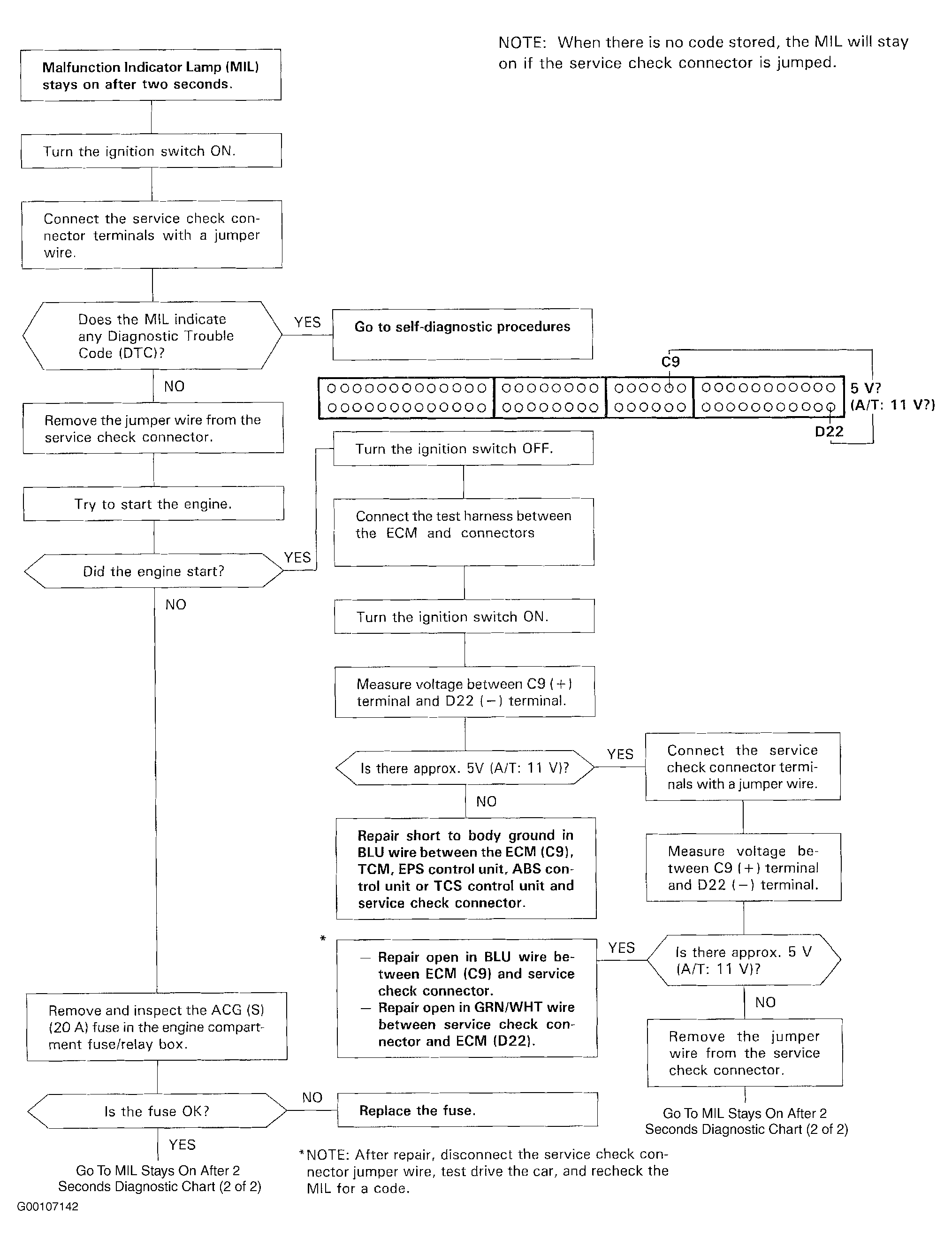

Fig 1: MIL Stays On After 2 Seconds Diagnostic Flowchart (1 Of 3)
G00107142Courtesy of AMERICAN HONDA MOTOR CO., INC.

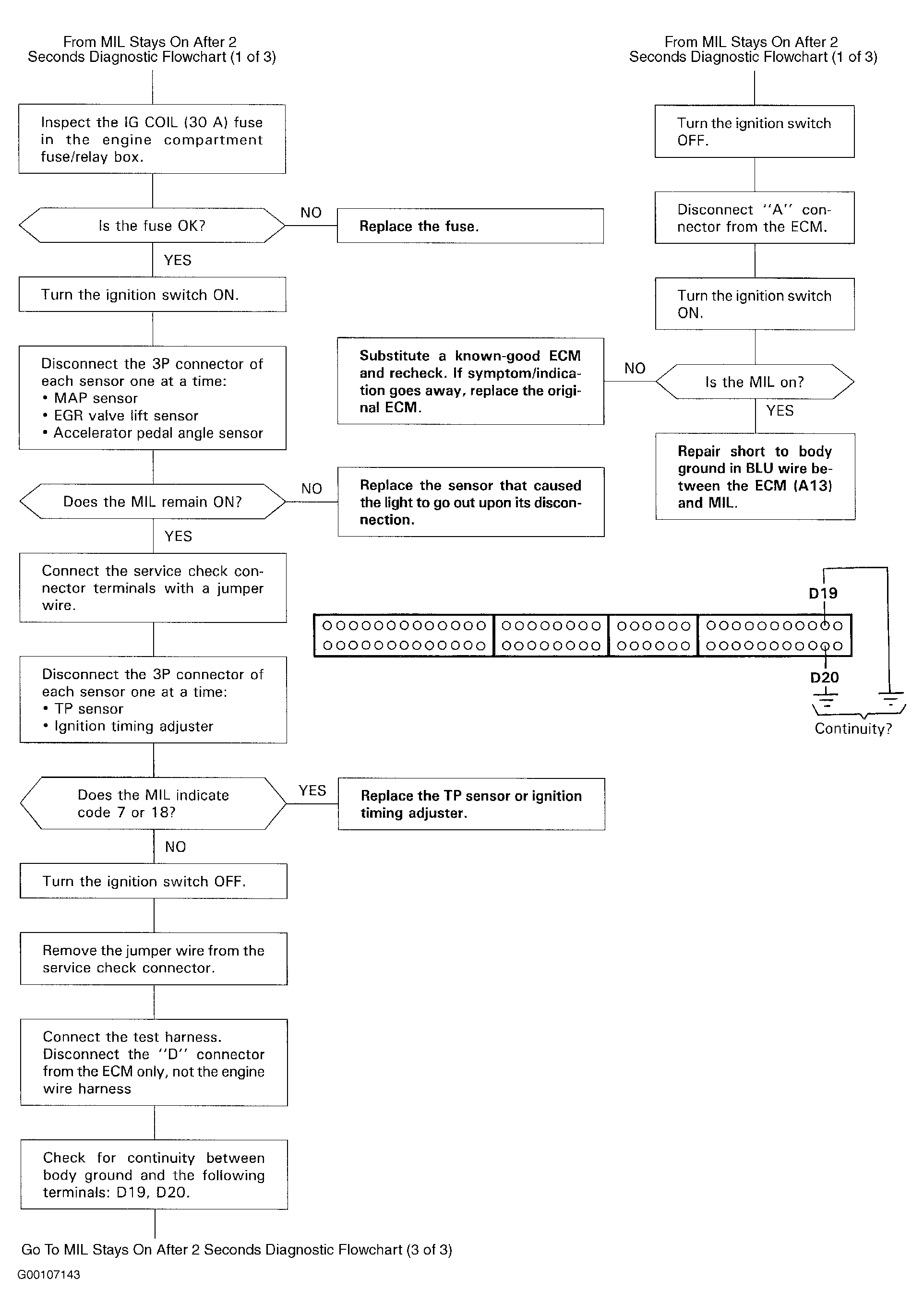

Fig 2: MIL Stays On After 2 Seconds Diagnostic Flowchart (2 Of 3)
G00107143Courtesy of AMERICAN HONDA MOTOR CO., INC.

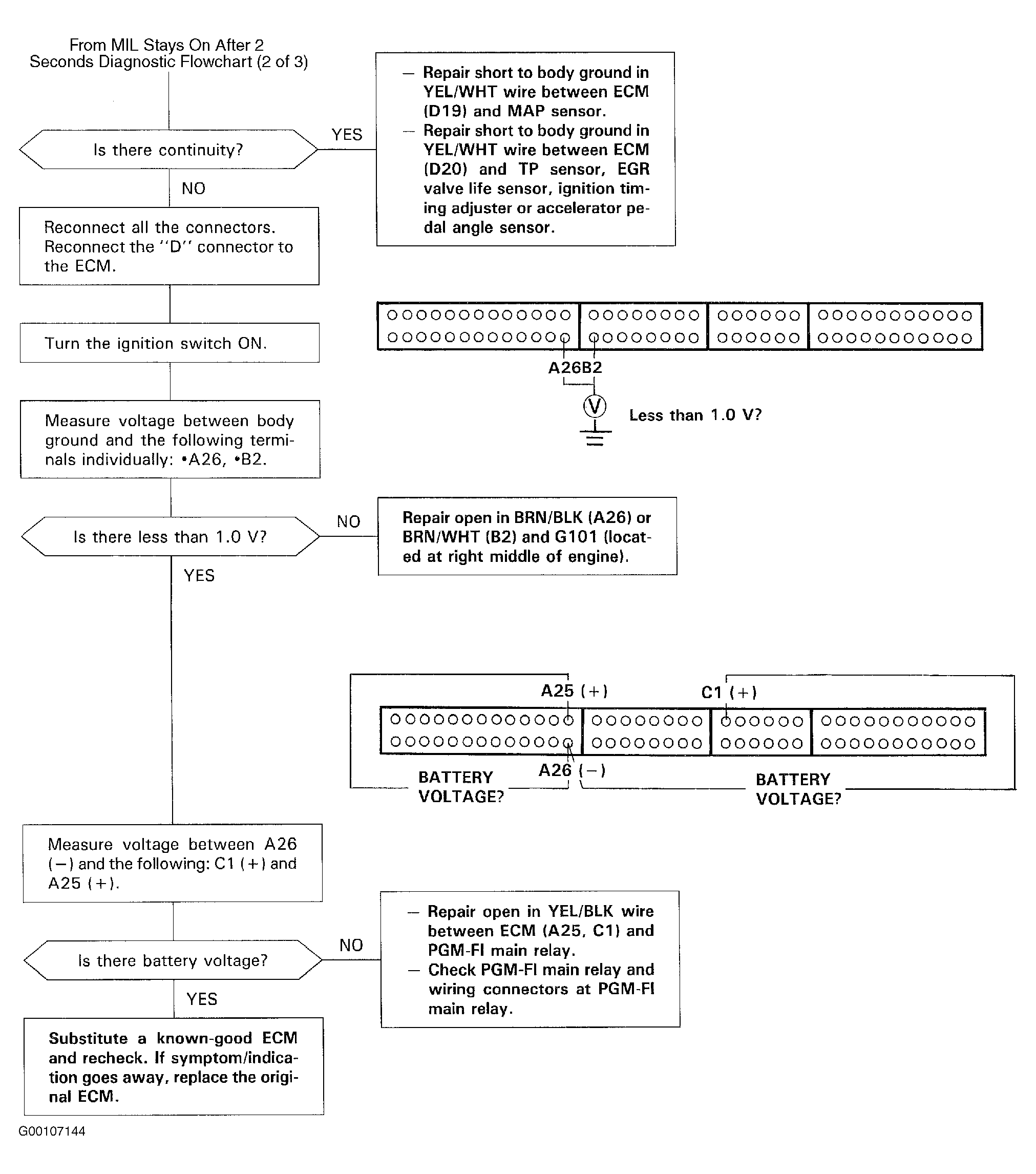

Fig 3: MIL Stays On After 2 Seconds Diagnostic Flowchart (3 Of 3)
G00107144Courtesy of AMERICAN HONDA MOTOR CO., INC.
