Home >> Acura >> 1993 >> NSX Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System & Component Testing >> Idle Control Systems >> M/T Neutral Switch Signal

M/T Neutral Switch Signal

This signals the ECM when the transmission is in Neutral. See Fig 1 .

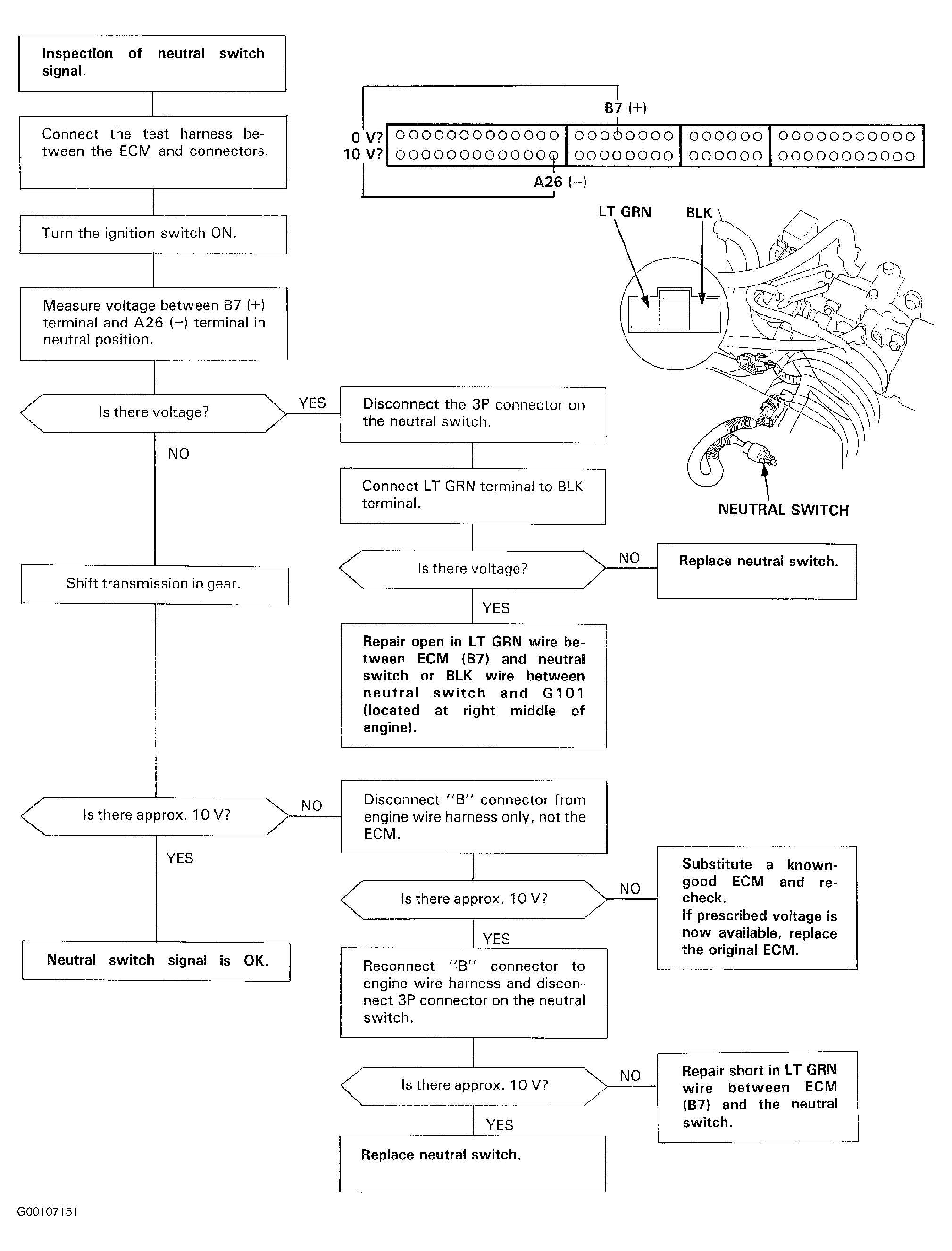

Fig 1: Neutral Switch Signal (M/T) Diagnostic Flowchart

G00107151

Courtesy of AMERICAN HONDA MOTOR CO., INC.
