Starter Switch Signal

This signals the ECM when the engine is cranking. See Fig 1 .

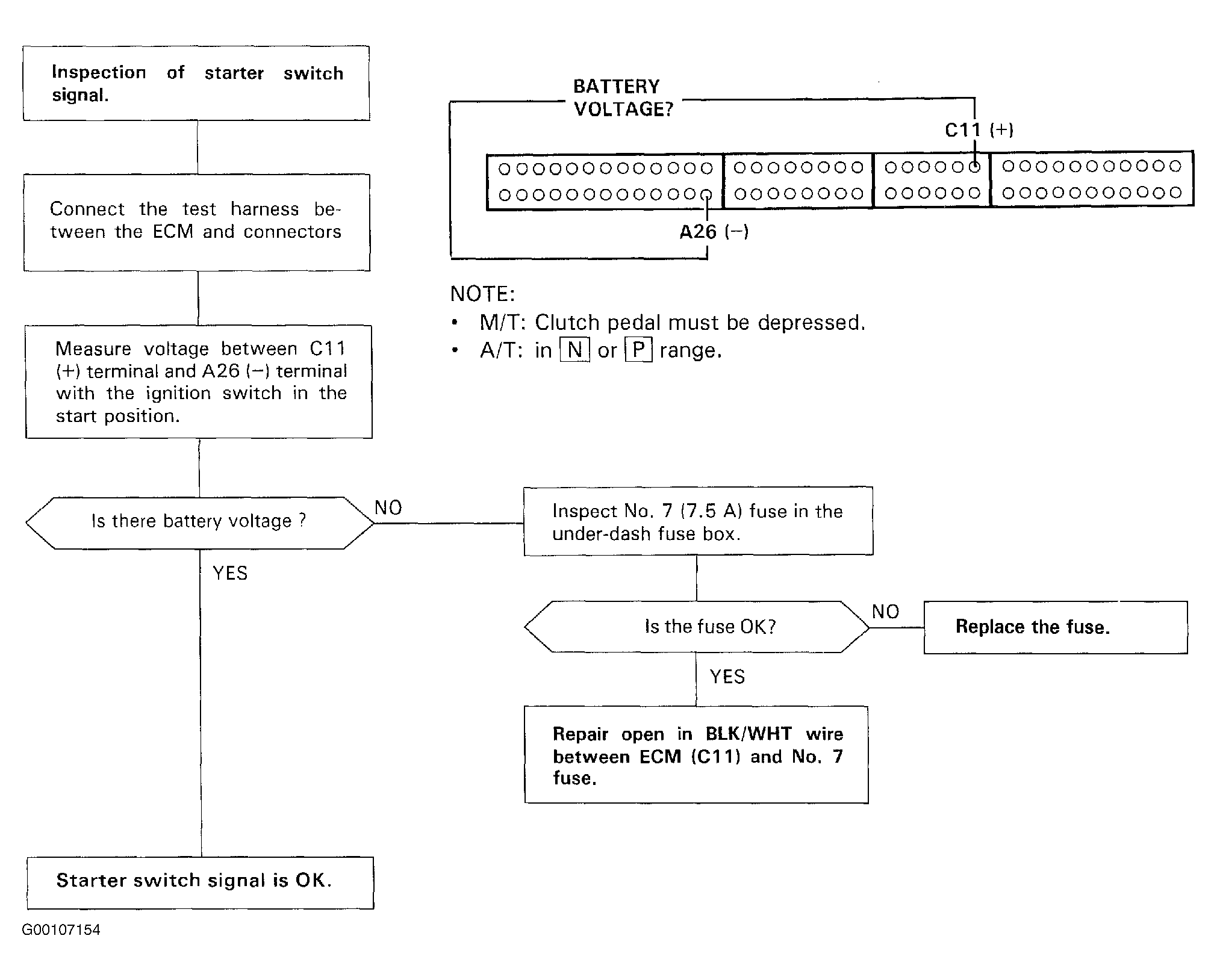

Fig 1: Starter Switch Signal Diagnostic Flowchart

G00107154

Courtesy of AMERICAN HONDA MOTOR CO., INC.
