All Systems

See Figure or Figure for connector terminal identification.

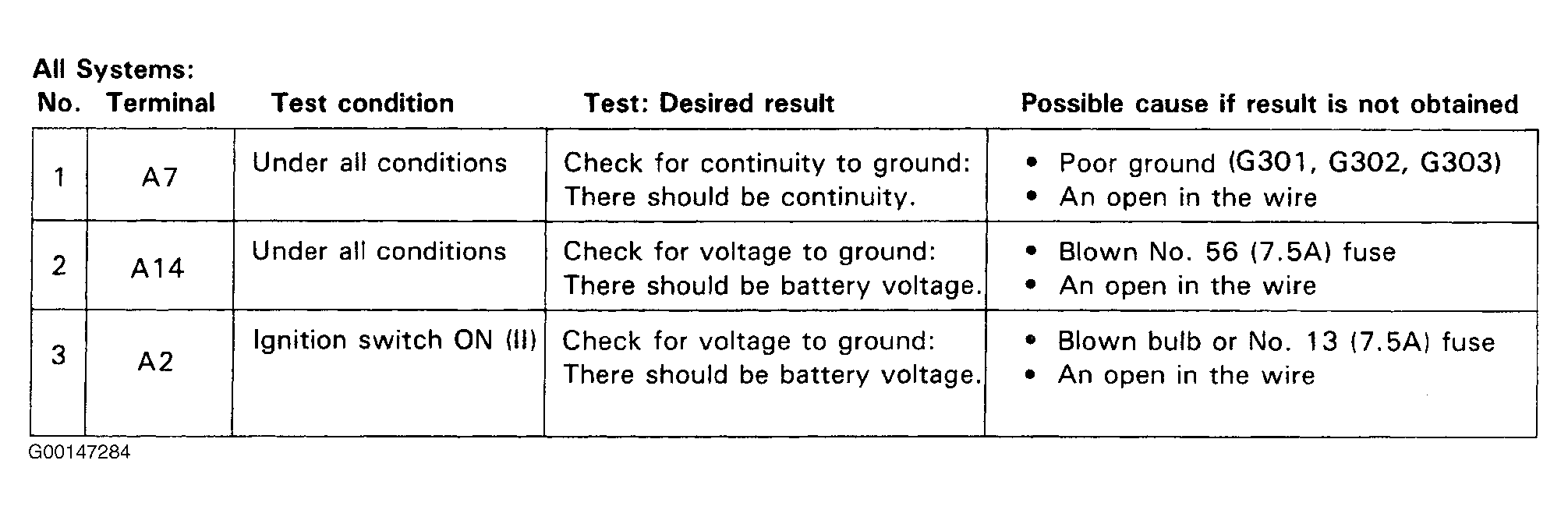

Fig 1: All Systems Input Test
G00147284Courtesy of AMERICAN HONDA MOTOR CO., INC.
