Key-In Reminder System
Key-In Reminder System

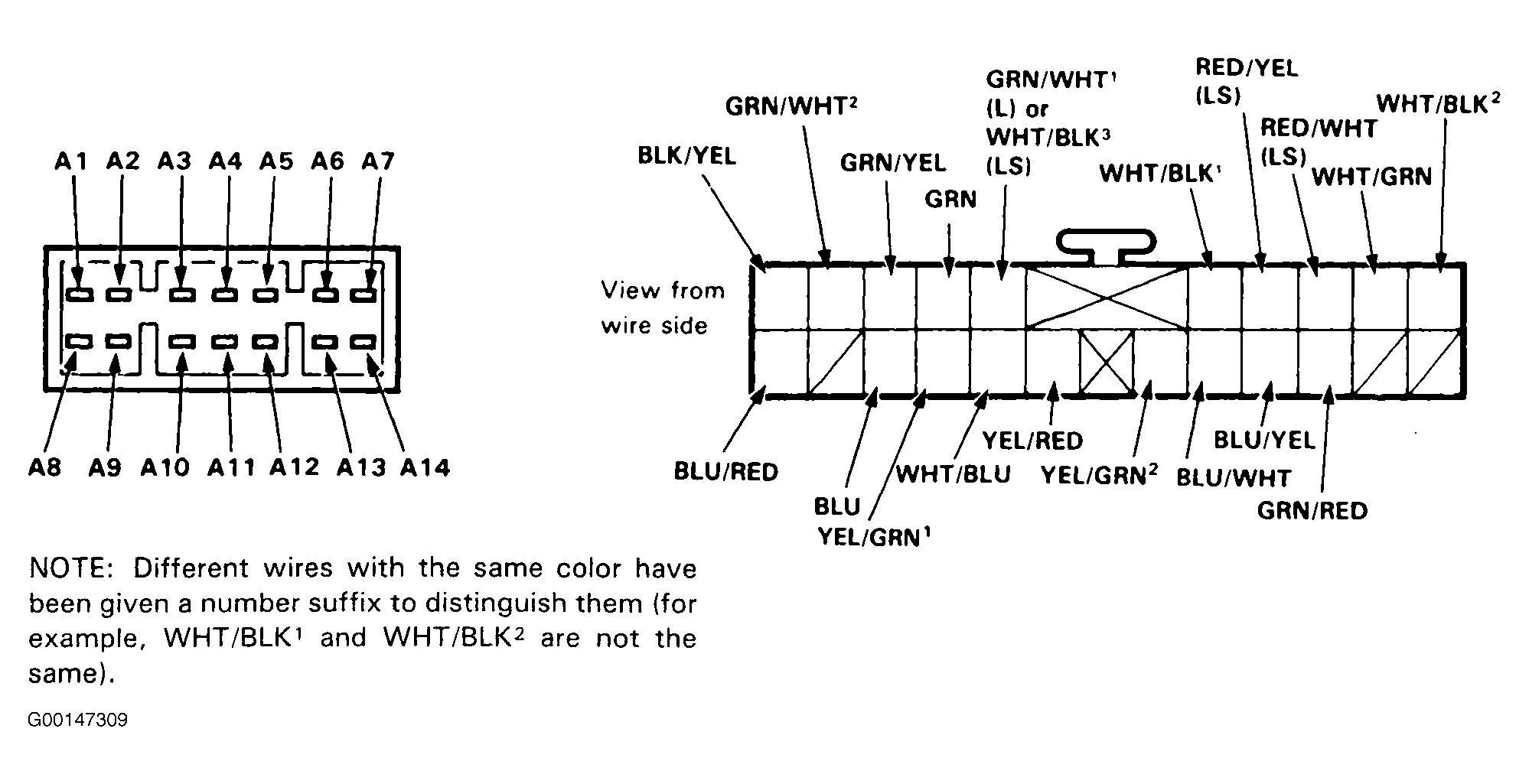

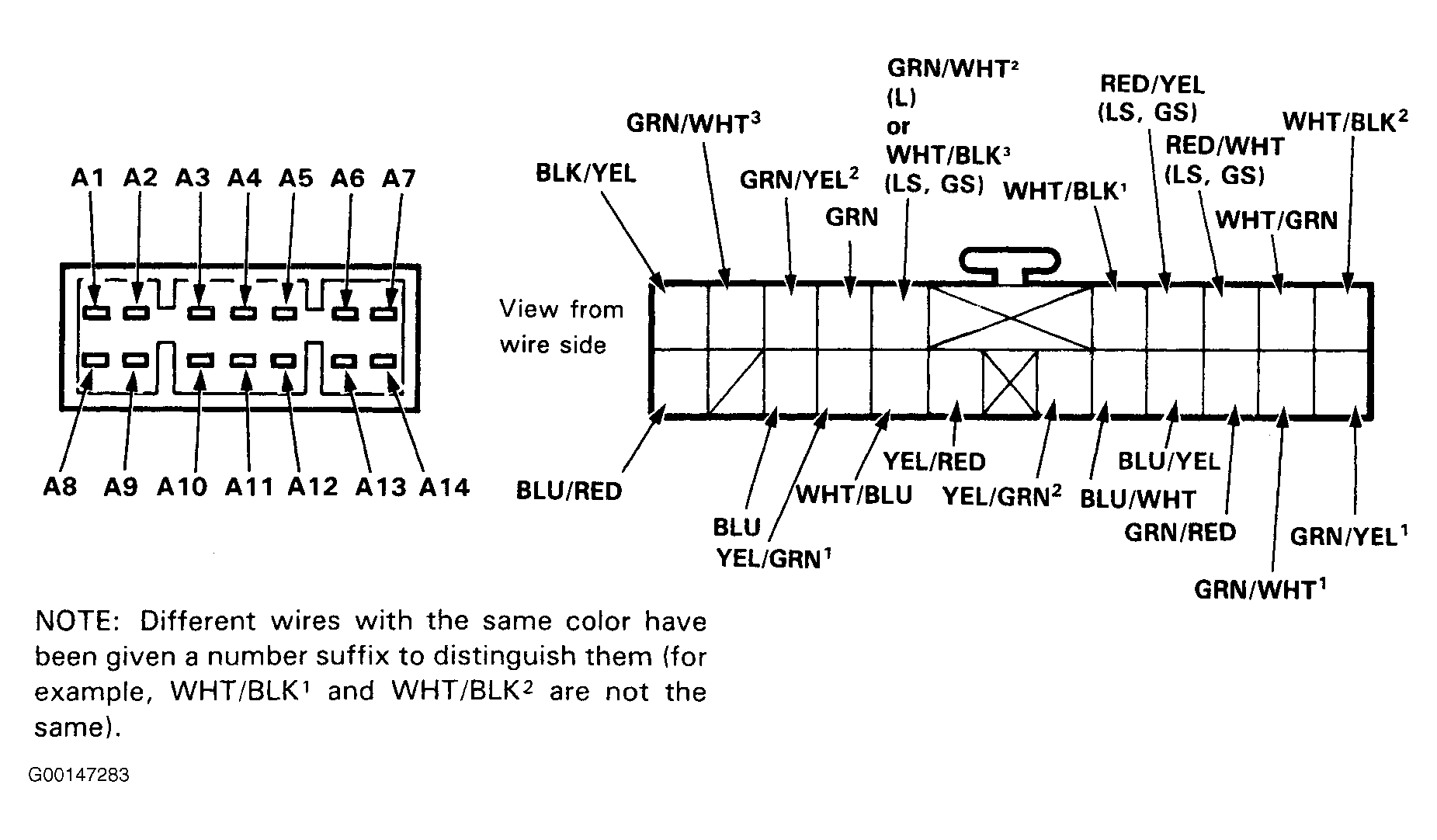

See
Figure
or
Figure
for connector terminal identification.

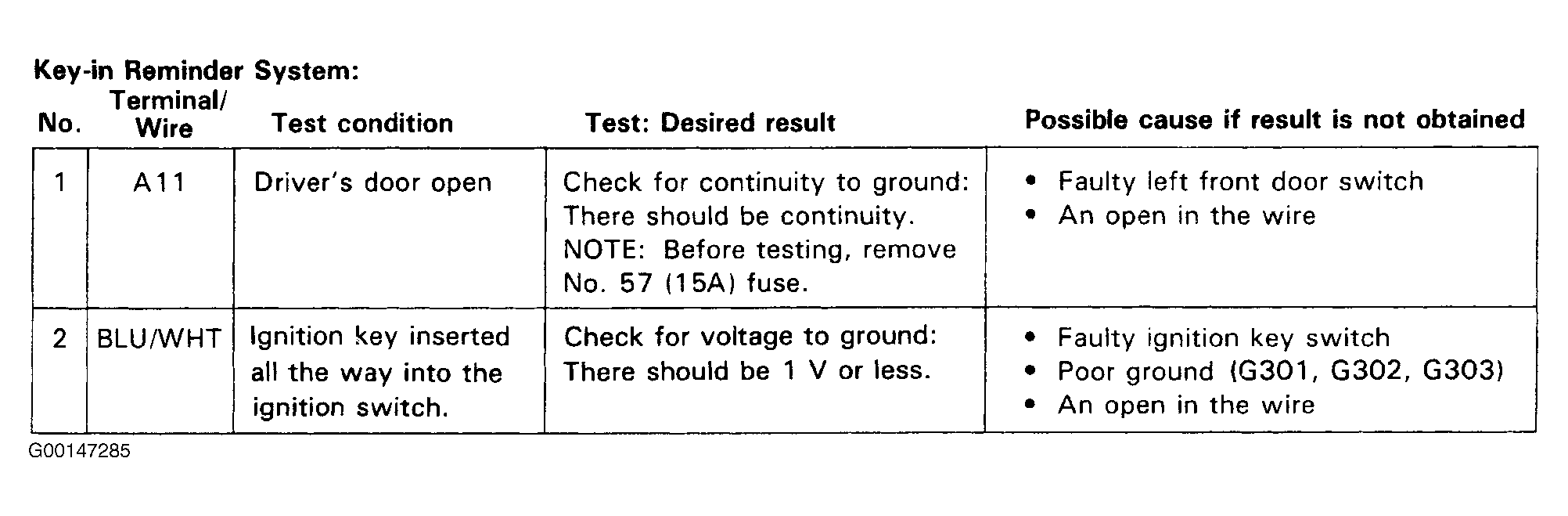

Fig 1: Key-In Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
