Ignition Control Module

  1. Inspect the connector terminals to be sure they are all making good contact. If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
  2. If the terminals look OK, perform ICM input tests.
  3. Disconnect the 8 pin connector from the ICM. See Fig 1 .

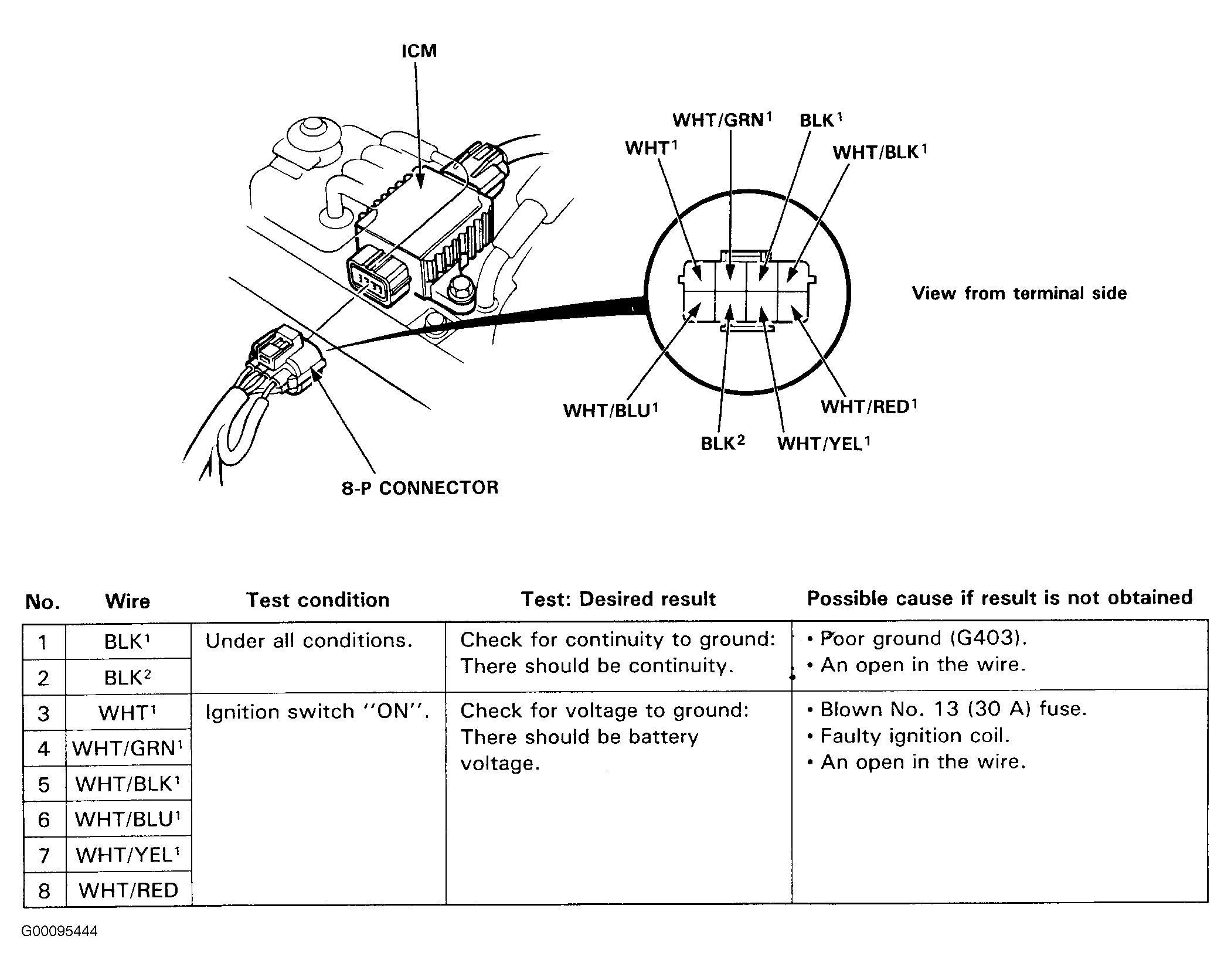

    Fig 1: Testing Ignition Control Module
    G00095444Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Perform circuit tests on the connector as shown in the chart. If any test indicates a problem, find and correct cause, then recheck the system.
  5. If all the input tests prove OK, replace ICM.
