Fuel Injector Resistor: Testing

  1. Disconnect the fuel injector resistor connector. See Fig 1 and Fig 2 .
  2. Check for resistance between each of the fuel injector resistor terminal Nos. 2, 3, 4, 6, 7 and 8 and the power terminal No. 5.
  3. Resistance should be 5-7 ohms.
  4. Replace the fuel injector resistor with a new one if any of the resistances are outside of the specification.

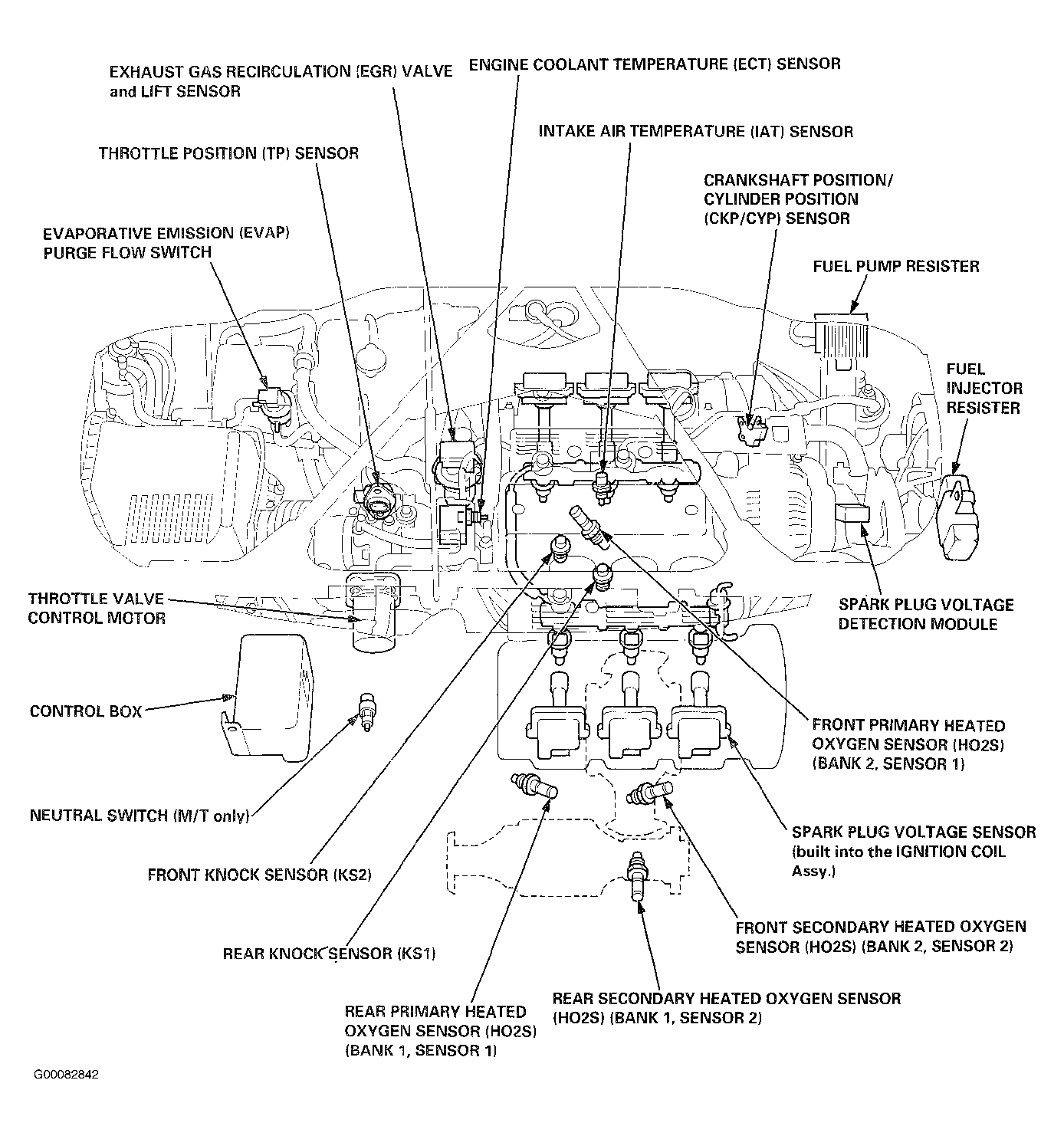

Fig 1: Locating Fuel Injector Resistor
G00082842Courtesy of AMERICAN HONDA MOTOR CO., INC.

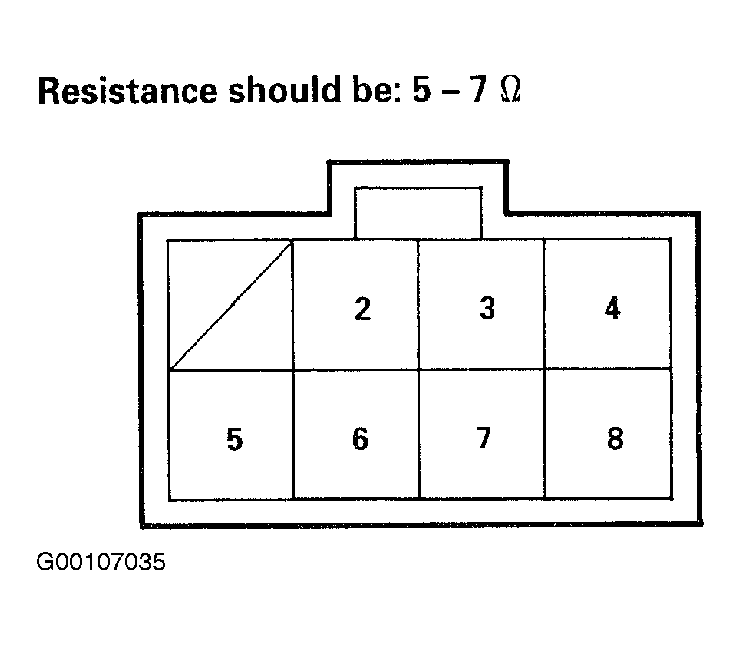

Fig 2: Identifying Fuel Injector Resistor Terminals
G00107035Courtesy of AMERICAN HONDA MOTOR CO., INC.
