Brake Switch Signal

This signals the ECM when the brake pedal is engaged. For troubleshooting of the brake switch signal circuit, see Fig 1 .

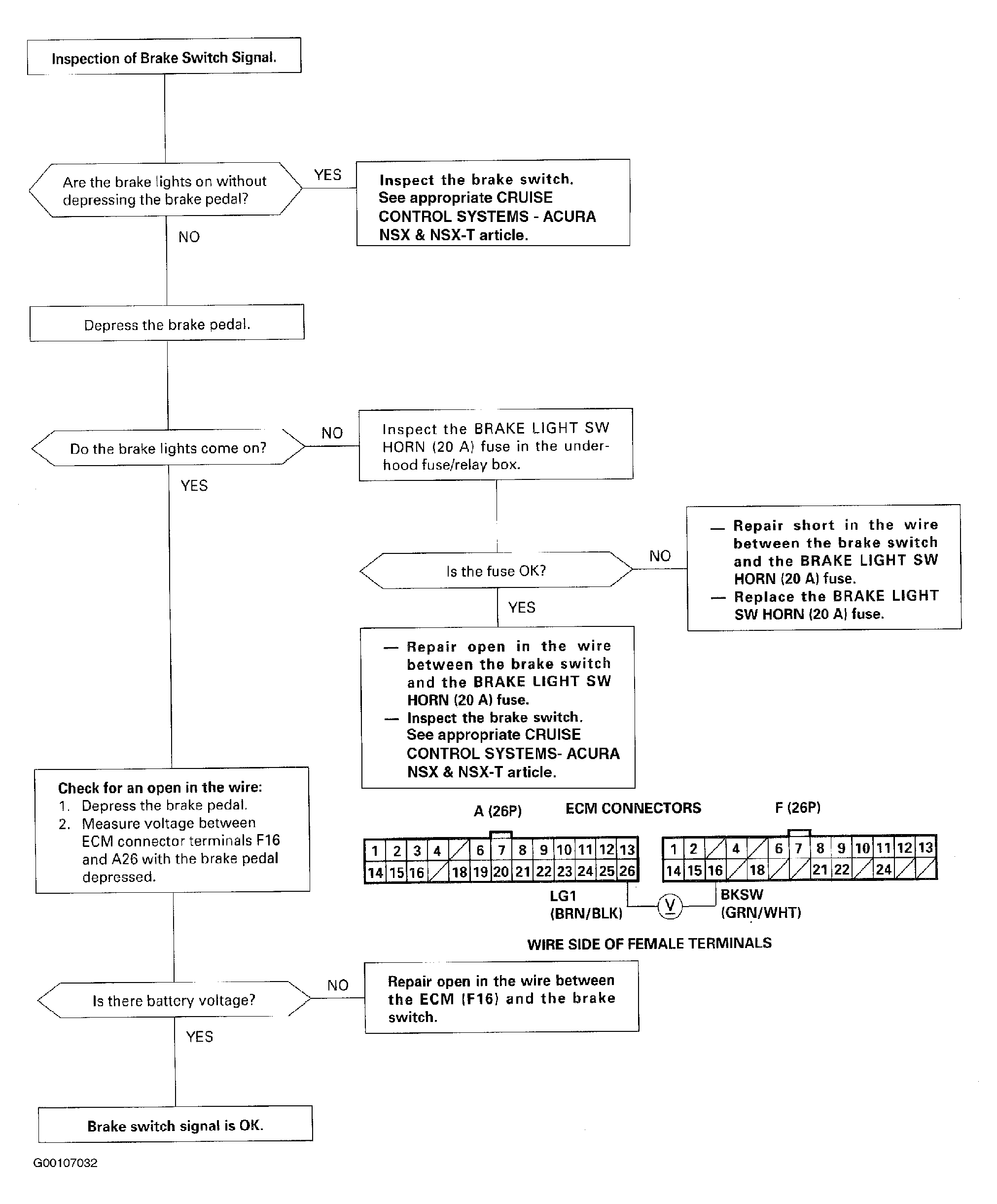

Fig 1: Brake Switch Signal Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
