Connector Identification: Notes

Fig 1: Identifying Data Link Connector (DLC) Connector Terminals
G95A33274Courtesy of AMERICAN HONDA MOTOR CO., INC.

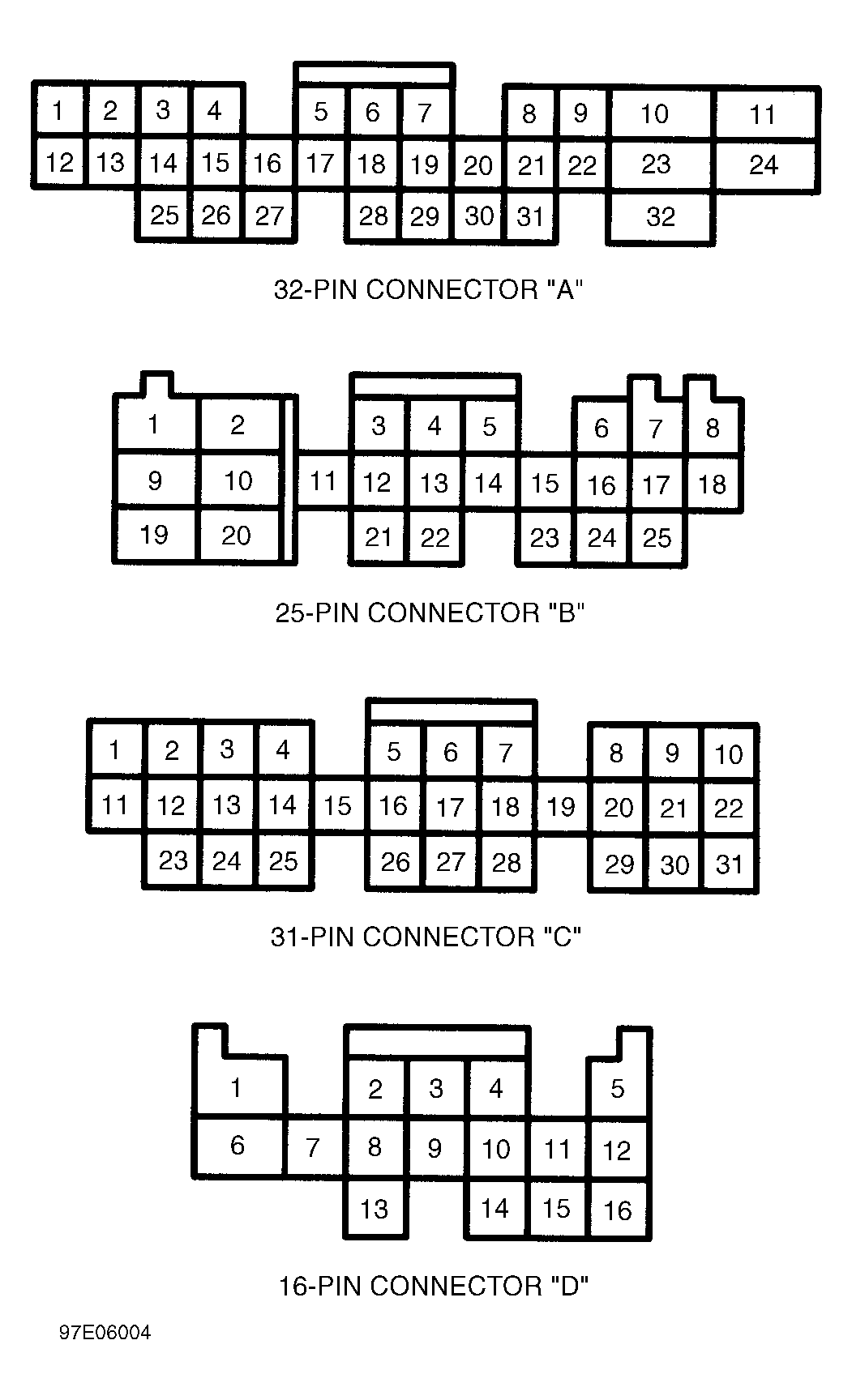

Fig 2: PCM Harness Connector Terminal Identification
G97E06004Courtesy of AMERICAN HONDA MOTOR CO., INC.
