PGM-FI Control System

The ECM is located behind the passenger seat under the bulkhead panels. For testing, see Fig 2 -Fig 5 .

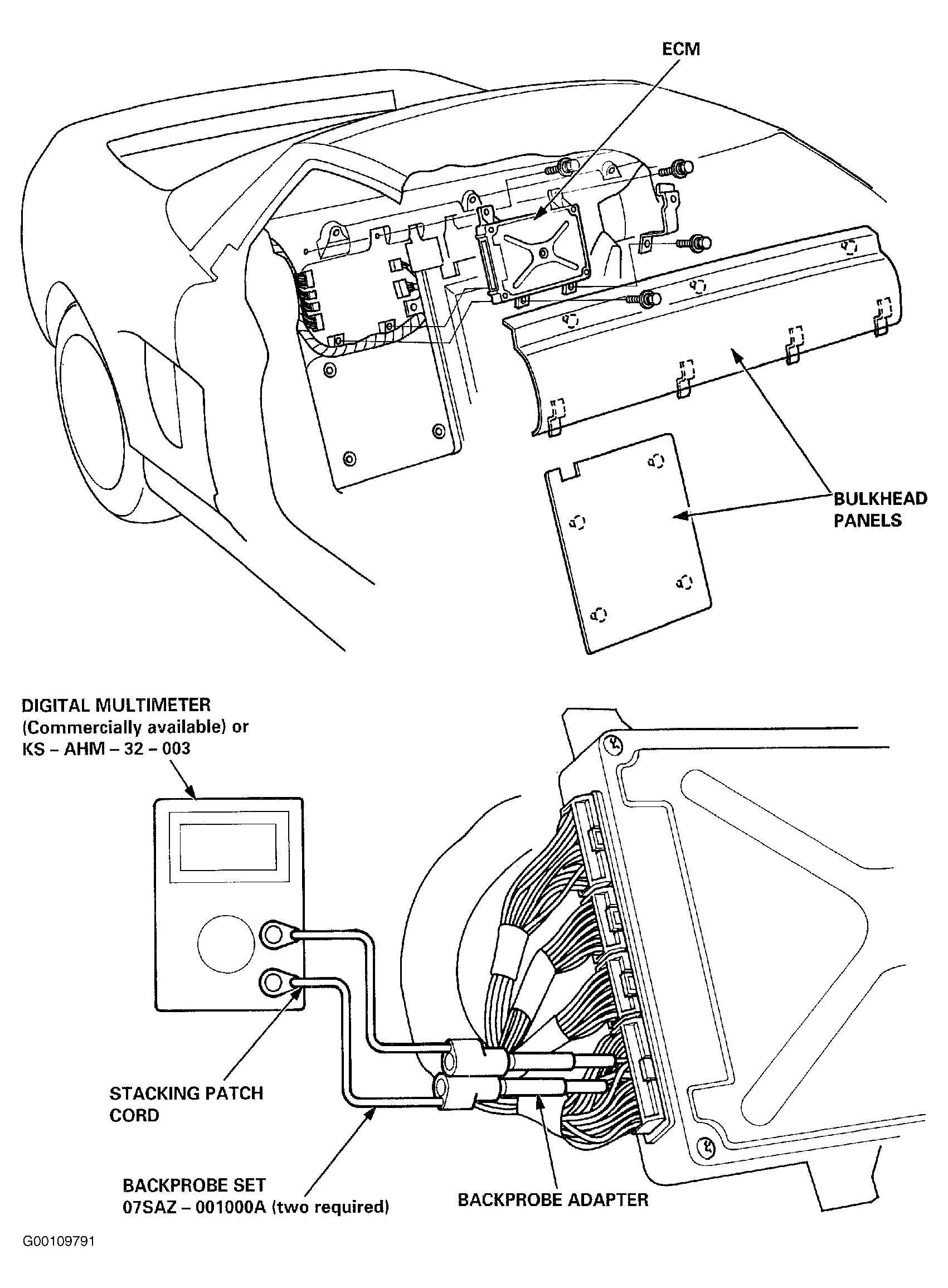

Fig 1: Locating ECM & Backprobing Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.

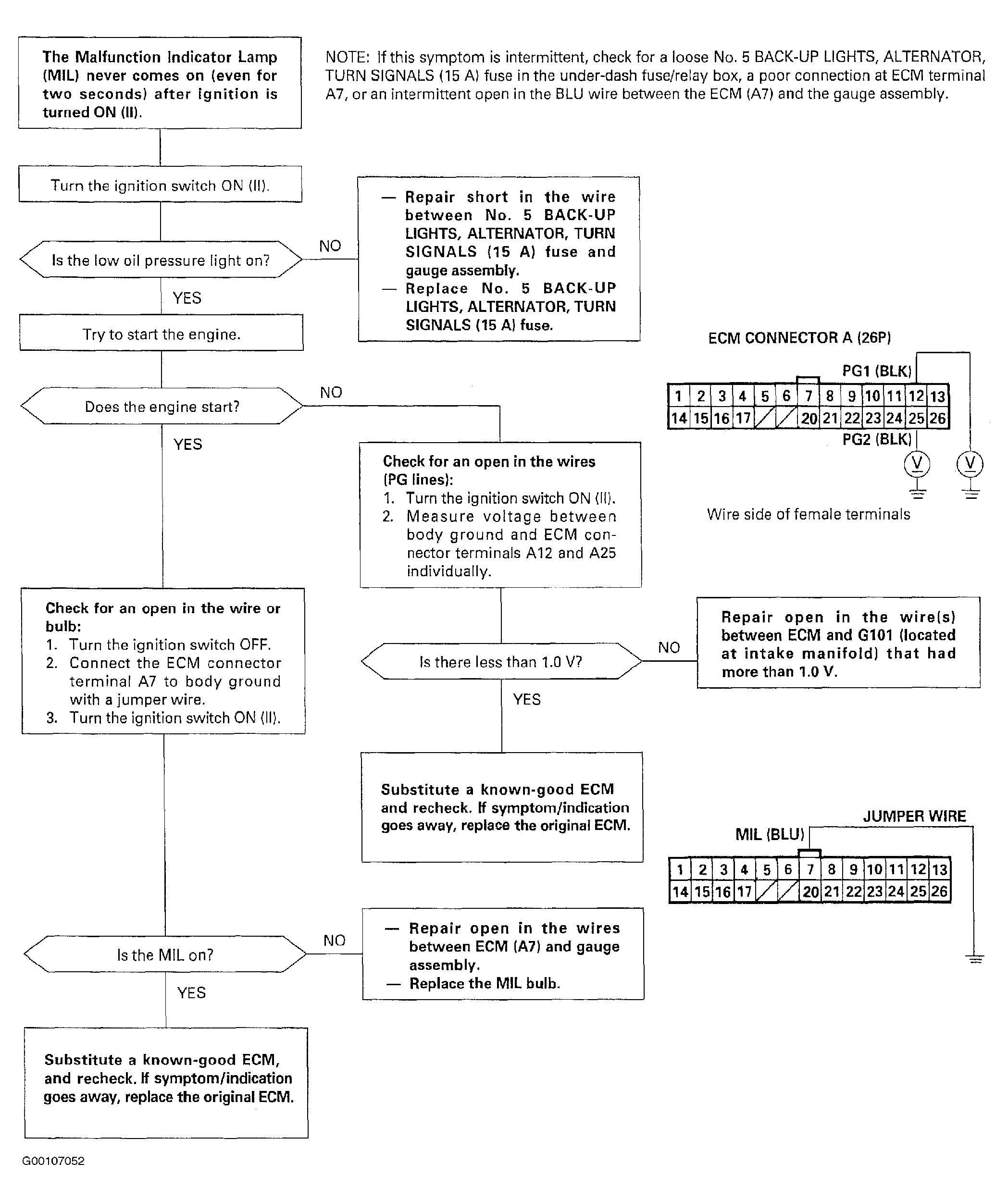

Fig 2: Engine Control Module (ECM) Diagnostic Flow Chart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

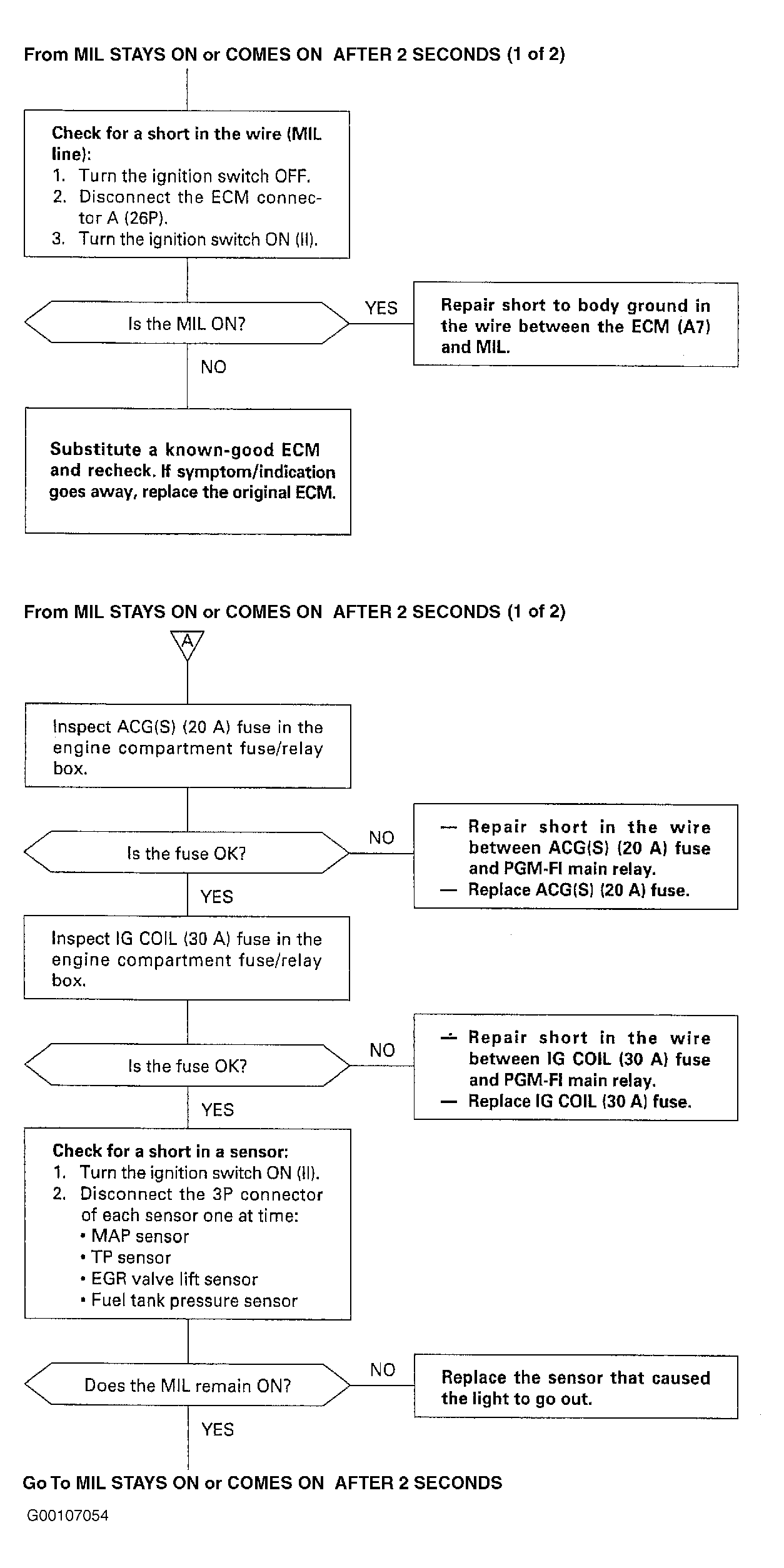

Fig 3: Engine Control Module (ECM) Diagnostic Flow Chart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

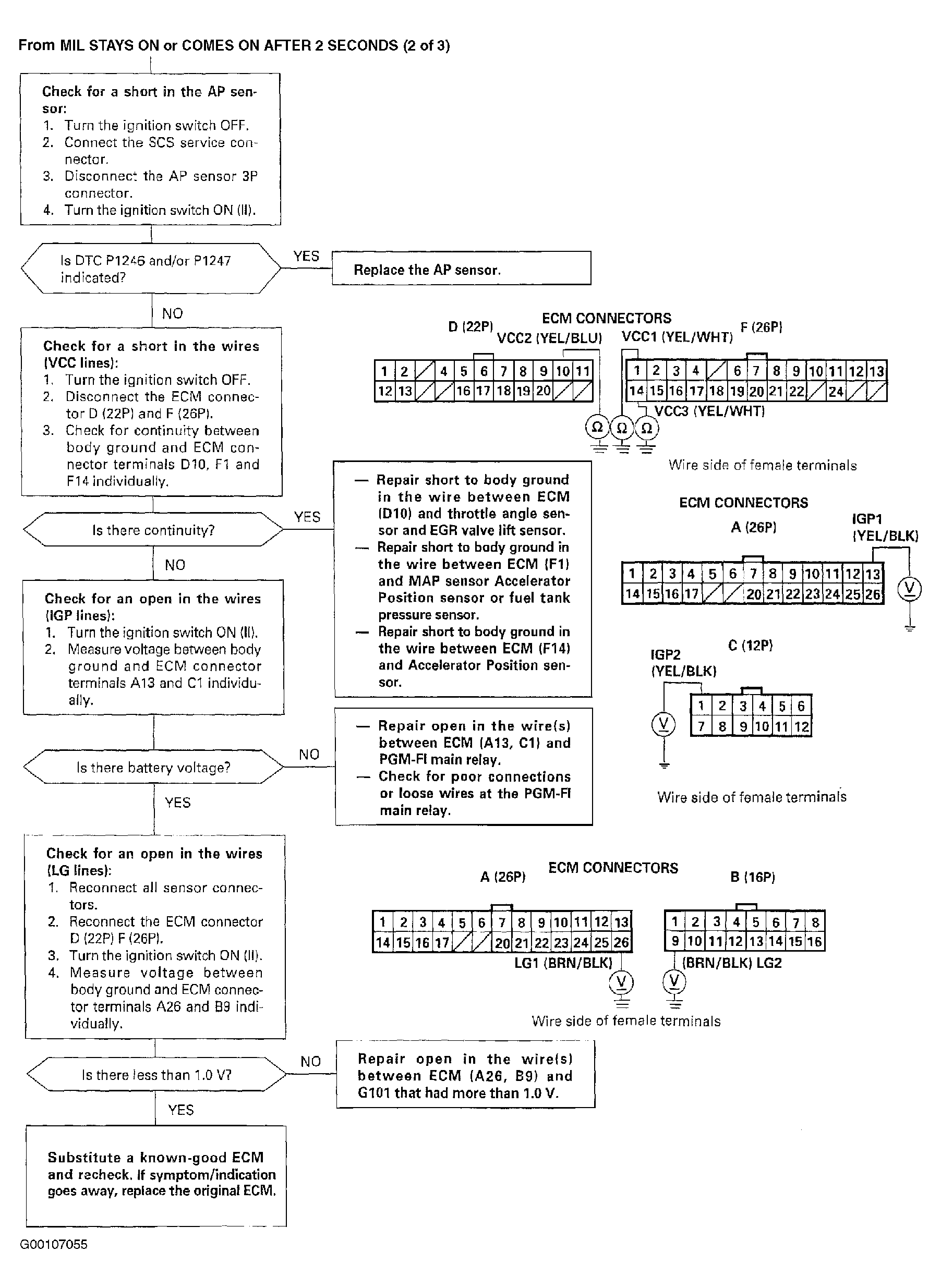

Fig 4: Engine Control Module (ECM) Diagnostic Flow Chart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

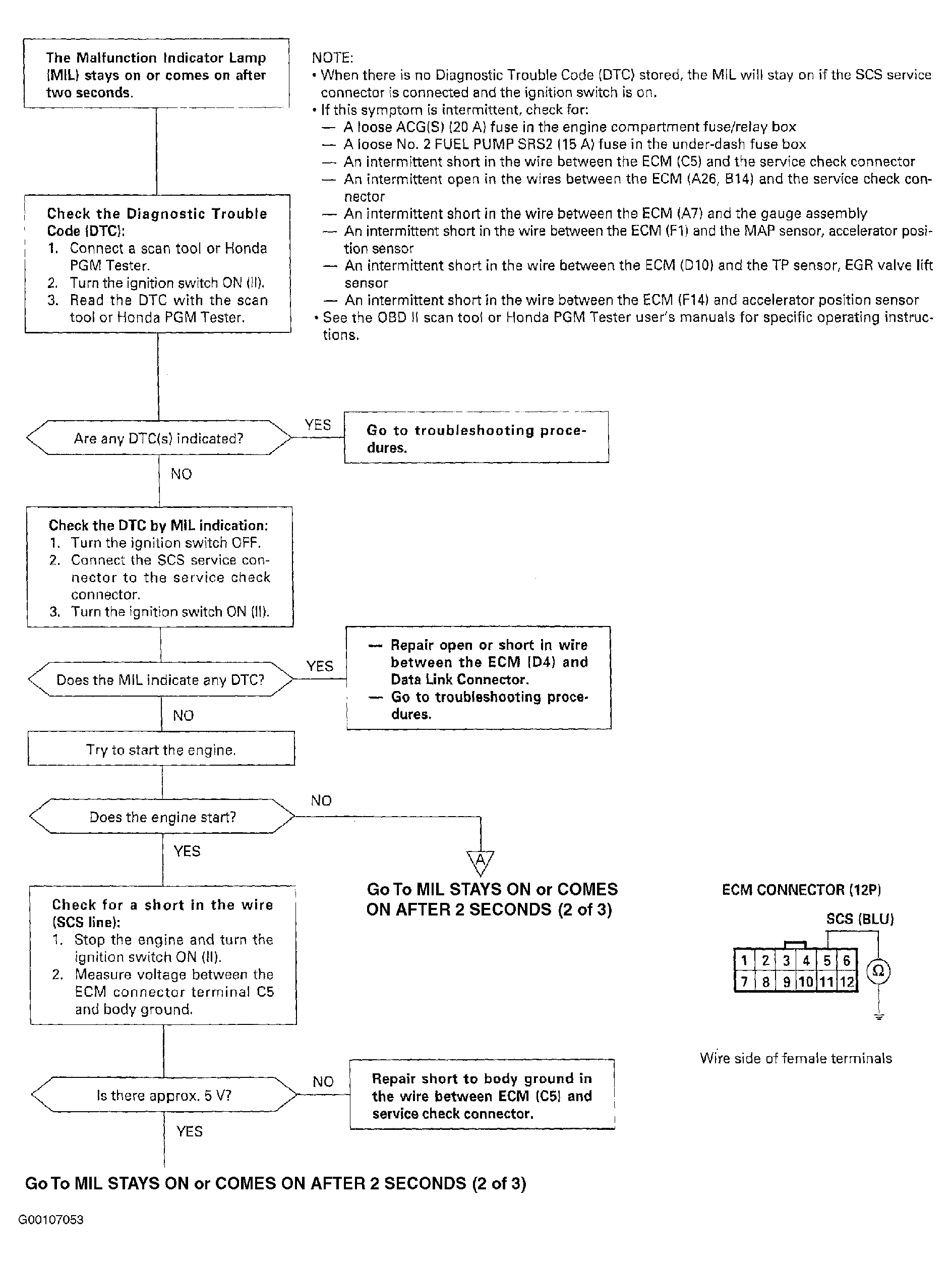

Fig 5: Engine Control Module (ECM) Diagnostic Flow Chart (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
