Clutch Switch Signal

This signals the ECM when the clutch is engaged. For troubleshooting of the clutch switch signal circuit, see Fig 1 and Fig 2 . Clutch switch is located in front luggage compartment. See Figure .

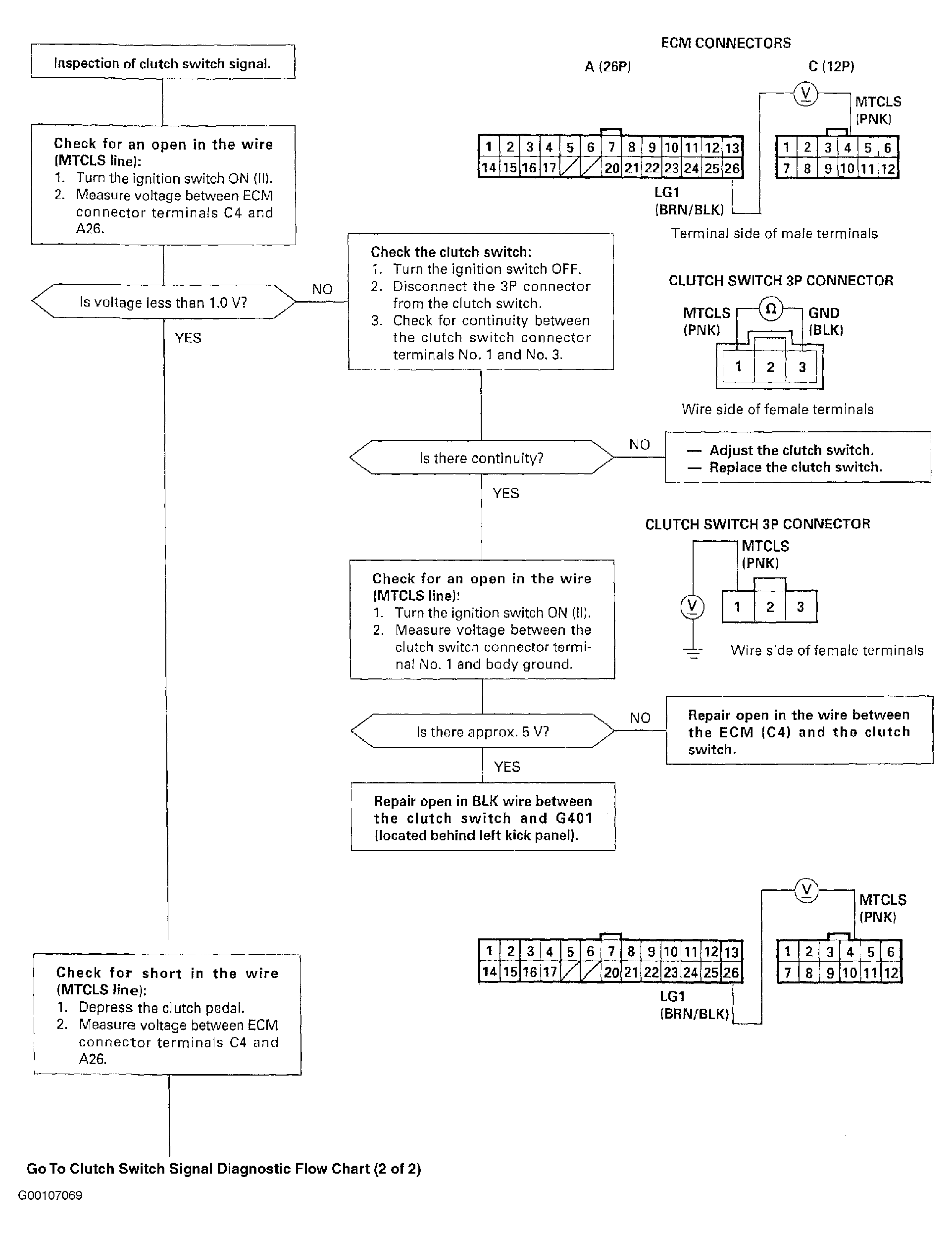

Fig 1: Clutch Switch Signal (M/T) Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

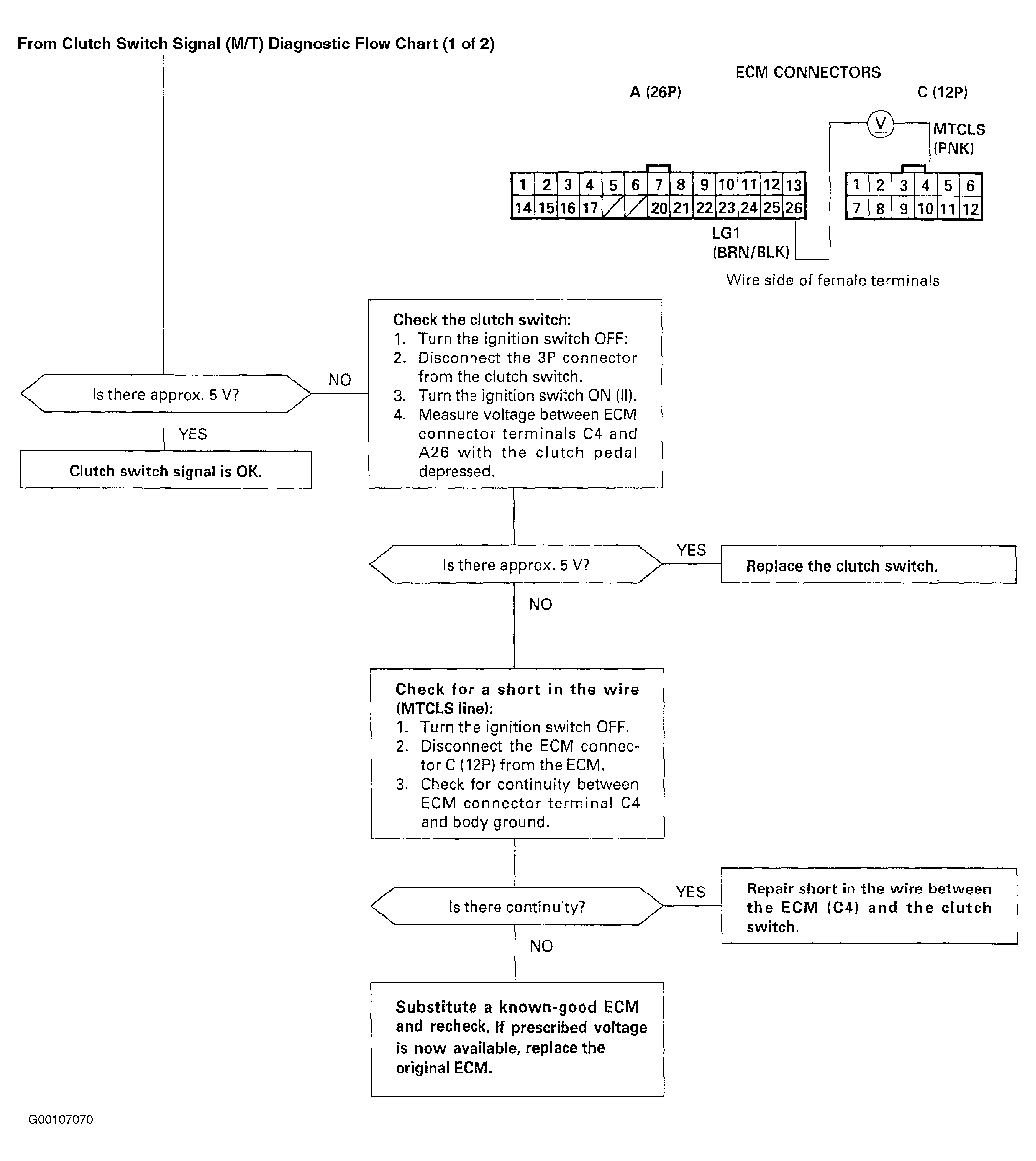

Fig 2: Clutch Switch Signal (M/T) Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
