M/T Neutral Position Switch Signal

This signals the ECM when the transmission is in Neutral. For troubleshooting of the M/T neutral position switch signal circuit, see Fig 2 .M/T neutral switch is located on bottom of transaxle, below the slave cylinder. See Fig 1 .

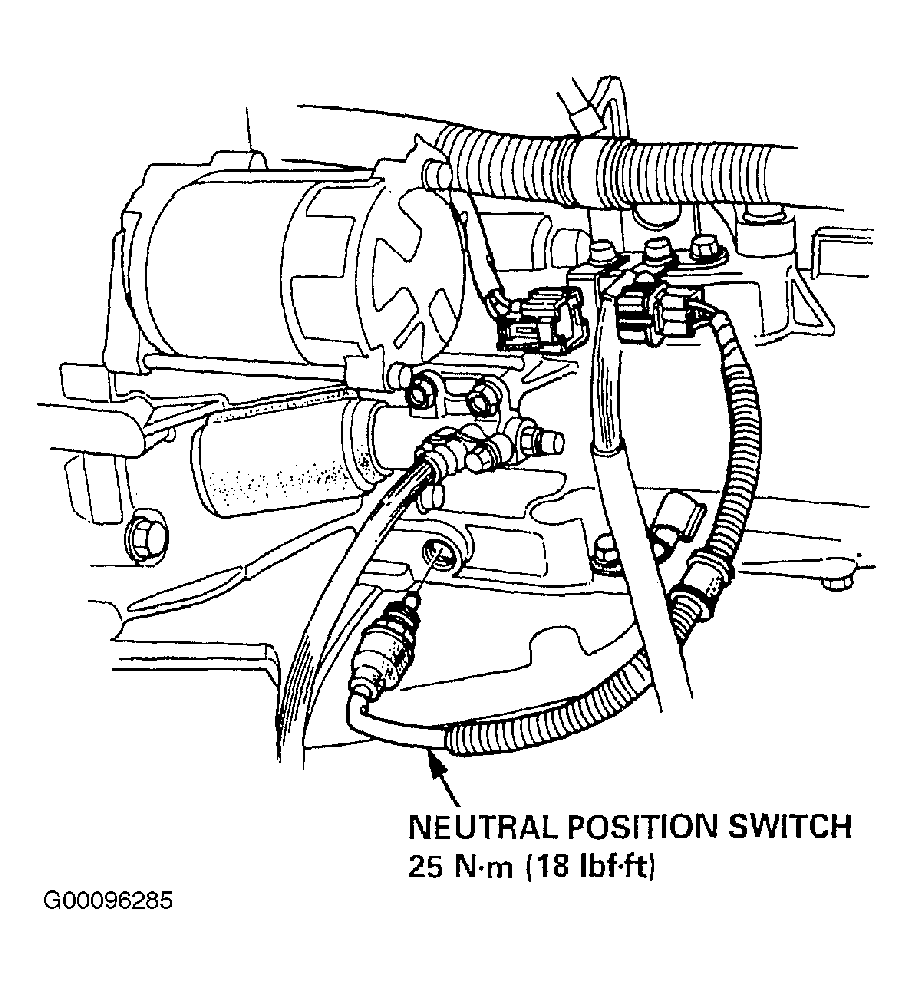

Fig 1: Locating Neutral Switch Signal (M/T)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

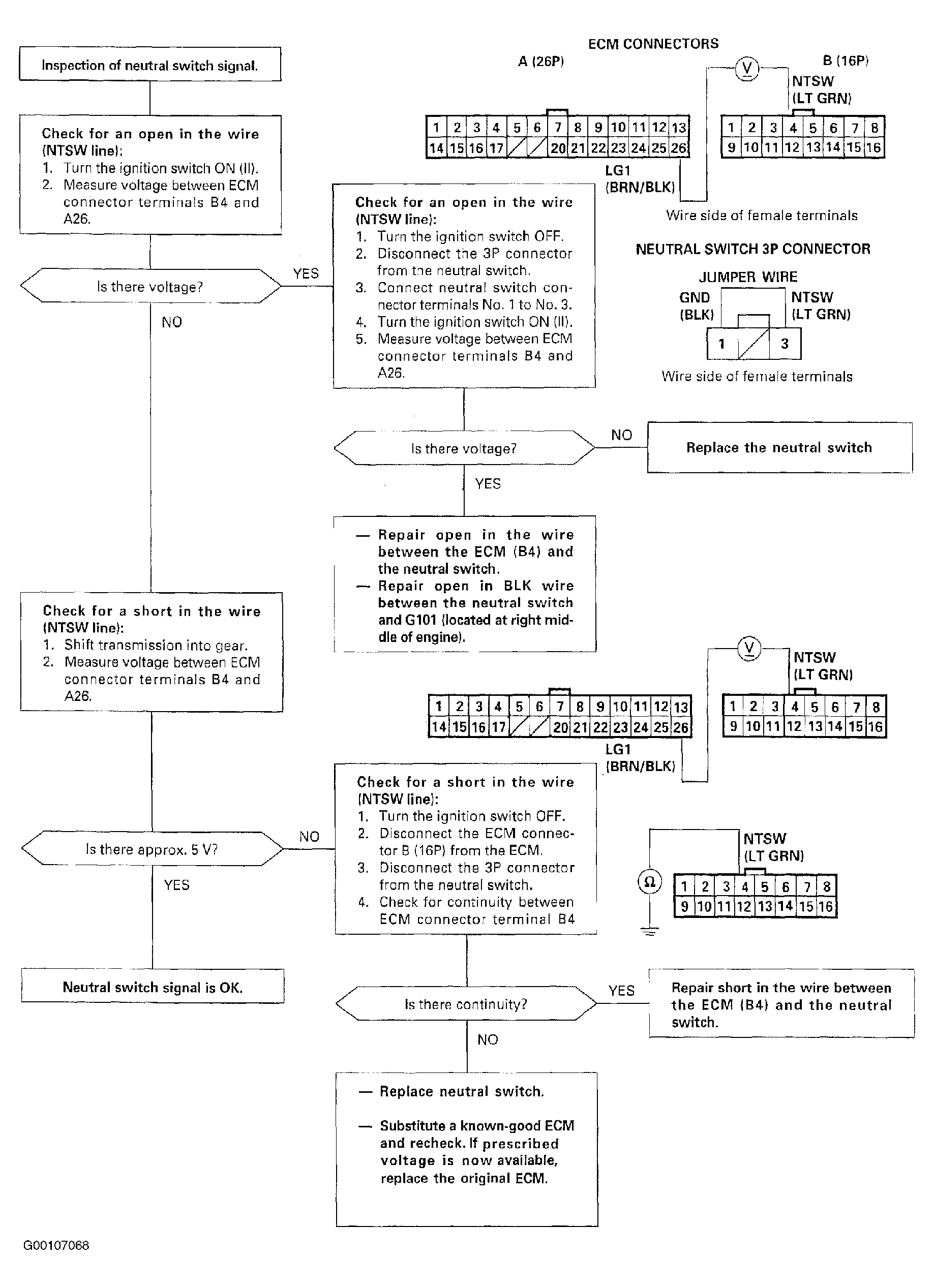

Fig 2: Neutral Switch Signal (M/T) Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
