Connector Identification

NOTE: For connector identification, refer to illustrations. See Fig 1 and Fig 2 .

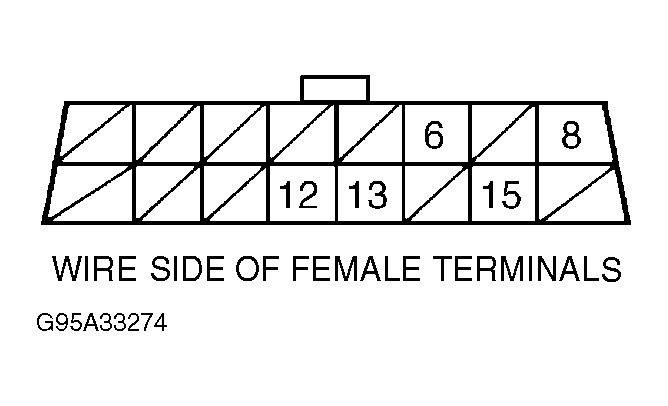

Fig 1: Identifying Data Link Connector (DLC) Terminals
G95A33274Courtesy of AMERICAN HONDA MOTOR CO., INC.

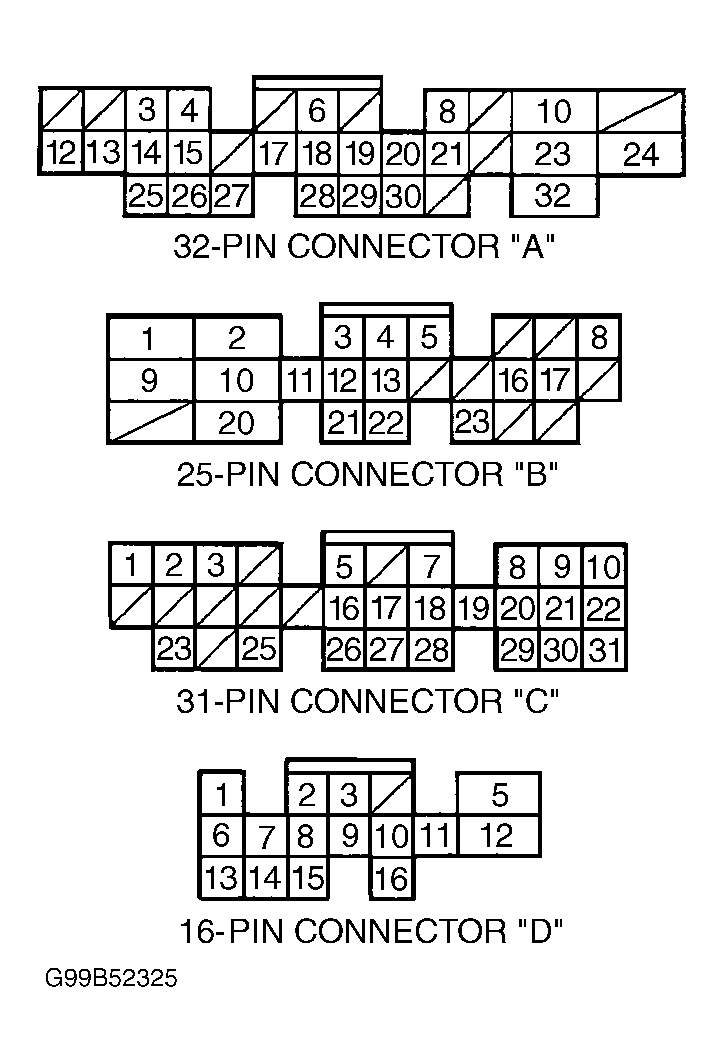

Fig 2: PCM Harness Connector Terminal Identification
G99B52325Courtesy of AMERICAN HONDA MOTOR CO., INC.
