Home >> Acura >> 2002 >> 1.7EL Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Coil Removal/Installation

Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A), then remove the ignition coils (B).

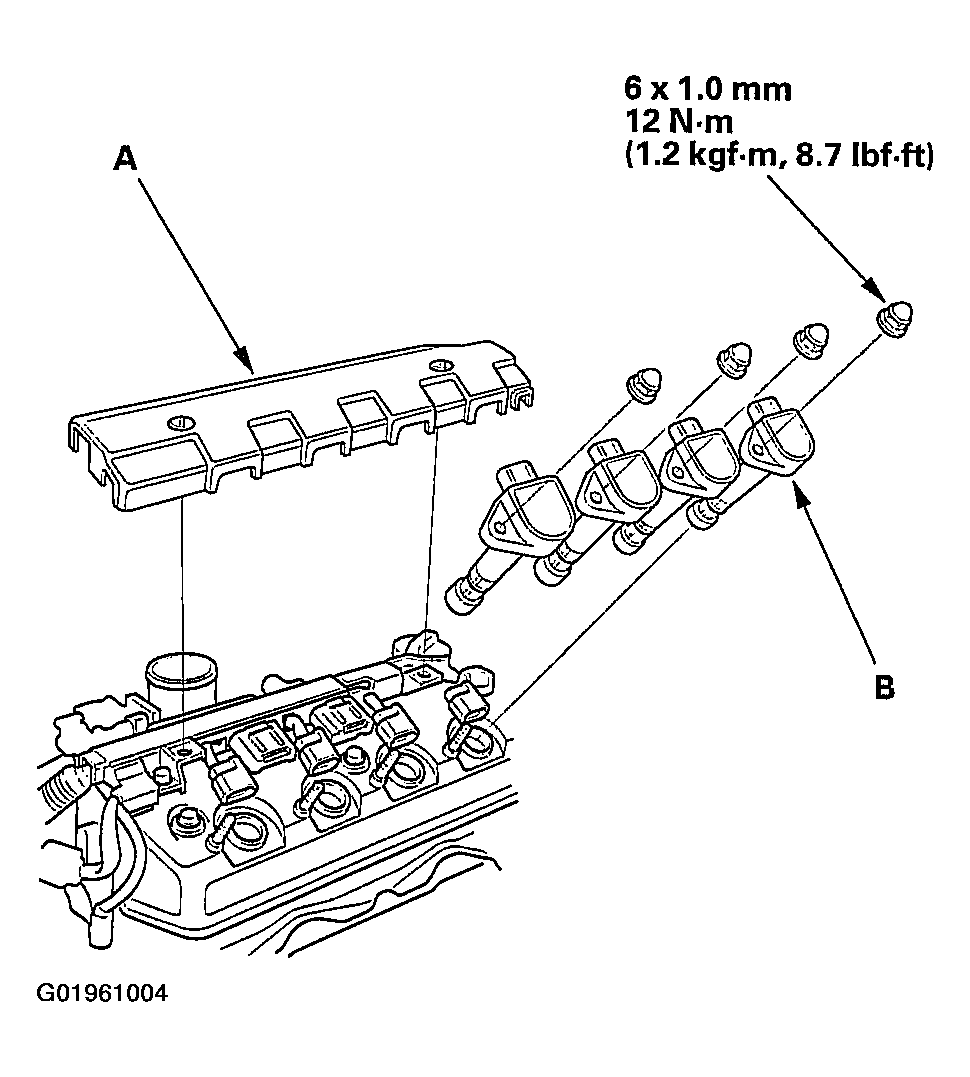

    Fig 1: Removing/Installing Ignition Coil Cover & Ignition Coils
    G01961004
  2. Install the ignition coils in the reverse order of removal.
