Home >> Acura >> 2002 >> 1.7EL Automatic >> Repair and Diagnosis >> Engine Performance >> System >> EVAP System >> Fuel Tank Vapor Control Valve Replacement

Fuel Tank Vapor Control Valve Replacement

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

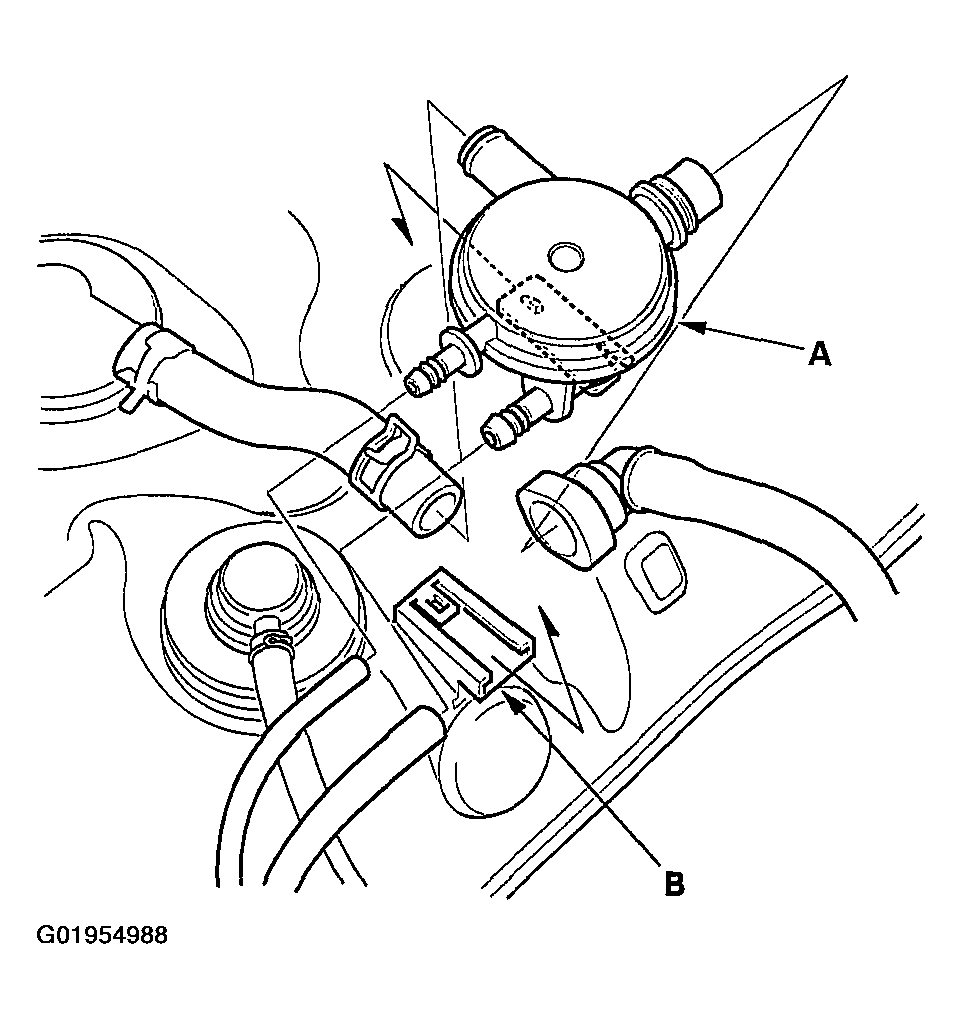

    Fig 1: Removing Fuel Tank Vapor Control Valve From Fuel Tank
    G01954988
  3. Install the fuel tank vapor control valve.
  4. Install the fuel tank (see FUEL TANK REPLACEMENT ).
