Home >> Acura >> 2002 >> RSX Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Coil Removal/Installation

Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

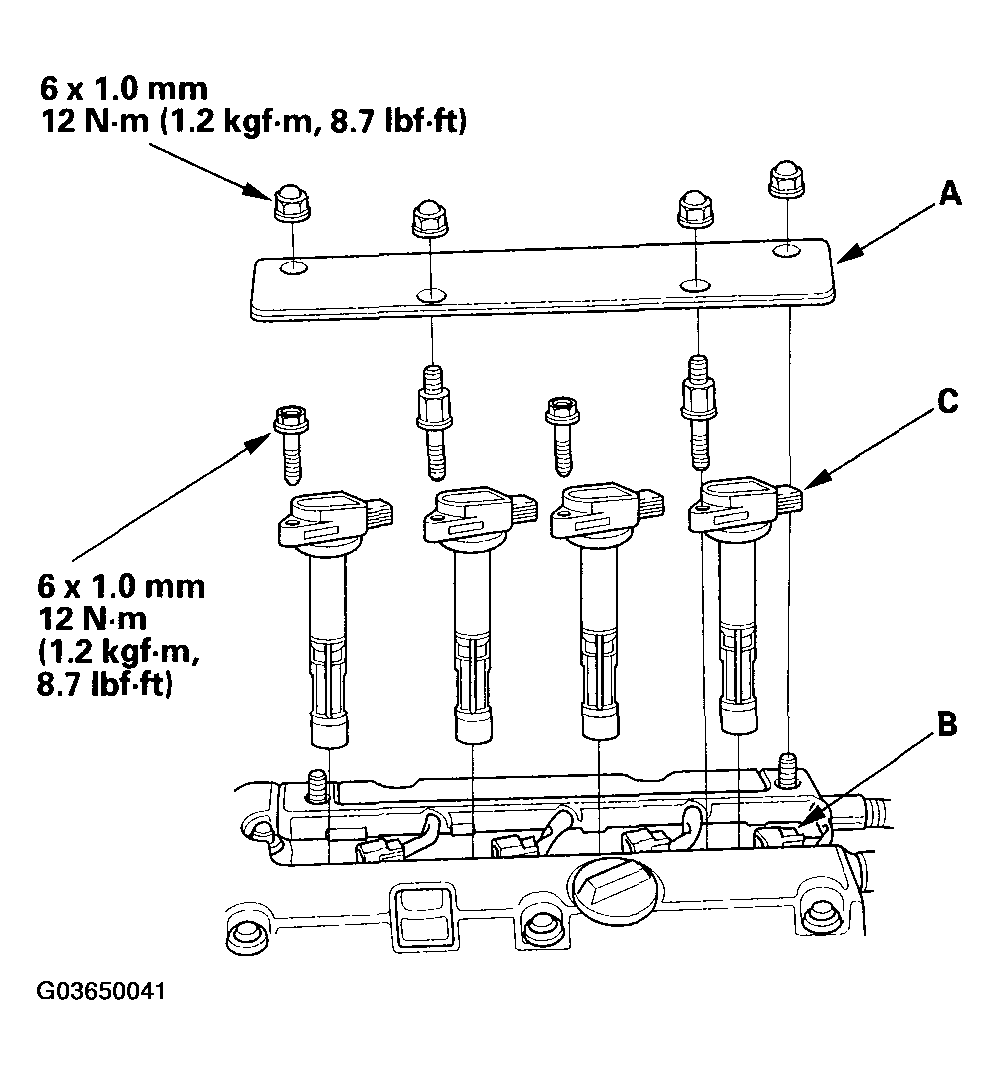

    Fig 1: Removing Ignition Coil Cover, Disconnecting Ignition Coil Connectors And Ignition Coils With Torque Specifications
    G03650041Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ignition coils in the reverse order of removal.
