Repair and Diagnosis: Electrical: Starters: Overhaul: Starter: Disassembly

For disassembly use exploded view of starter, see Fig 1 .

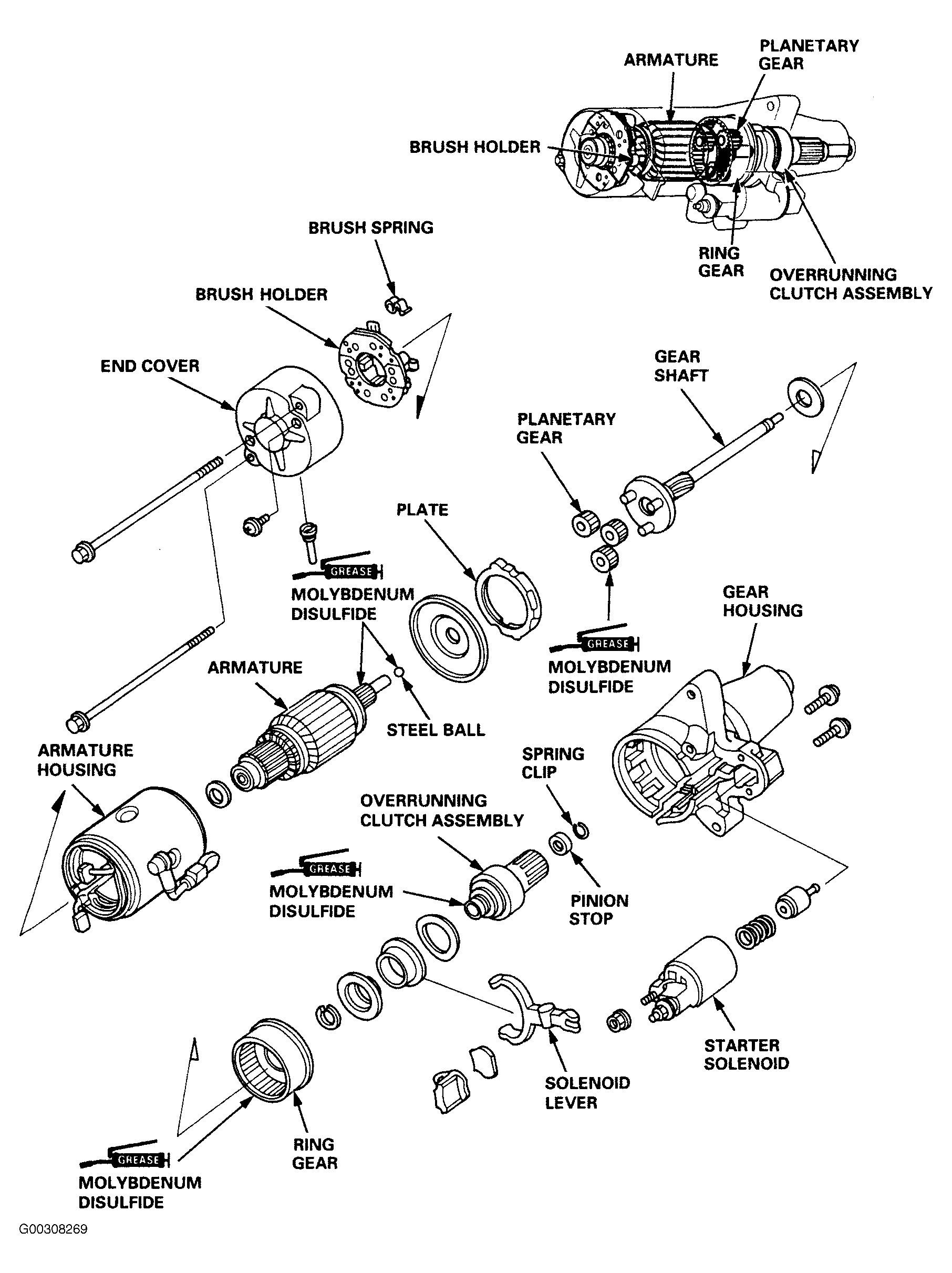

Fig 1: Exploded View Of Starter

Courtesy of AMERICAN HONDA MOTOR CO., INC.
