Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1 -Fig 15 .

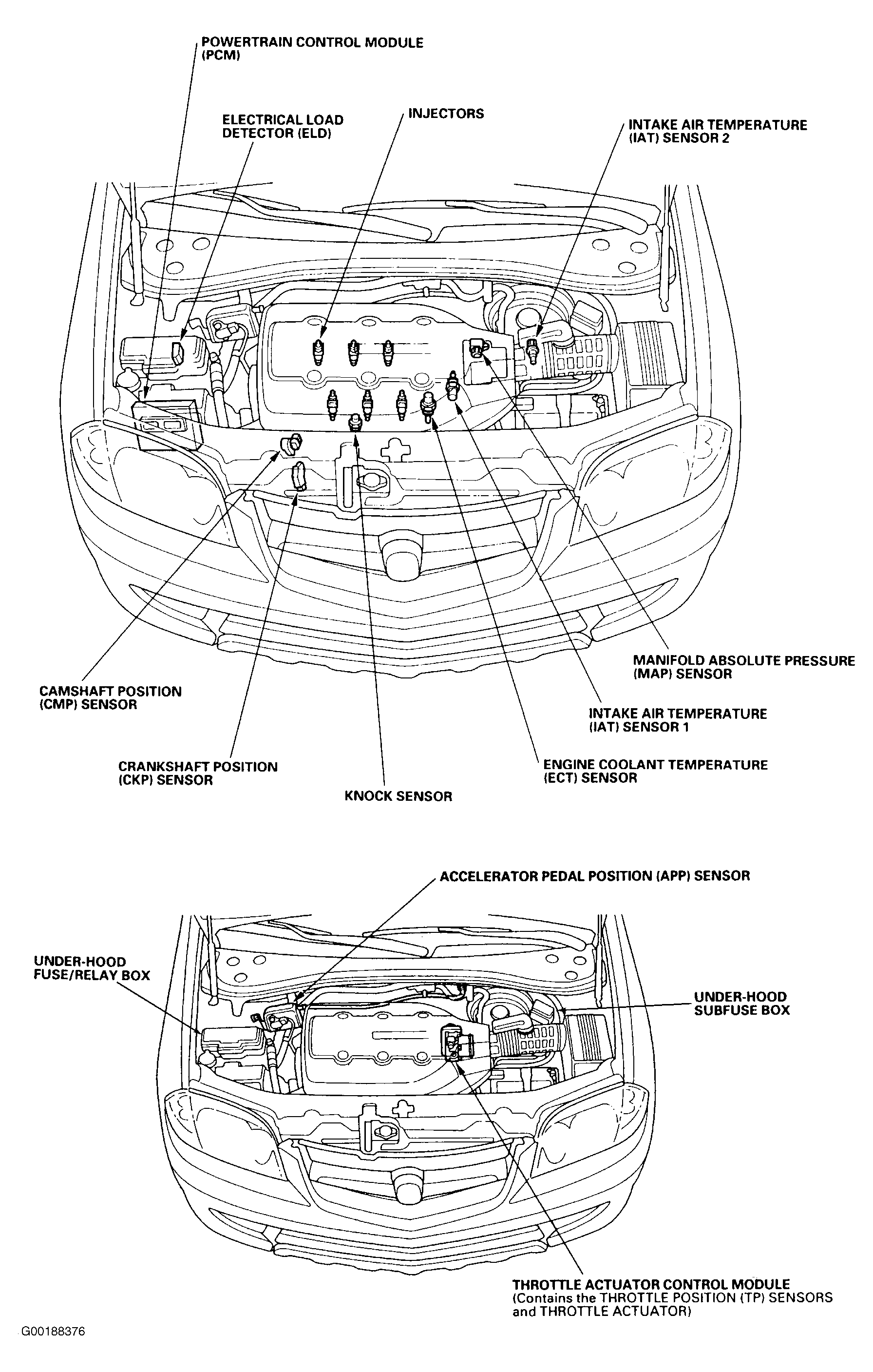

Fig 1: Locating Engine Performance-Related Components (MDX - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

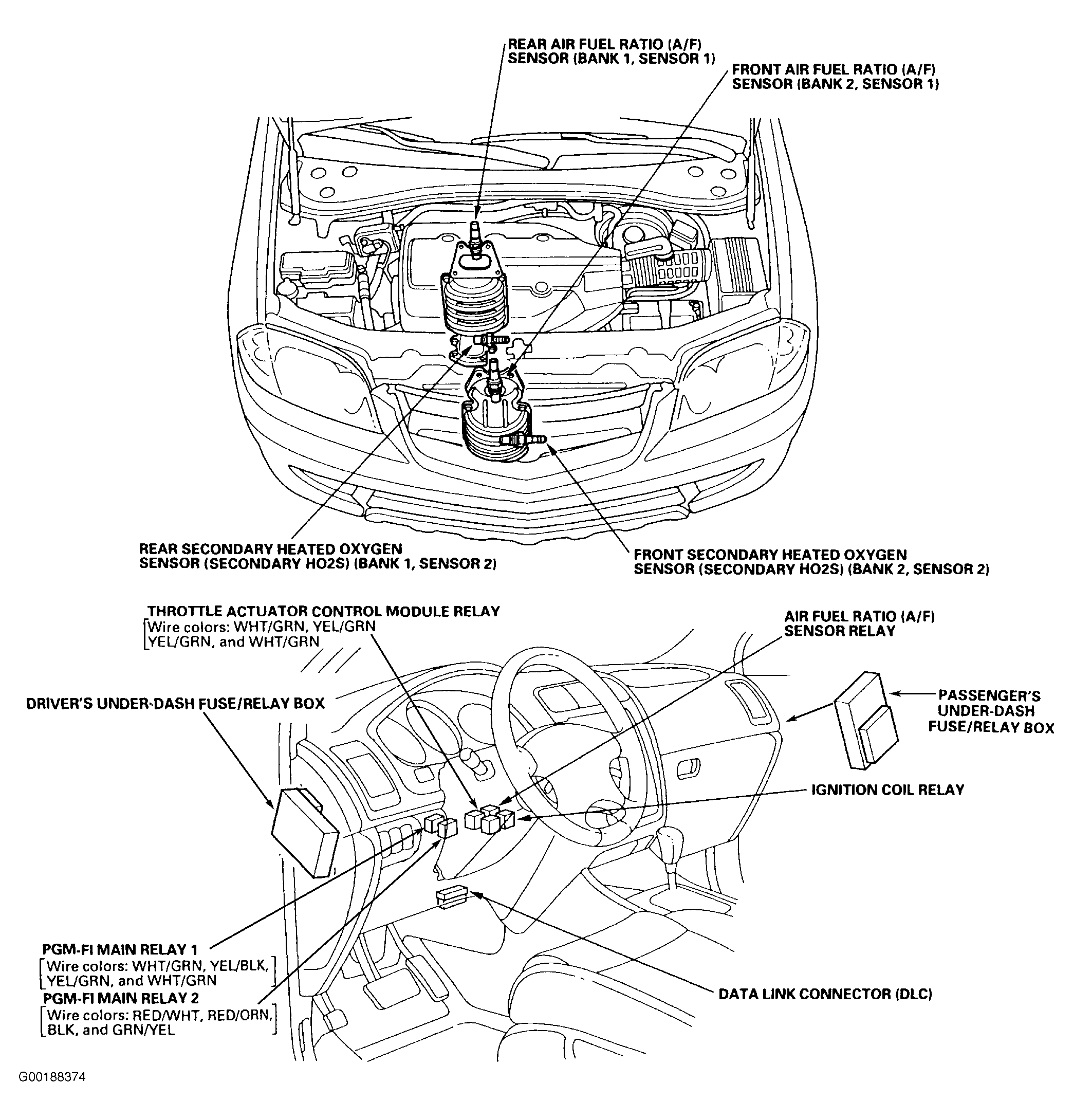

Fig 2: Locating Engine Performance-Related Components (MDX - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

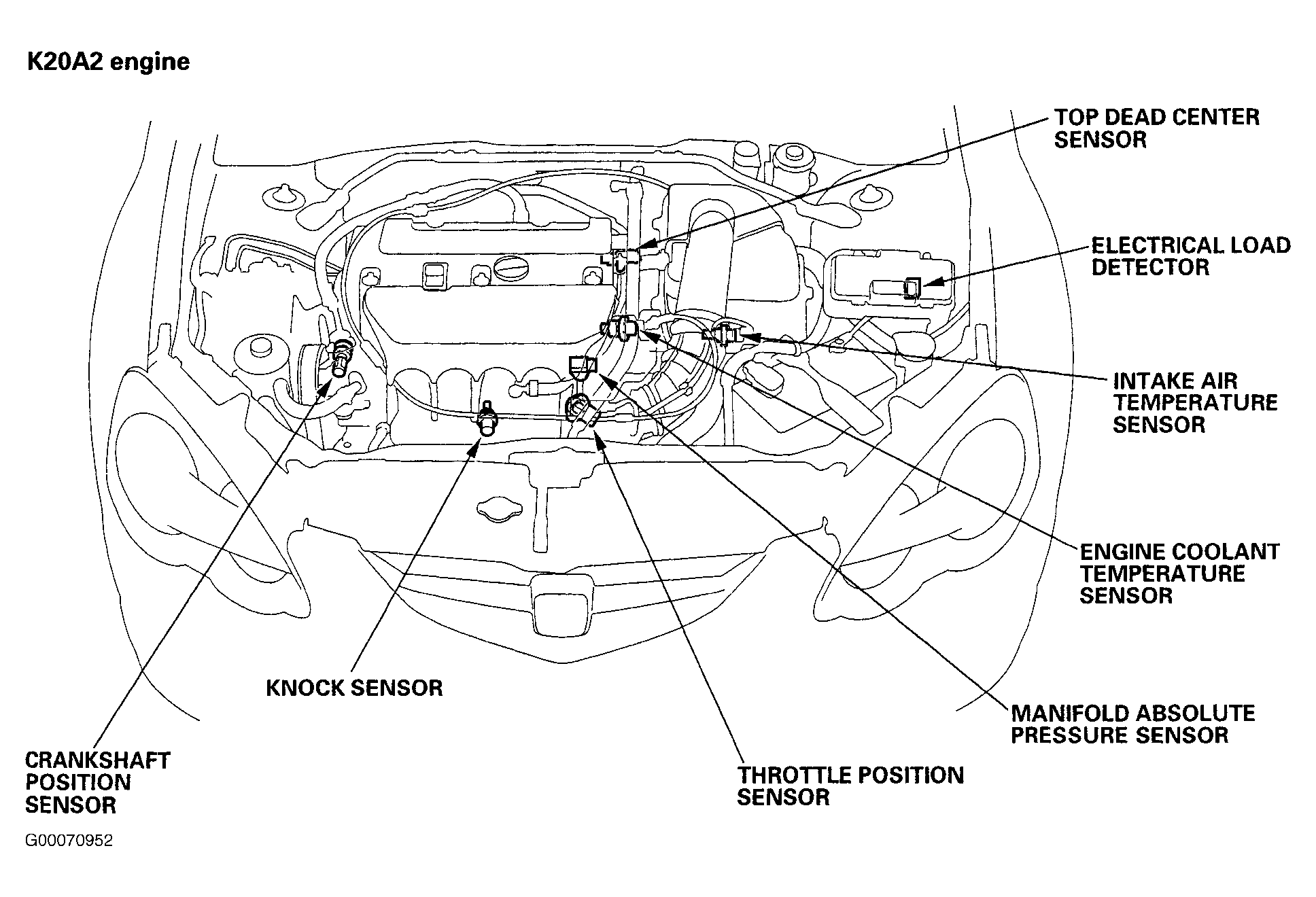

Fig 3: Locating Engine Performance-Related Components (RSX - 1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

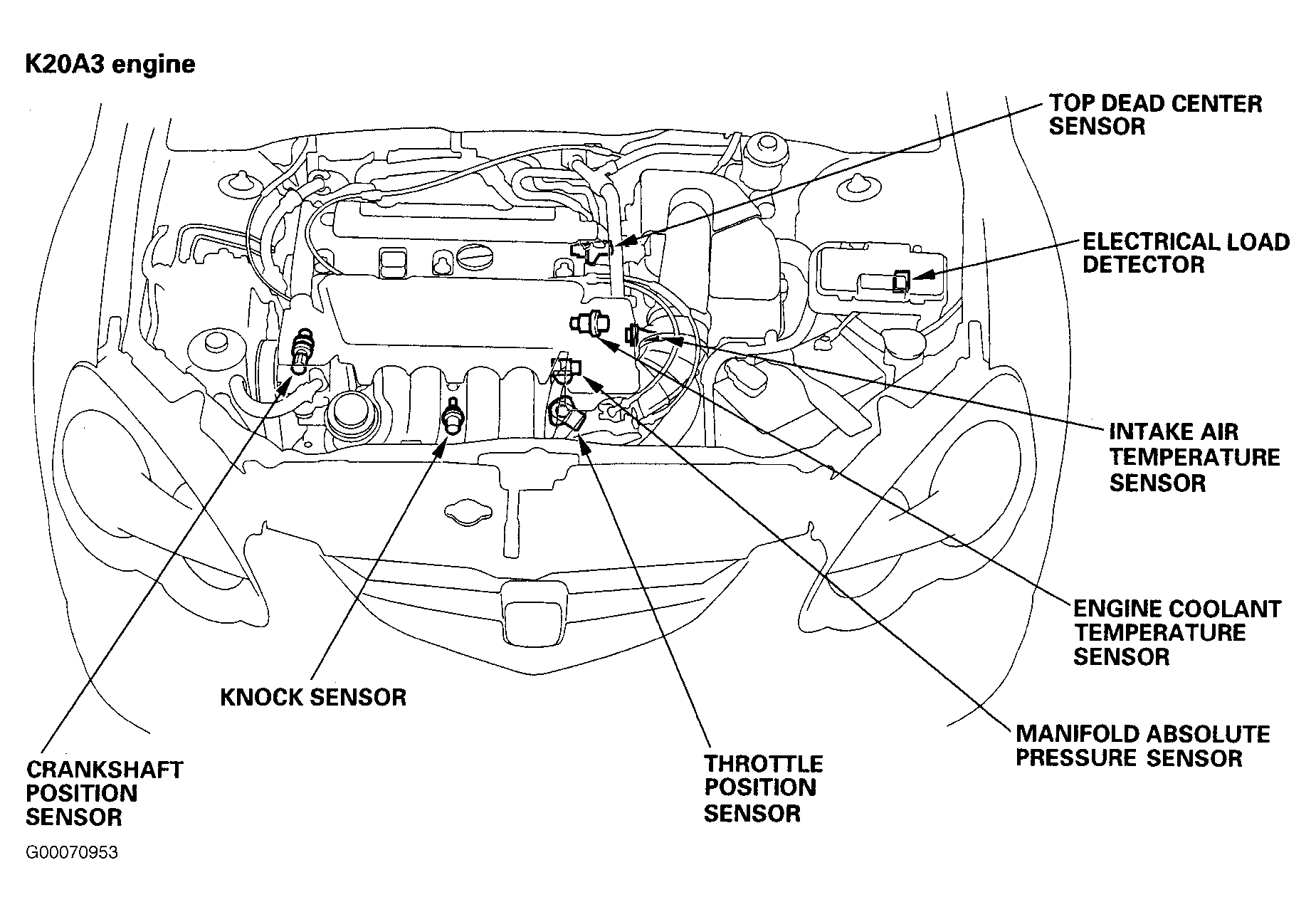

Fig 4: Locating Engine Performance-Related Components (RSX - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

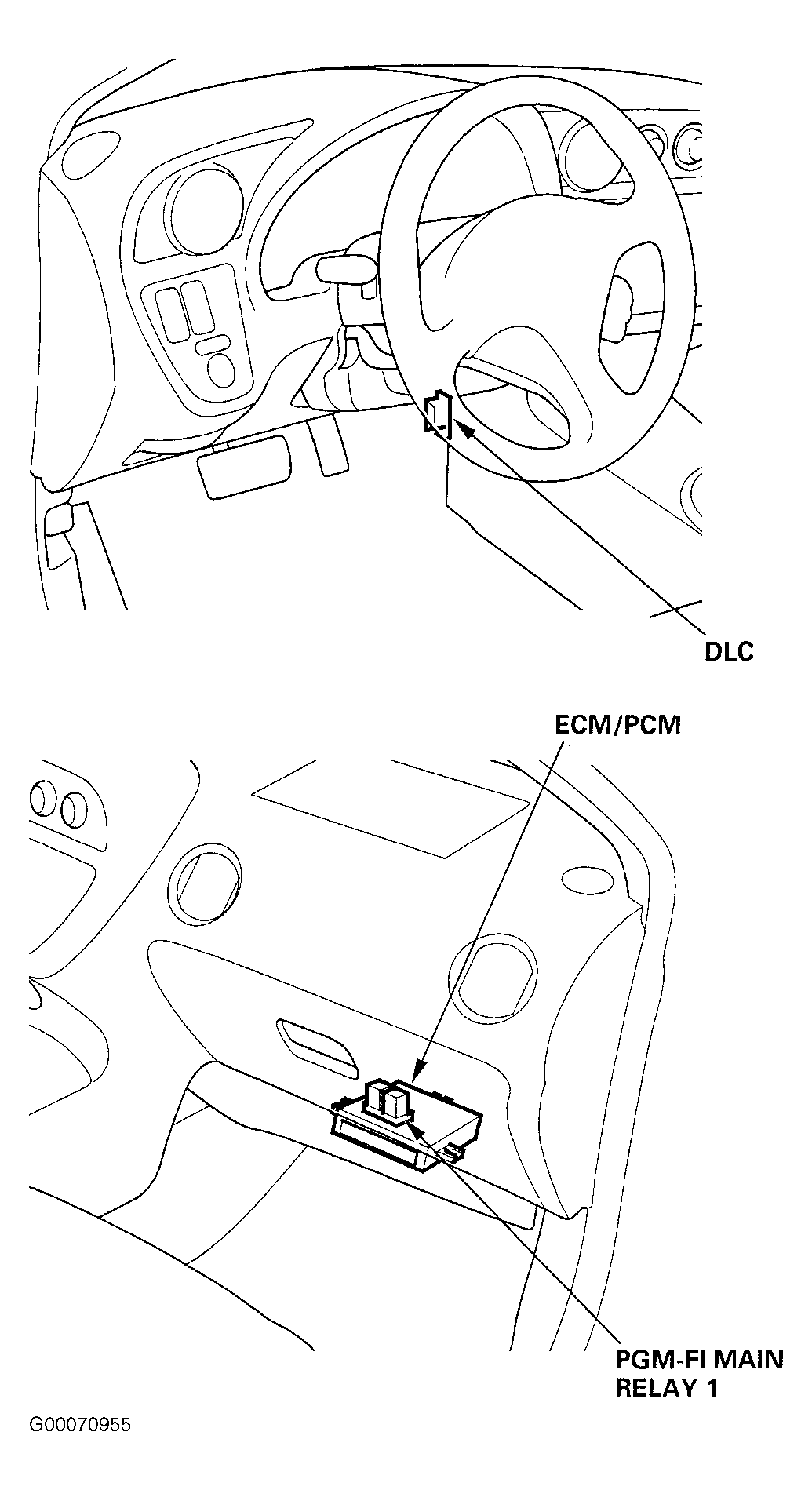

Fig 5: Locating Engine Performance-Related Components (RSX - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

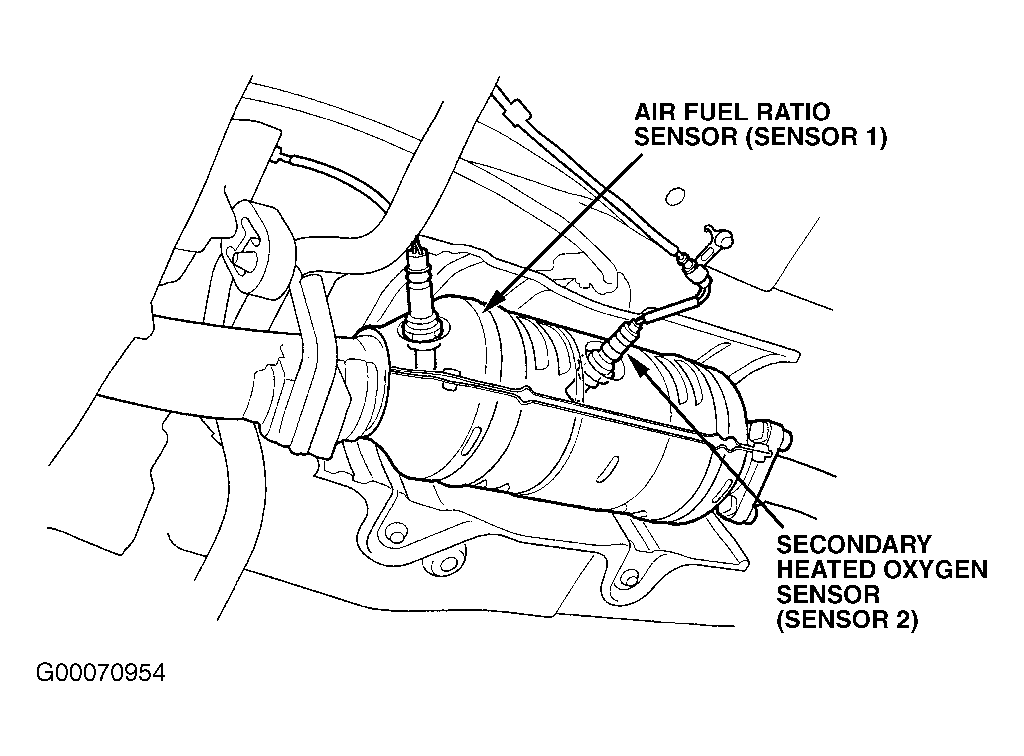

Fig 6: Locating Engine Performance-Related Components (RSX - 4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

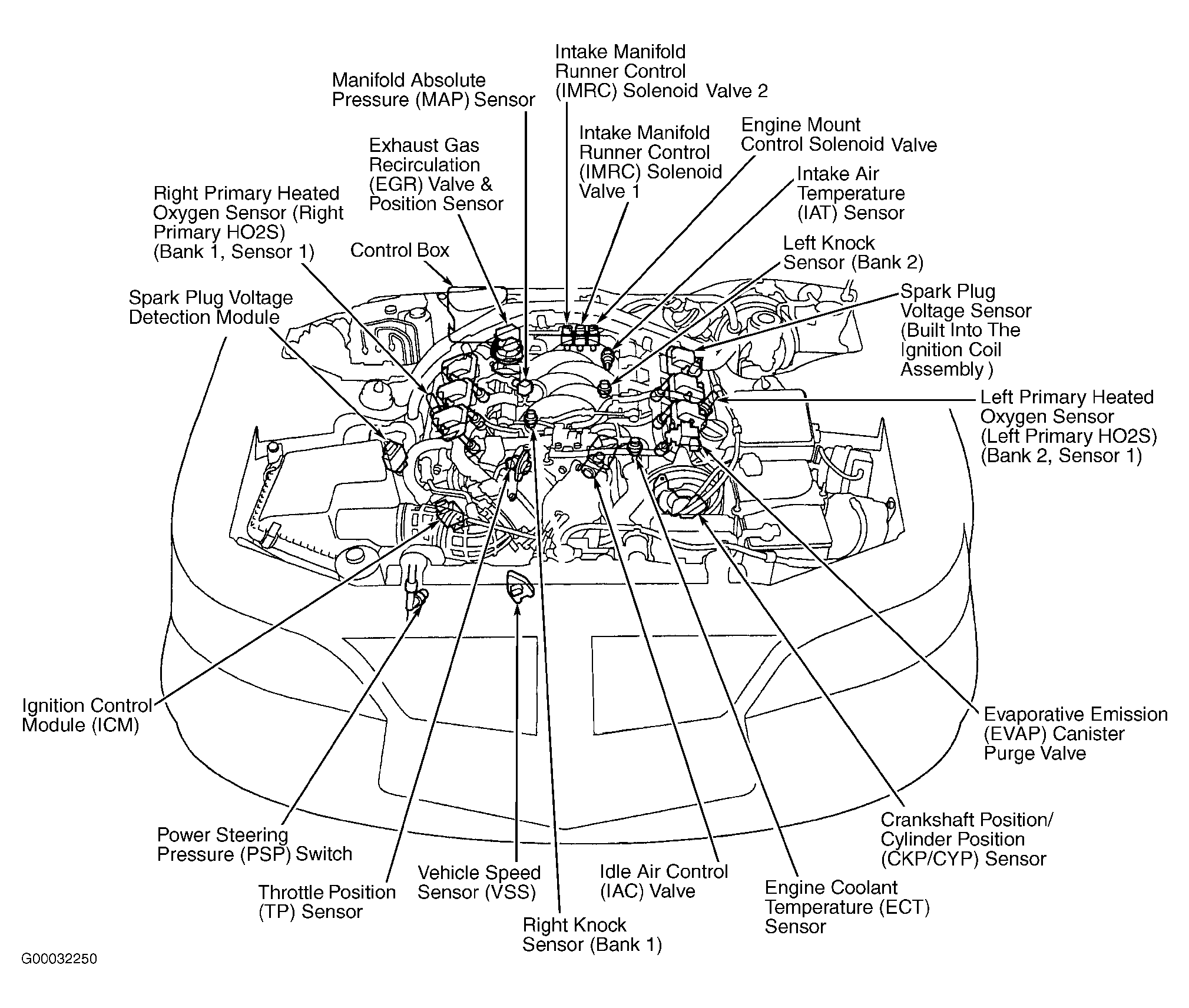

Fig 7: Locating Engine Performance-Related Components (3.2CL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

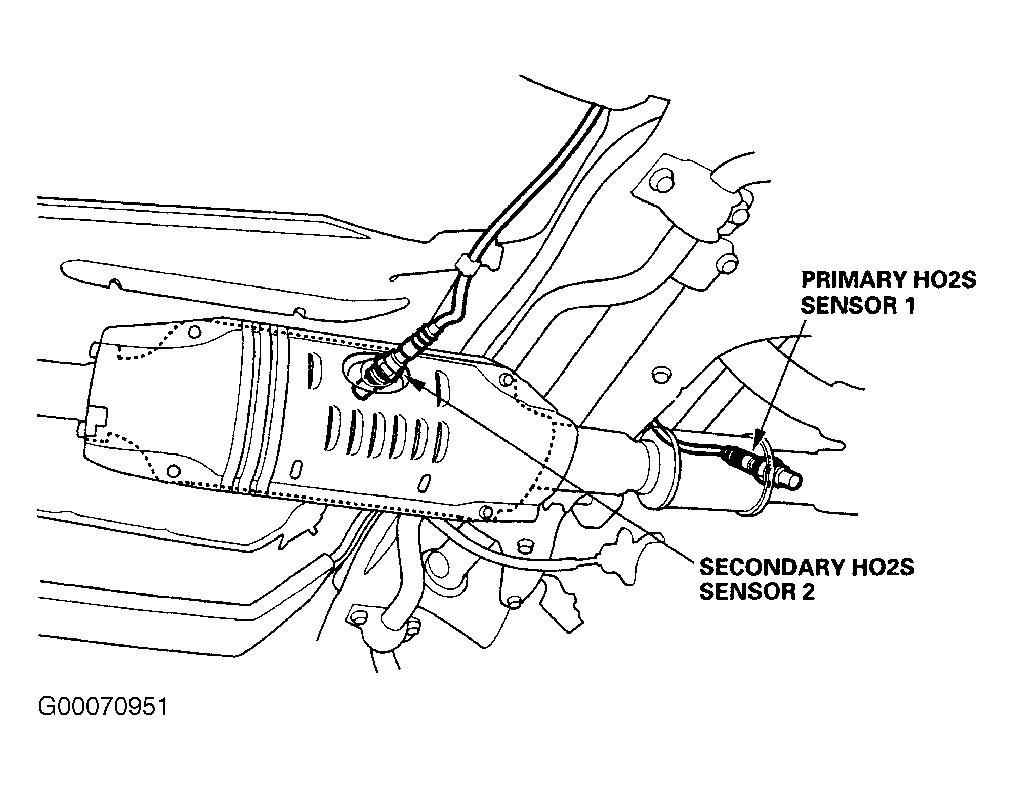

Fig 8: Locating Engine Performance-Related Components (3.2CL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Locating Engine Performance-Related Components (3.2CL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Locating Engine Performance-Related Components (3.2TL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

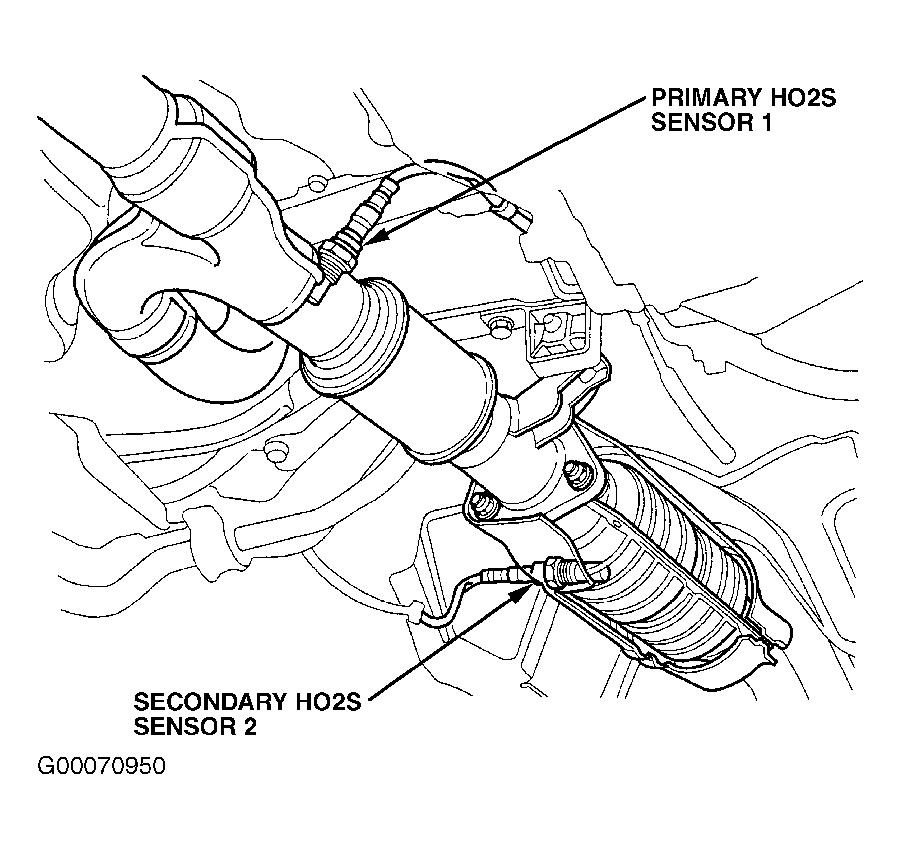

Fig 11: Locating Engine Performance-Related Components (3.2TL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Locating Engine Performance-Related Components (3.2TL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

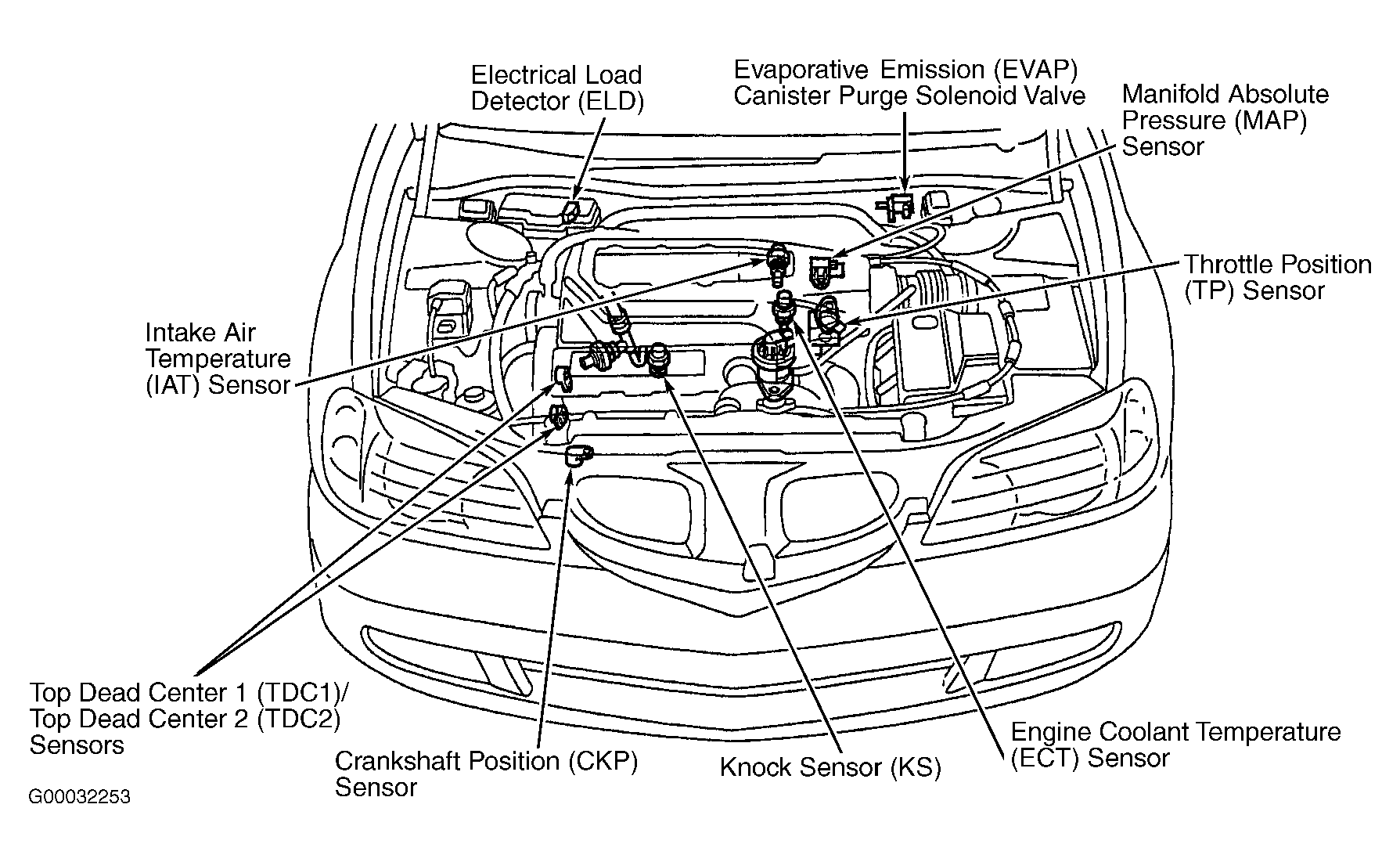

Fig 13: Locating Engine Performance-Related Components (3.5RL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Locating Engine Performance-Related Components (3.5RL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Locating Engine Performance-Related Components (3.5RL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
