Circuit Diagram

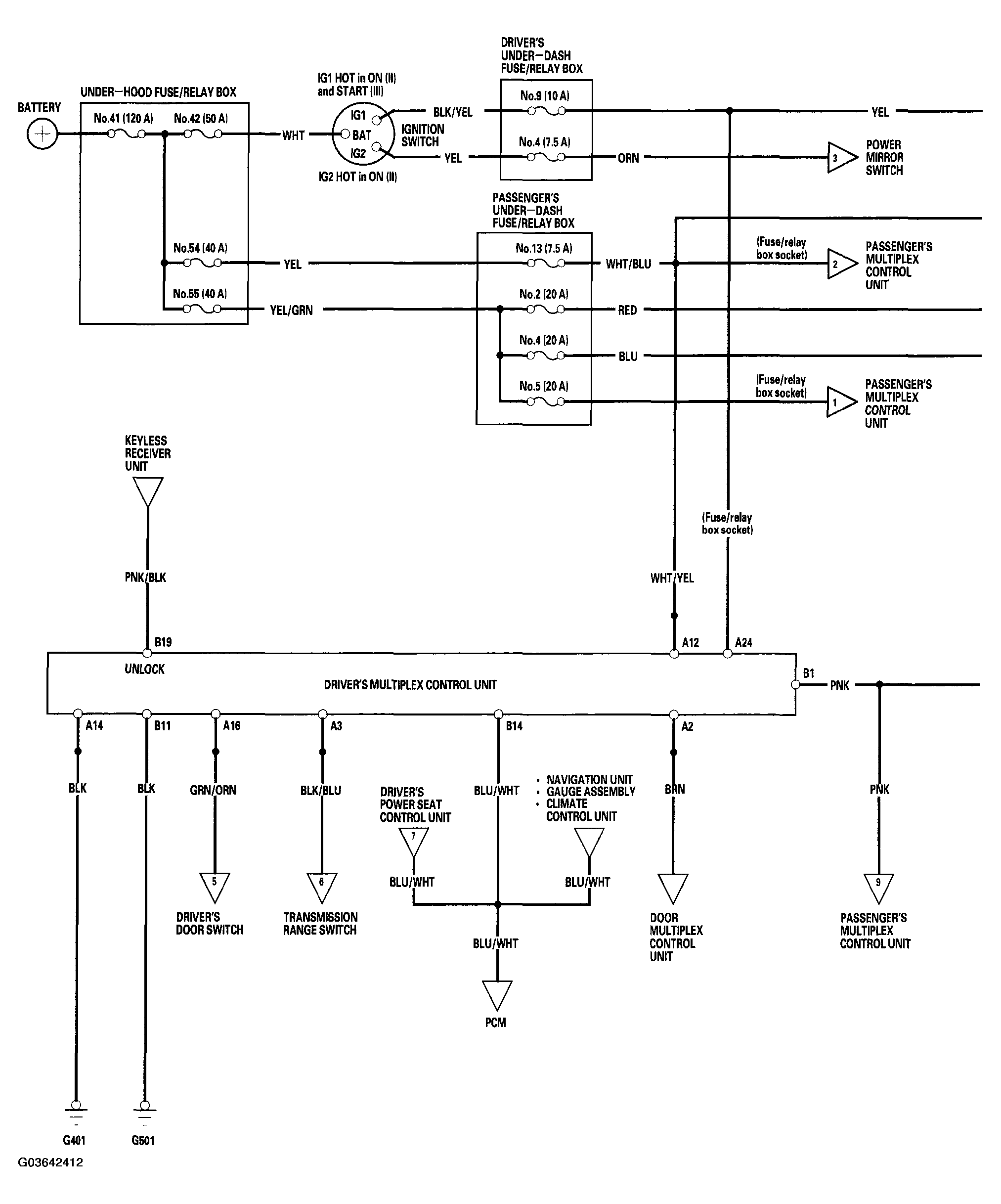

Fig 1: DPMS Circuit Diagram (1 Of 6)

G03642412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

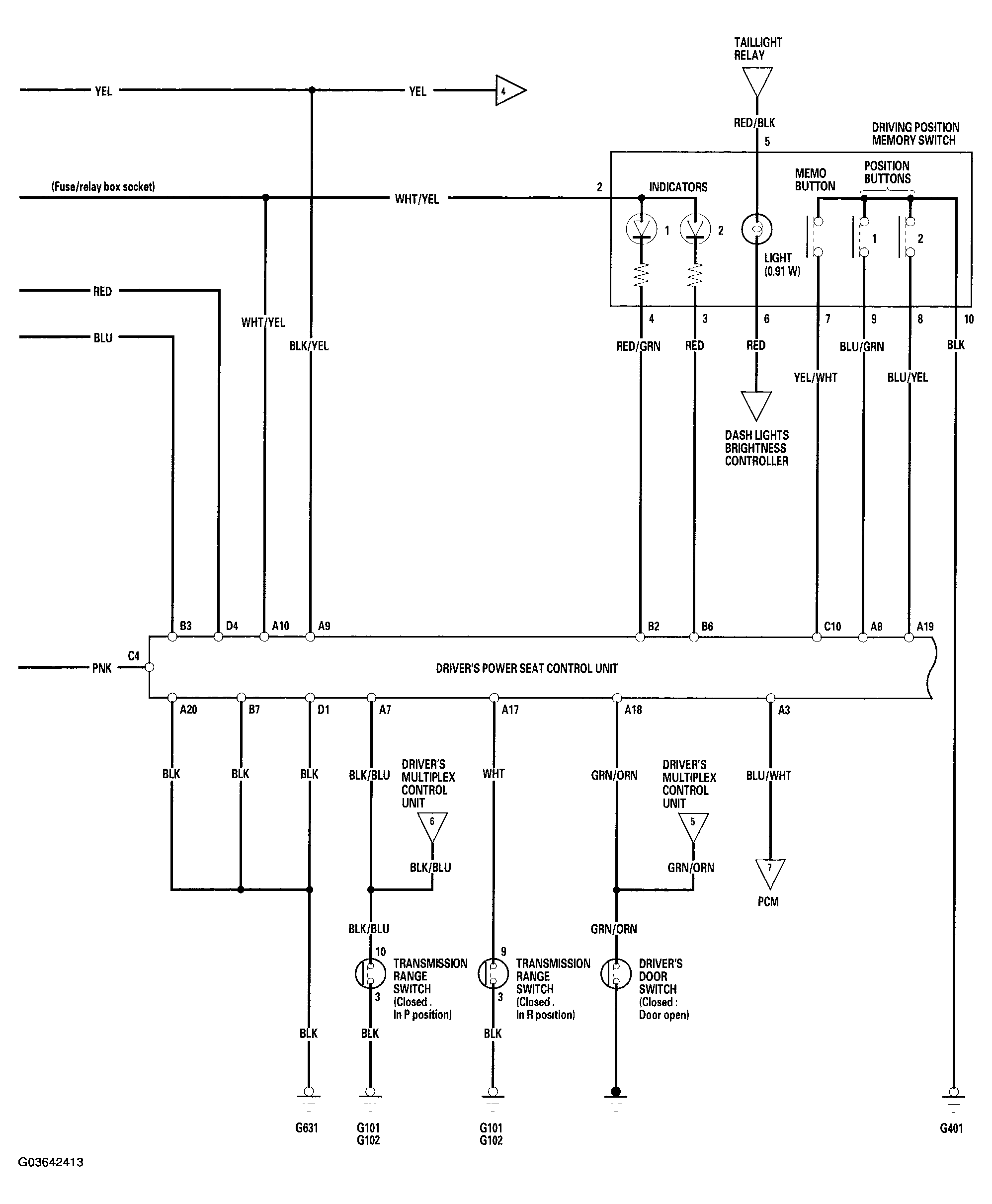

Fig 2: DPMS Circuit Diagram (2 Of 6)

G03642413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

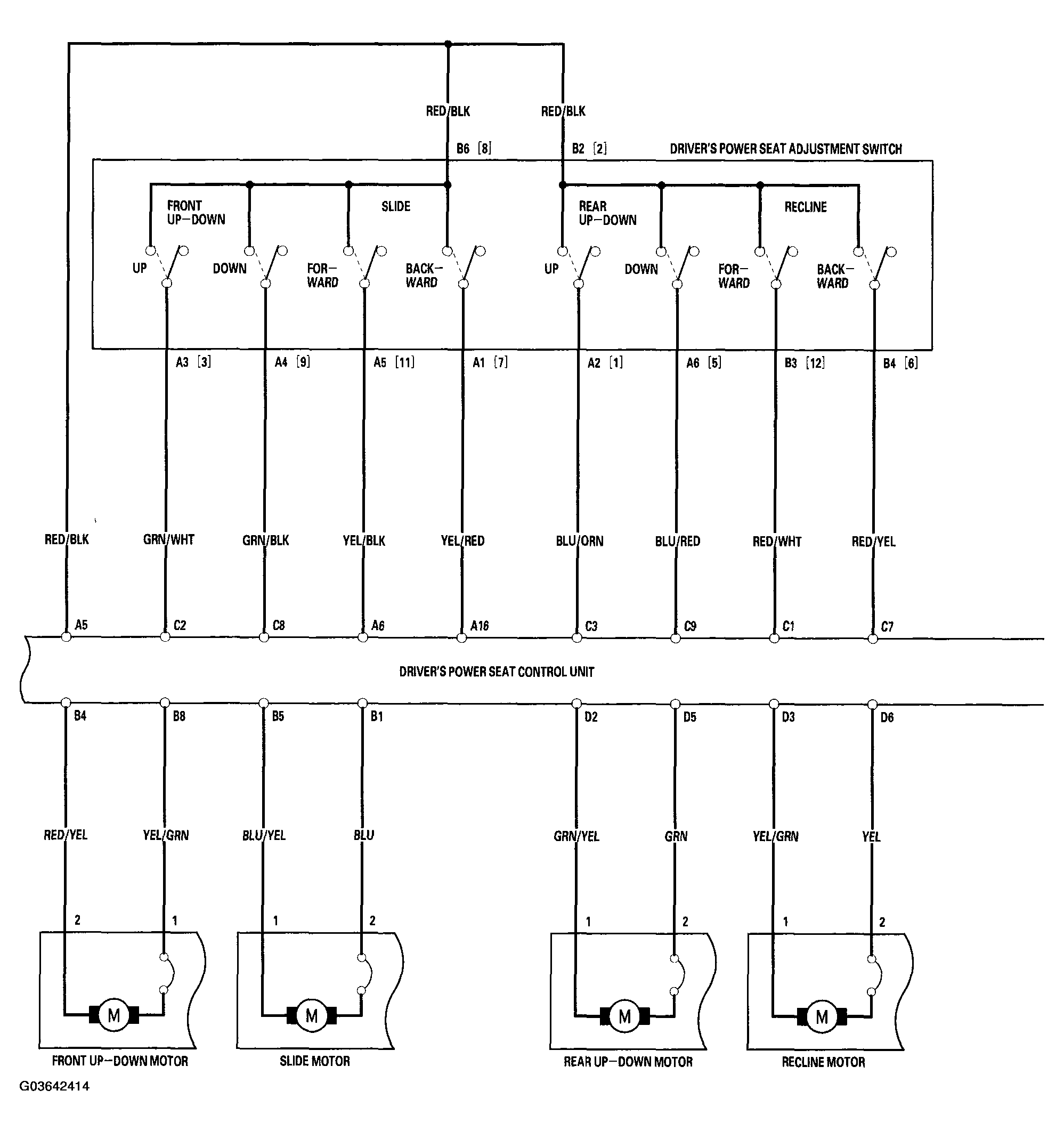

Fig 3: DPMS Circuit Diagram (3 Of 6)

G03642414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

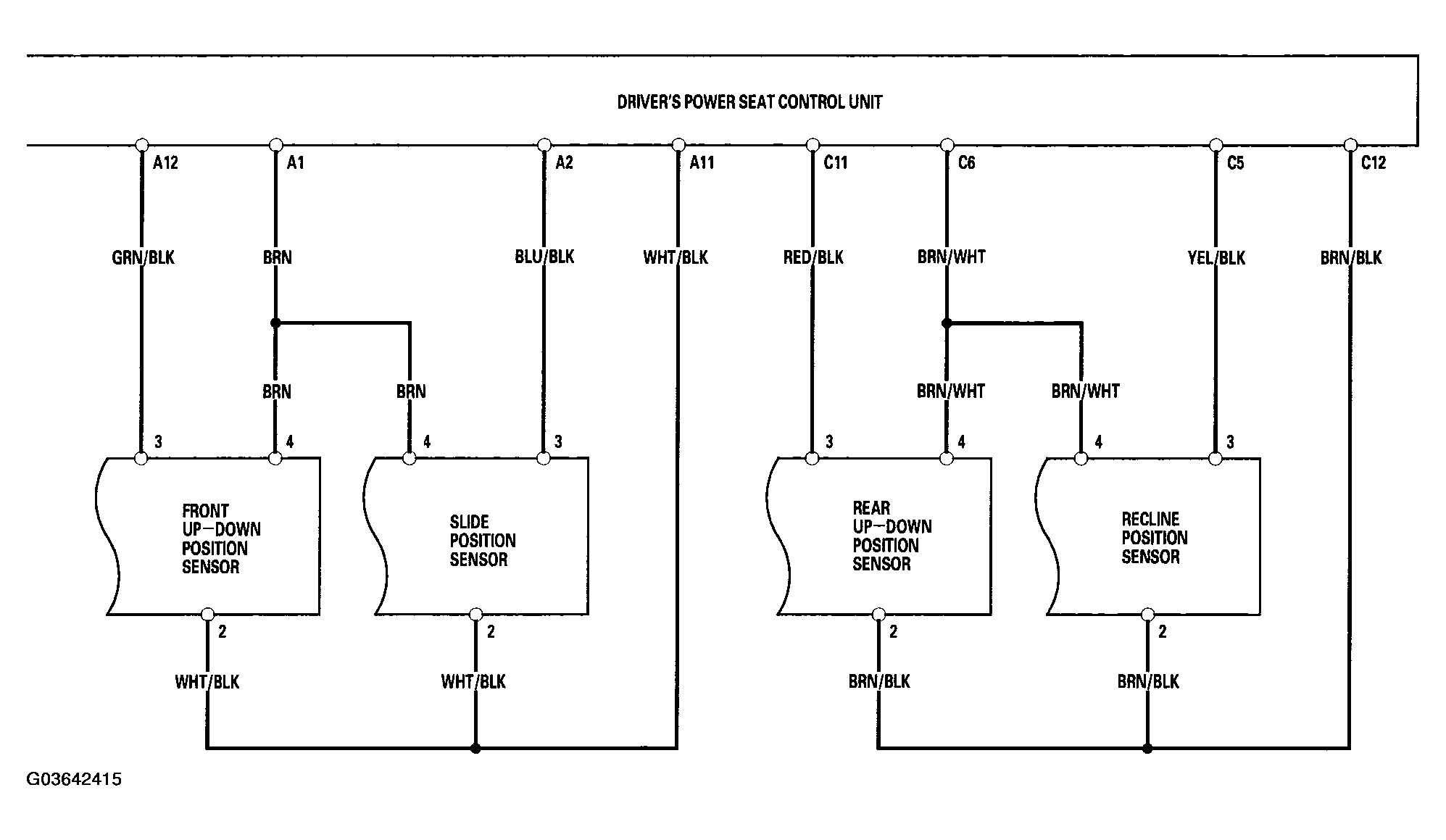

Fig 4: DPMS Circuit Diagram (4 Of 6)

G03642415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

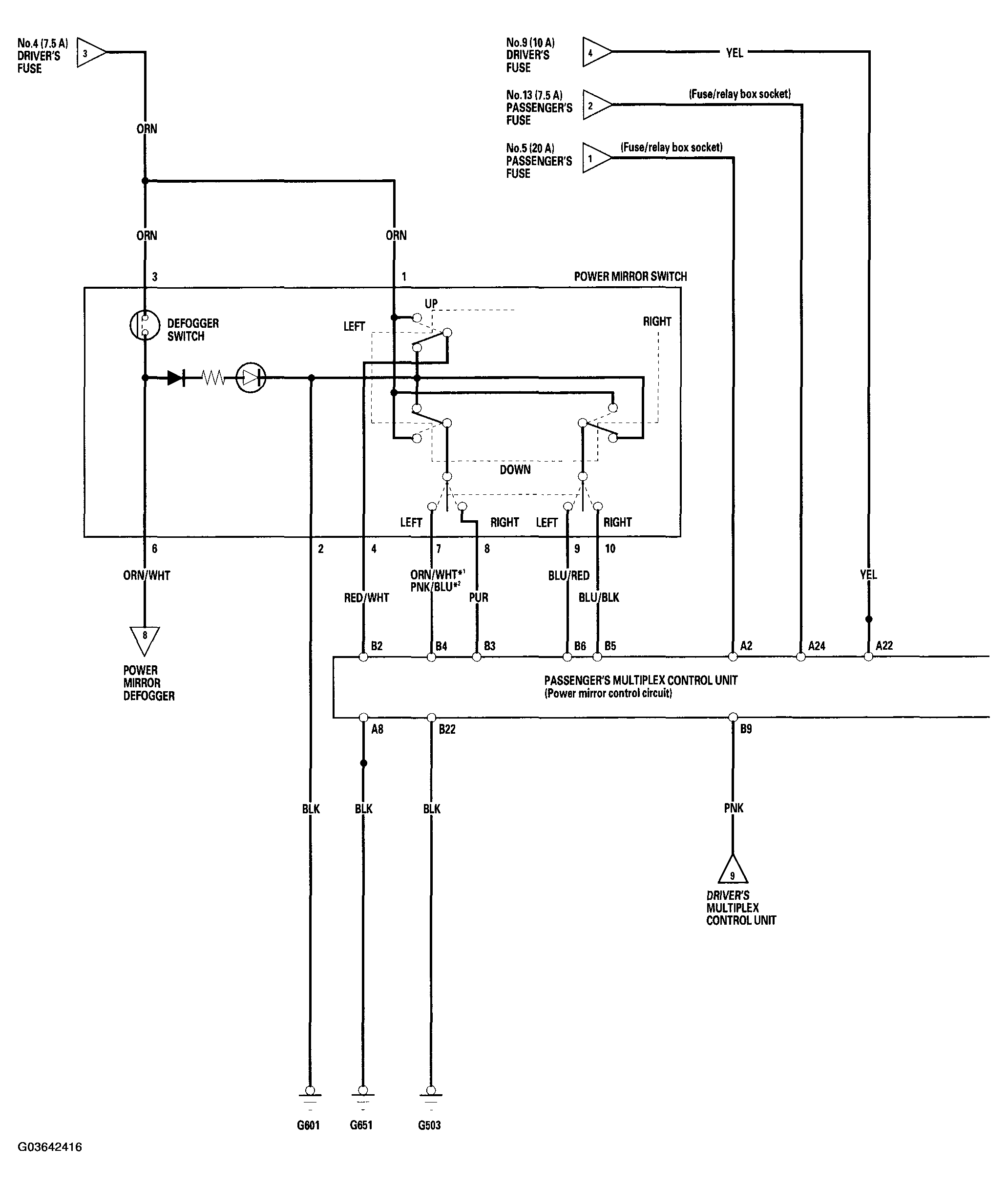

Fig 5: DPMS Circuit Diagram (5 Of 6)

G03642416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

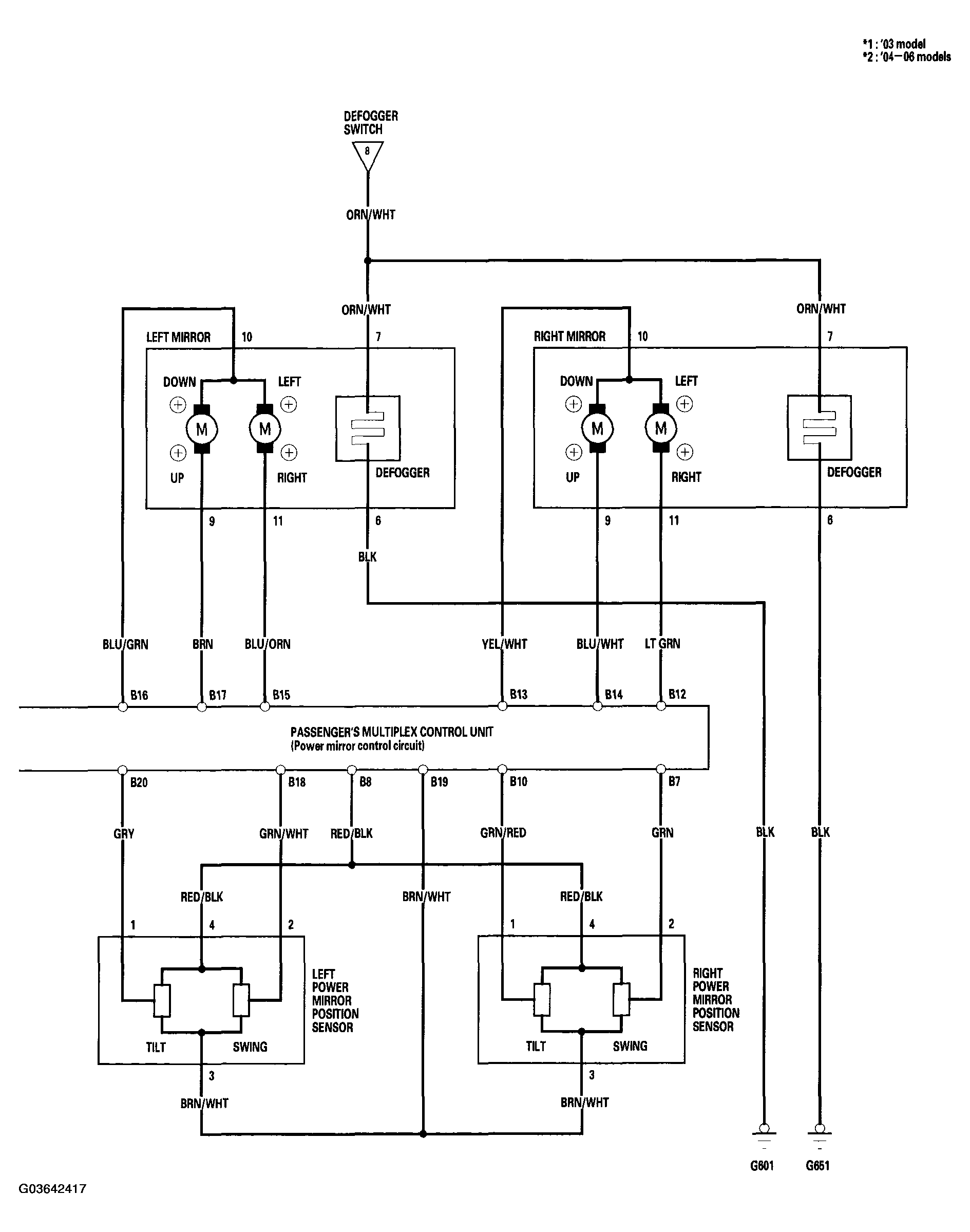

Fig 6: DPMS Circuit Diagram (6 Of 6)

G03642417

Courtesy of AMERICAN HONDA MOTOR CO., INC.
