Component Location Index

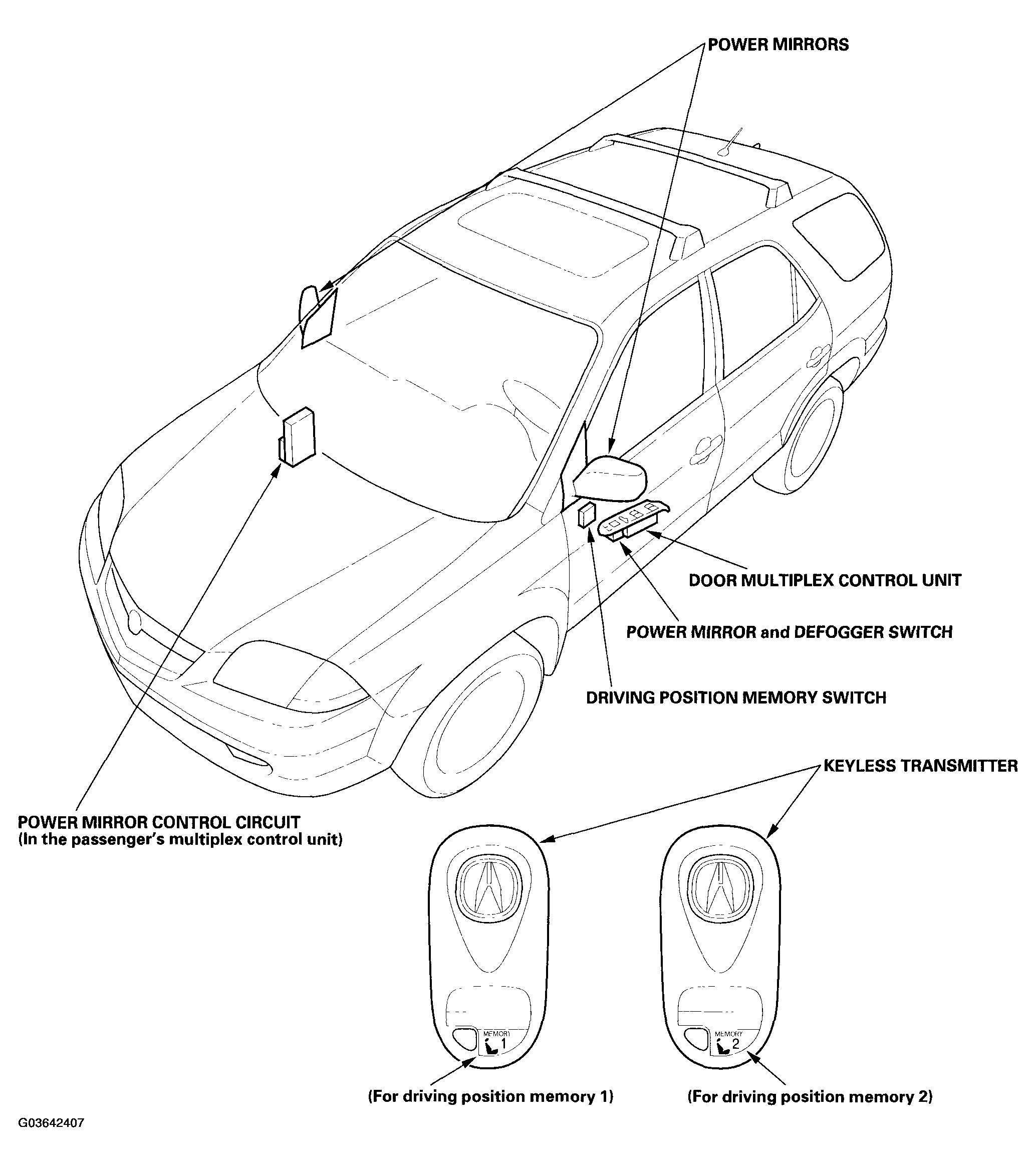

Fig 1: Identifying DPMS Components Location (1 Of 2)
G03642407Courtesy of AMERICAN HONDA MOTOR CO., INC.

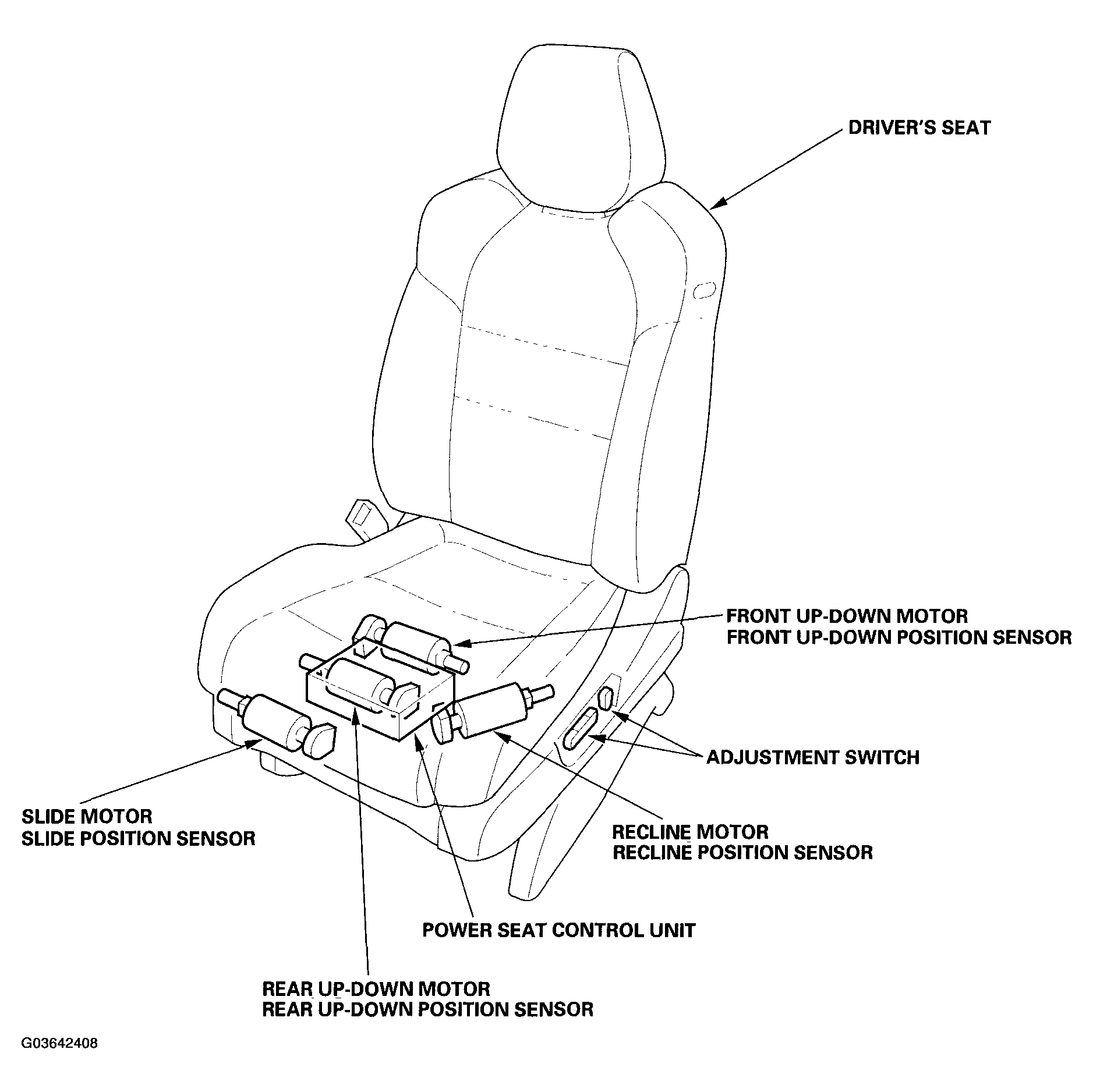

Fig 2: Identifying DPMS Components Location (2 Of 2)
G03642408Courtesy of AMERICAN HONDA MOTOR CO., INC.
