Driving Position Memory Switch Test/Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector from the driving position memory switch (A).

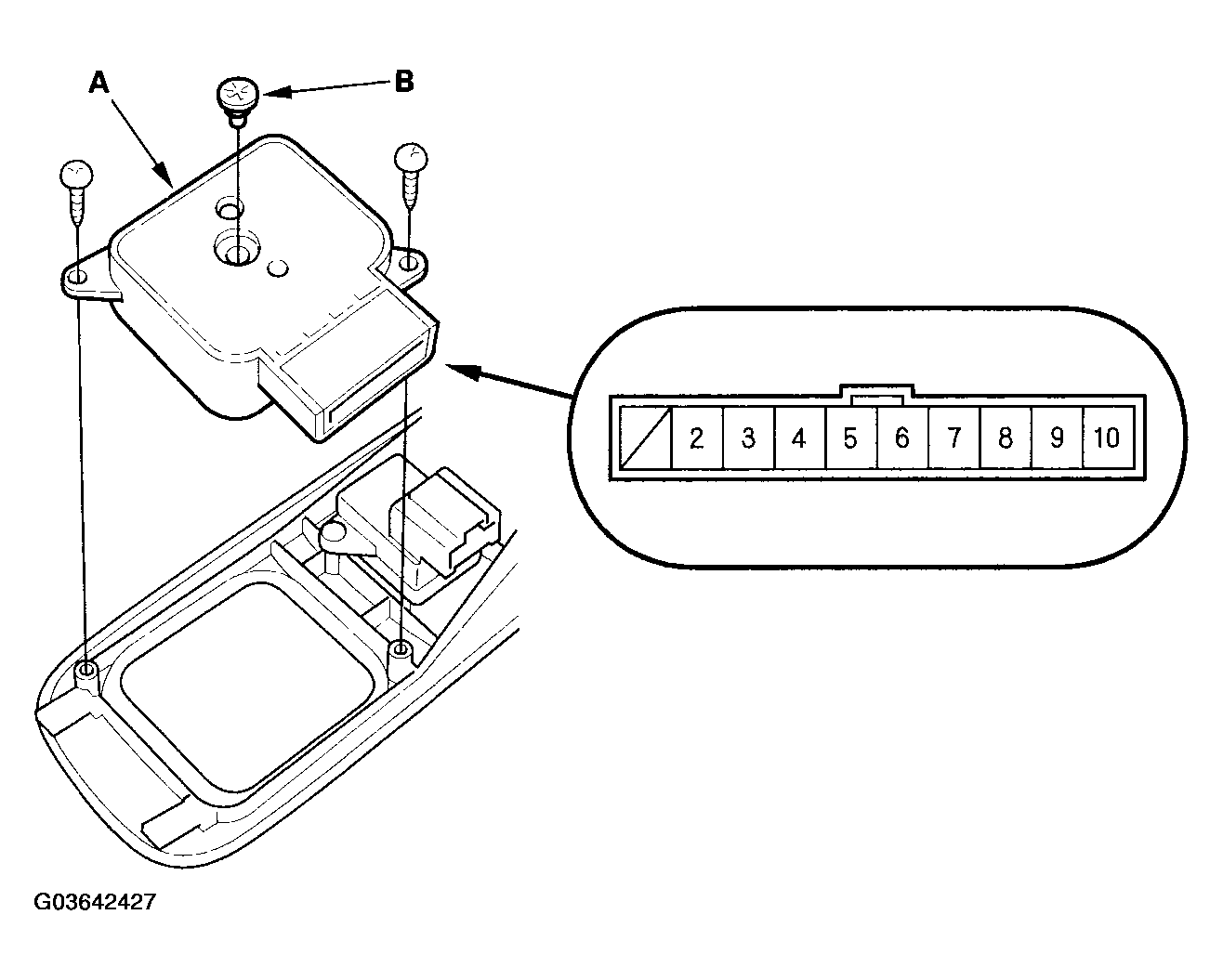

    Fig 1: Disconnecting 10P Connector From Driving Position Memory Switch
    G03642427Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to Fig 2 .
    Fig 2: Checking Continuity Between Terminals In Each Switch Position Chart
    G03642428Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the illumination bulb (B) or the switch.
