APP Sensor Replacement

  1. Remove the bolts and the throttle cable cover (A).

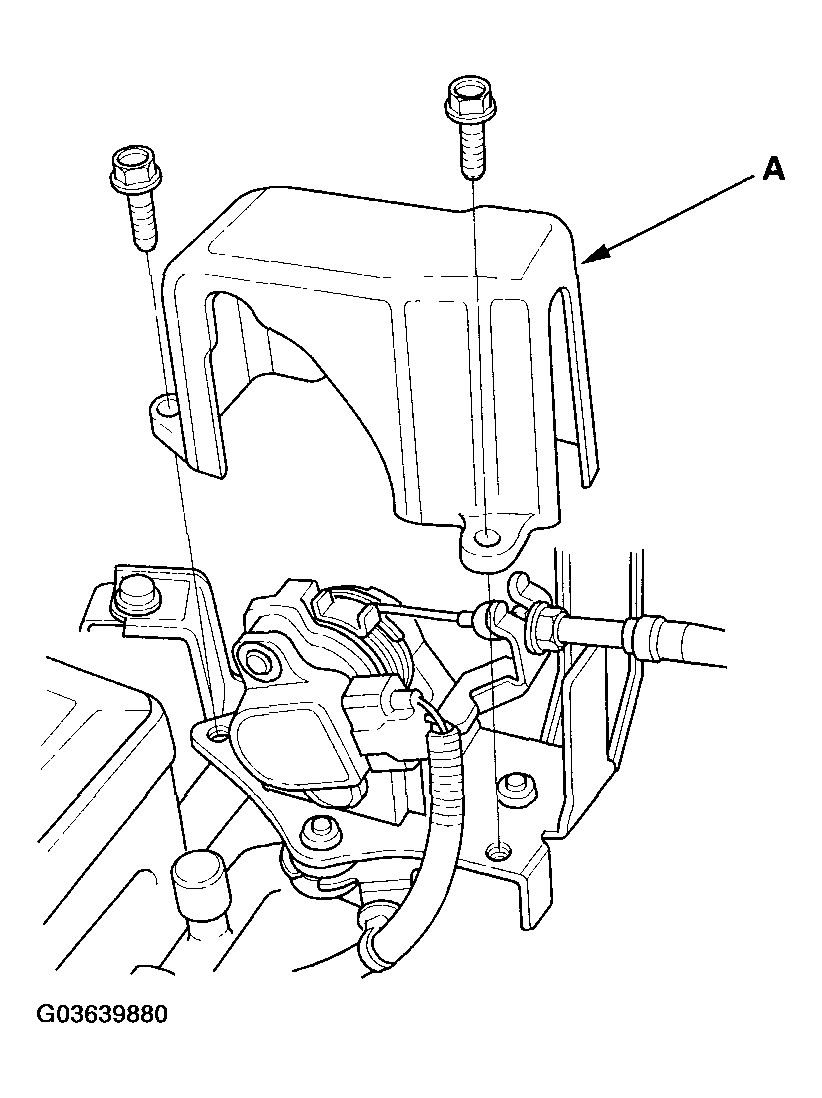

    Fig 1: Removing Bolts And Throttle Cable Cover
    G03639880Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the throttle cable (see THROTTLE CABLE REMOVAL/INSTALLATION ).
  3. Disconnect the APP sensor 6P connector (A).

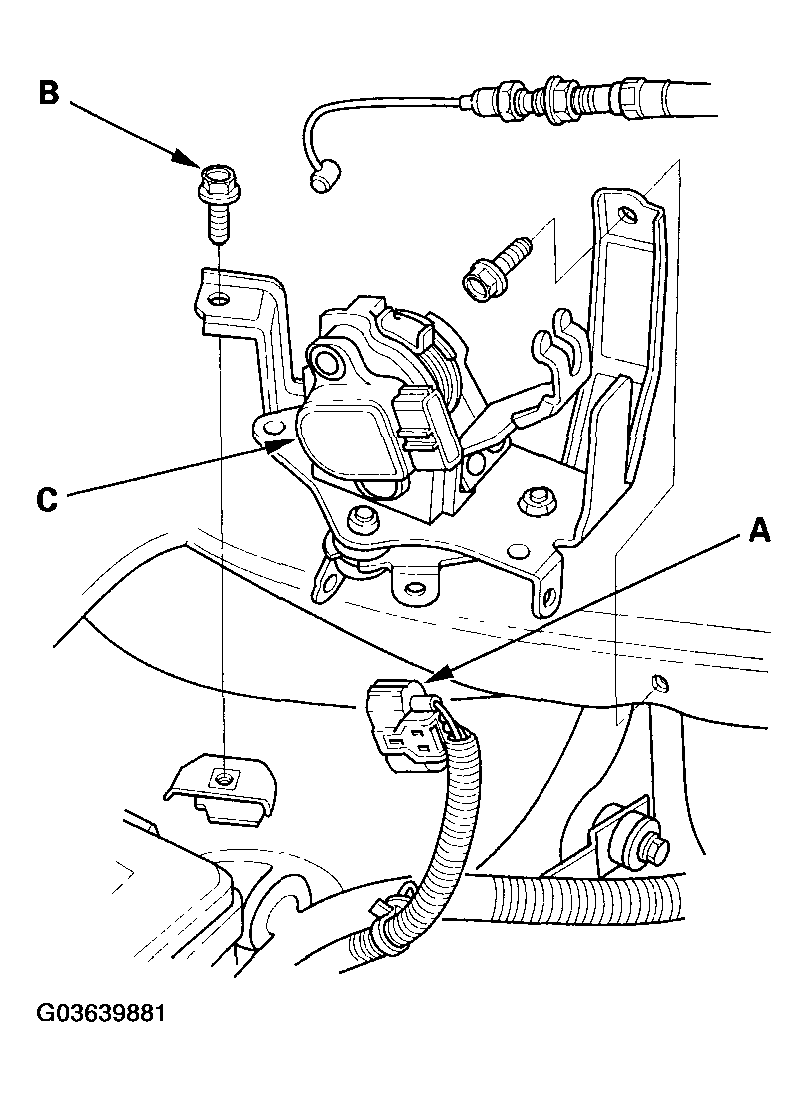

    Fig 2: Disconnecting APP Sensor
    G03639881Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (B) and APP sensor (C).
  5. Install the parts in the reverse order of removal.
