Acura
>>
2004
>>
TL Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Display Panel Control System
>>
Circuit Diagram
Circuit Diagram

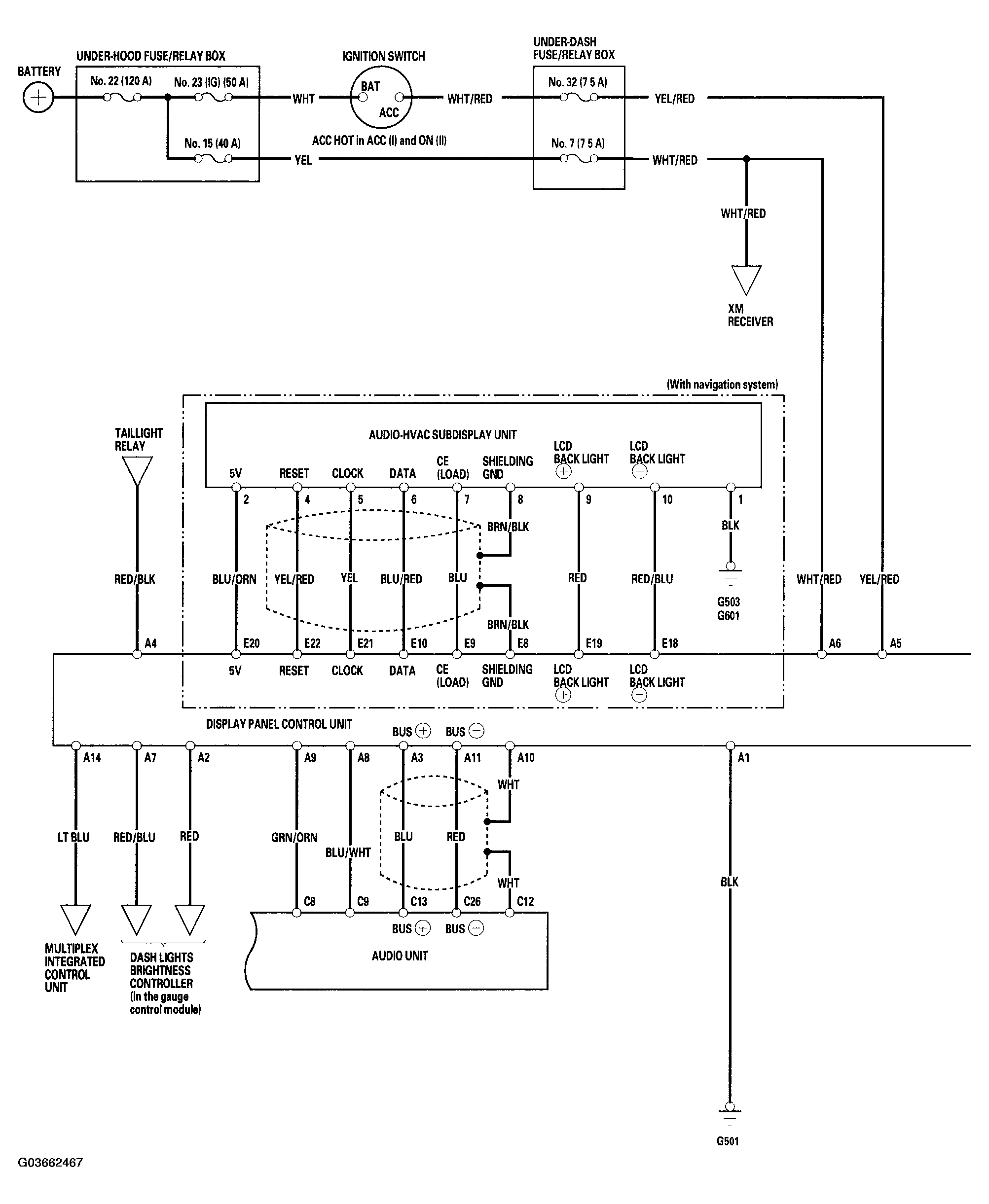

Fig 1: Display Panel Control System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

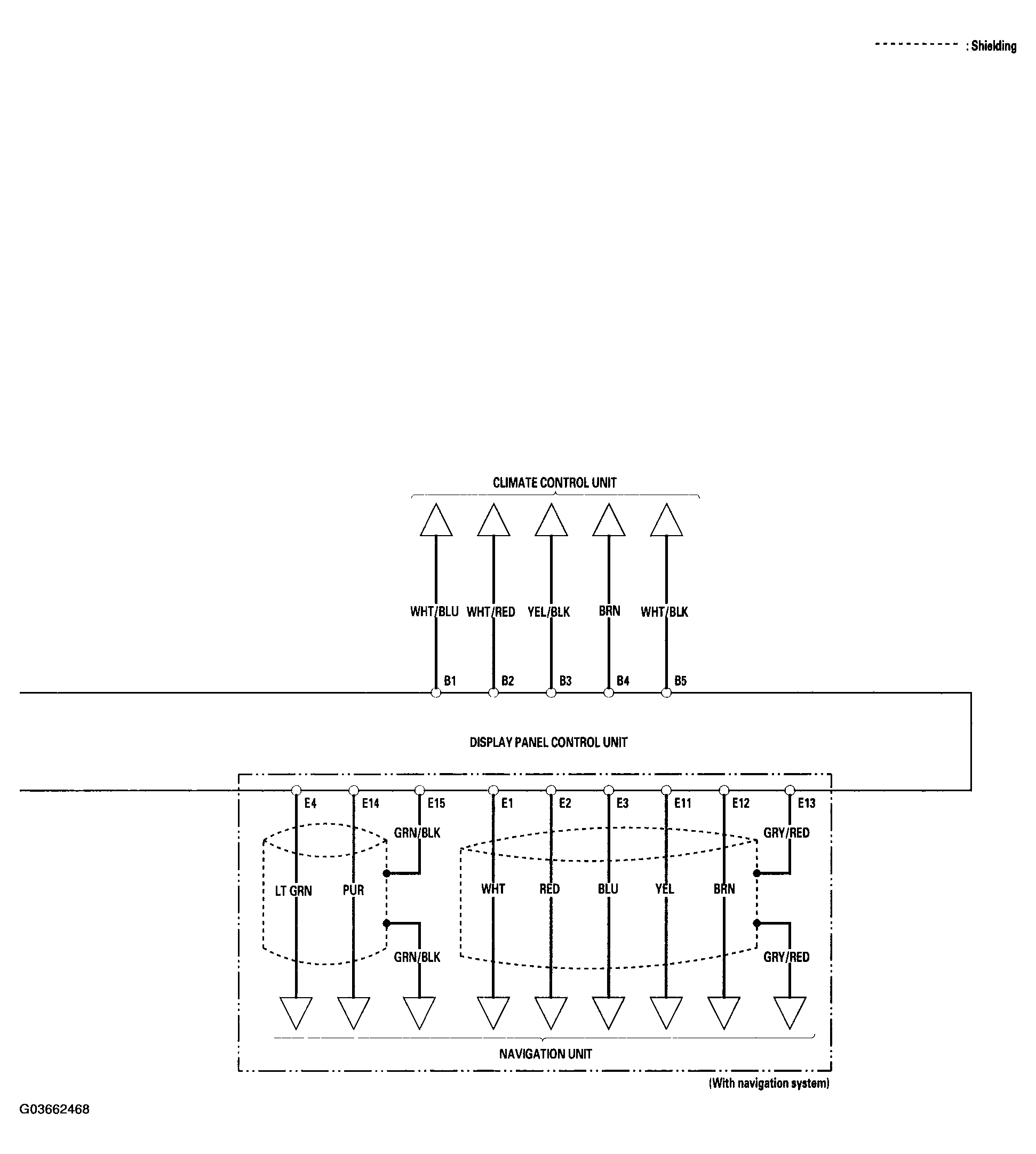

Fig 2: Display Panel Control System - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
