Service Information

The remaining engine oil life (A) is shown as a percentage in the multi-information display. To see the current engine oil life, turn the ignition switch to the ON (II) position, then push and release the SELECT/RESET knob repeatedly until the engine oil life displays.

Fig 1: Identifying Oil Life At 80 Percent Displayed
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in the ON (II) position, and the remaining engine oil life is 6% to 15%, the remaining engine oil life and other scheduled maintenance item(s) needing service are displayed. The maintenance system message "SERVICE DUE SOON" (A) also comes on. To cancel the message, press the INFO knob. The display continues to show the remaining engine oil life (B) and the message indicator (C) until it is reset.
- Complete list of maintenance main items (D) (see MAINTENANCE MAIN ITEMS ).
- Complete list of maintenance sub items (E) (see MAINTENANCE SUB ITEMS ).

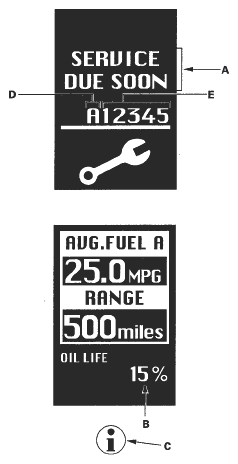

  Fig 2: Identifying Oil Life At 15 Percent Displayed
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in the ON (II) position, and the remaining engine oil life is 1% to 5%, the maintenance system message "SERVICE DUE NOW" is displayed along with the same maintenance item code(s). If the maintenance system message display is canceled, a "SERVICE" message appears.

Fig 3: Identifying SERVICE DUE NOW Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is in the ON (II) position, and the remaining engine oil life is 0%, the maintenance system message "SERVICE PAST DUE" is displayed along with the same maintenance item code(s).

Fig 4: Identifying SERVICE PAST DUE Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the indicated maintenance is not done, the "SERVICE PAST DUE" message shows a negative mileage, for example "-10," on the display. If the negative mileage is between 0 and -9, the message is displayed for only a few seconds when the ignition switch is turned to the ON (II) position. The negative mileage (A) remains displayed after the vehicle is driven more than 10 miles (for USA models) or 10 km (for Canada models) after 0% oil life is reached, and the display cannot be canceled. This means the indicated maintenance item(s) should have been done more than 10 miles (or 10 km) ago.

Fig 5: Identifying 10 MILES SERVICE PAST DUE Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
