Home >> Acura >> 2005 >> RL >> Repair and Diagnosis >> Body & Frame >> Seats >> Driver Position Memory System (DPMS) >> Component Location Index

Component Location Index

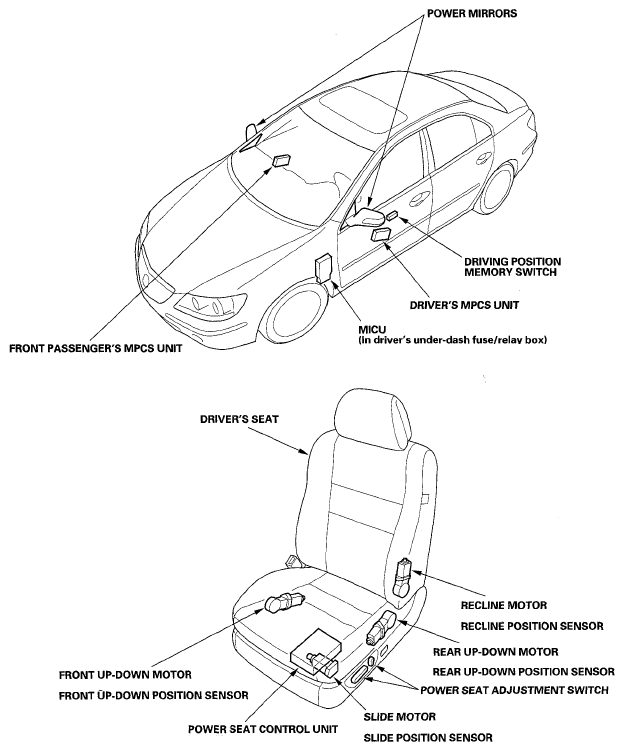

Fig 1: Identifying Location Of Driver Position Memory System (DPMS) Components (1 Of 2)
G05497244Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Location Of Driver Position Memory System (DPMS) Components (2 Of 2)
G05497245Courtesy of AMERICAN HONDA MOTOR CO., INC.
