Ignition Coil Removal/Installation

  1. Remove the engine cover (A).

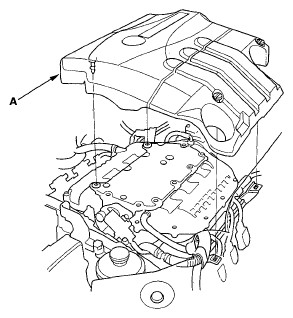

    Fig 1: Identifying Engine Cover
    G05484477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the ignition coil connector (A), then remove the ignition coils (B).
    Fig 2: Ignition Coil Connector And Ignition Coils With Torque Specification
    G05484478Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the ignition coils in the reverse order of removal.
