Home >> Acura >> 2007 >> RL >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Electronic Throttle Control System >> Component Location Index

Component Location Index

Fig 1: Identifying Electronic Throttle Control System Component Location (1 Of 2)
G05495068Courtesy of AMERICAN HONDA MOTOR CO., INC.

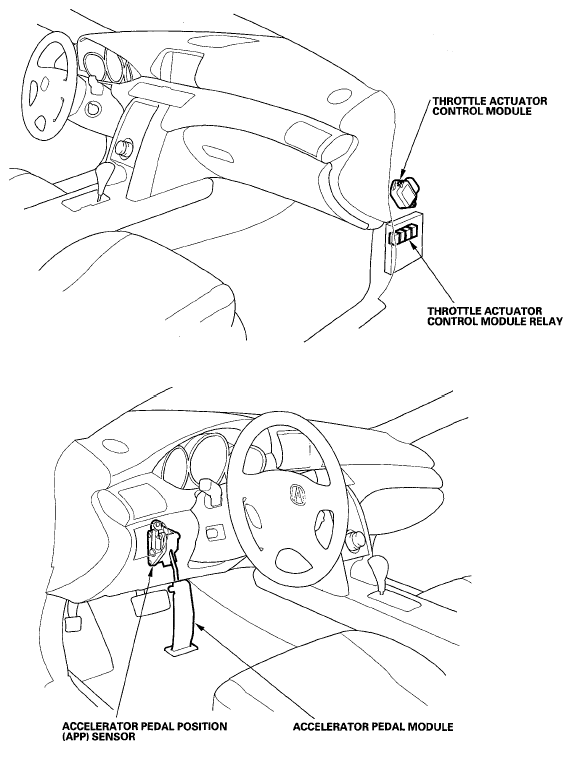

Fig 2: Identifying Electronic Throttle Control System Component Location (2 Of 2)
G05495069Courtesy of AMERICAN HONDA MOTOR CO., INC.
