DTC P0685: Powertrain Control Module (PCM) Power Control Circuit Malfunction (Power Control Circuit)
>>
Notes
DTC P0685: Powertrain Control Module (PCM) Power Control Circuit Malfunction (Power Control Circuit): Notes

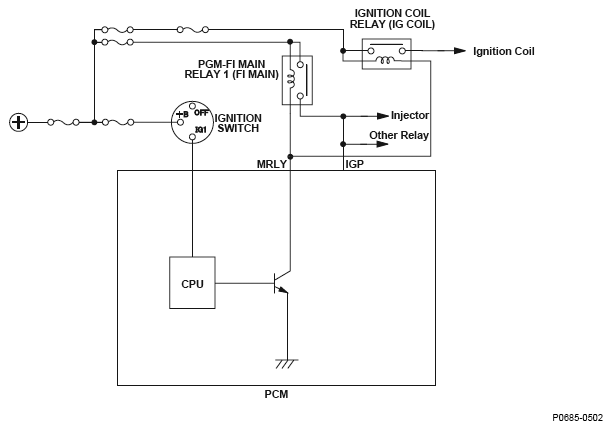

Fig 1: Powertrain Control Module Power Control Circuit Diagram
