EVAP Canister Purge Valve Replacement

  1. Remove the engine cover (see step 2 on REMOVAL-K20Z2 ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  4. Remove the fuel line (A).

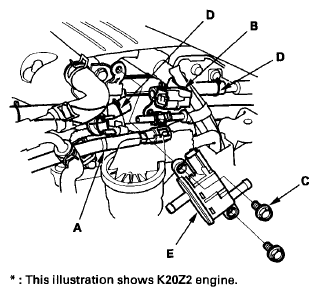

    Fig 1: Identifying Fuel Line And EVAP Canister Purge Valve 2P Connector With Bolts
    G06265922Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the EVAP canister purge valve 2P connector (B).
  6. Remove the bolts (C) and the hoses (D), then remove the EVAP canister purge valve (E).
  7. Install the parts in the reverse order of removal.
