EVAP Canister Vent Shut Valve Replacement

  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
  2. Remove the cap (A).

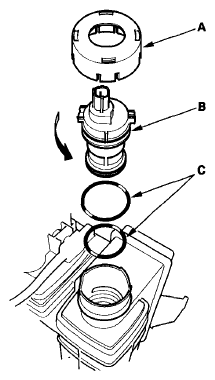

    Fig 1: Removing EVAP Canister Vent Shut Valve And Cap
    G06265921Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister vent shut valve (B).
  4. Install the parts in the reverse order of removal with new O-rings (C) and new cap.
    NOTE: Do not coat the O-ring with oil.
