Air Cleaner Removal/Installation

Disconnect the MAF sensor/IAT sensor connector (A).

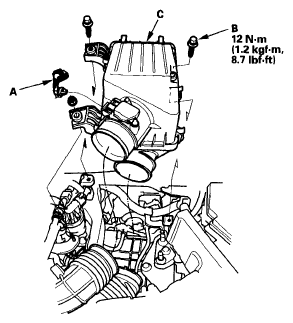

Fig 1: MAF Sensor/IAT Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* : This illustration shows K20Z2 engine.
Remove the bolts (B).
Remove the air cleaner (C).
Install the parts in the reverse order of removal.
