Ignition Coil Removal/Installation: Front

  1. Remove the engine cover.

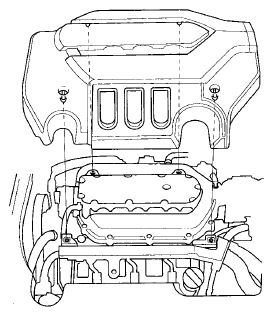

    Fig 1: Identifying Engine Cover
    G06163223Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the upper grille cover (see UPPER GRILLE COVER REPLACEMENT ).
  3. Remove the coolant reservoir from the bracket.
  4. Disconnect the ignition coil connectors (A), then remove the front ignition coils (B).

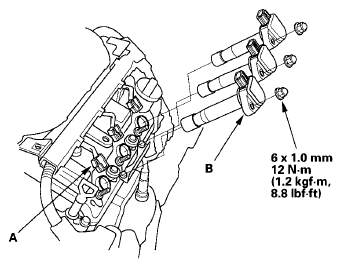

    Fig 2: Locating Ignition Coil Connectors And Front Ignition Coils With Torque Specifications
    G06163224Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the front ignition coils in the reverse order of removal.
