Accelerator Pedal Module Removal/Installation

  1. Disconnect the APP sensor 6P connector (A).

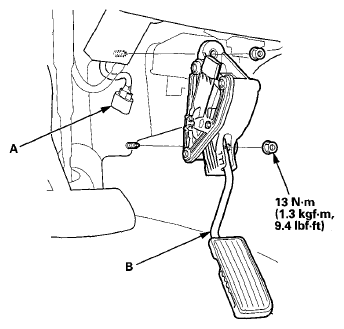

    Fig 1: Accelerator Pedal Module With Torque Specifications
    G08054653Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the accelerator pedal module (B).
    NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  3. Install the parts in the reverse order of removal.
