DTC P0685: Powertrain Control Module (PCM) Power Control Circuit/Internal Circuit Malfunction: Notes

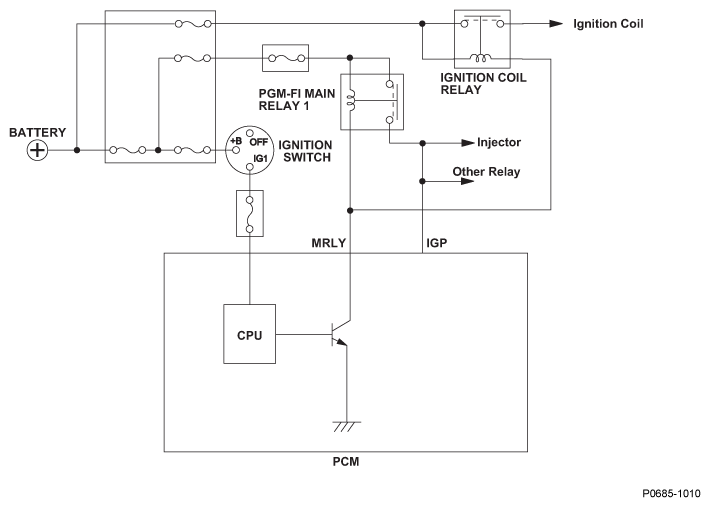

Fig 1: Powertrain Control Module (PCM) Power Control Circuit Diagram
G06562769Courtesy of AMERICAN HONDA MOTOR CO., INC.
