Accelerator Pedal Module Removal/Installation

  1. Disconnect the APP sensor connector (A).

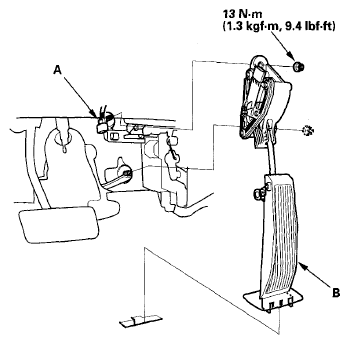

    Fig 1: Locating APP Sensor Connector With Torque Specifications
    G06164027Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Release the lock tab on the base of the accelerator pedal, then remove the accelerator pedal module (B).
  3. Install the parts in the reverse order of removal.
