EVAP Canister Vent Shut Valve Replacement

  1. Raise the vehicle on a lift.
  2. Remove the EVAP canister cover (A).

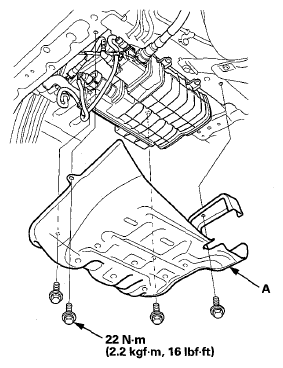

    Fig 1: EVAP Canister Cover And Mounting Bolts With Torque Specification
    G08052689Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the EVAP canister vent shut valve 2P connector (A).
  4. Remove the cap (B).

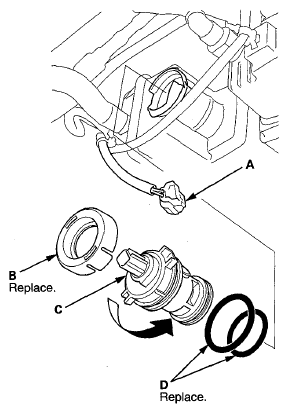

    Fig 2: Removing EVAP Canister Vent Shut Valve
    G08052690Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the EVAP canister vent shut valve (C).
  6. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
NOTE: Do not coat the O-rings with oil.
