Starter
>>
Starting System
>>
Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

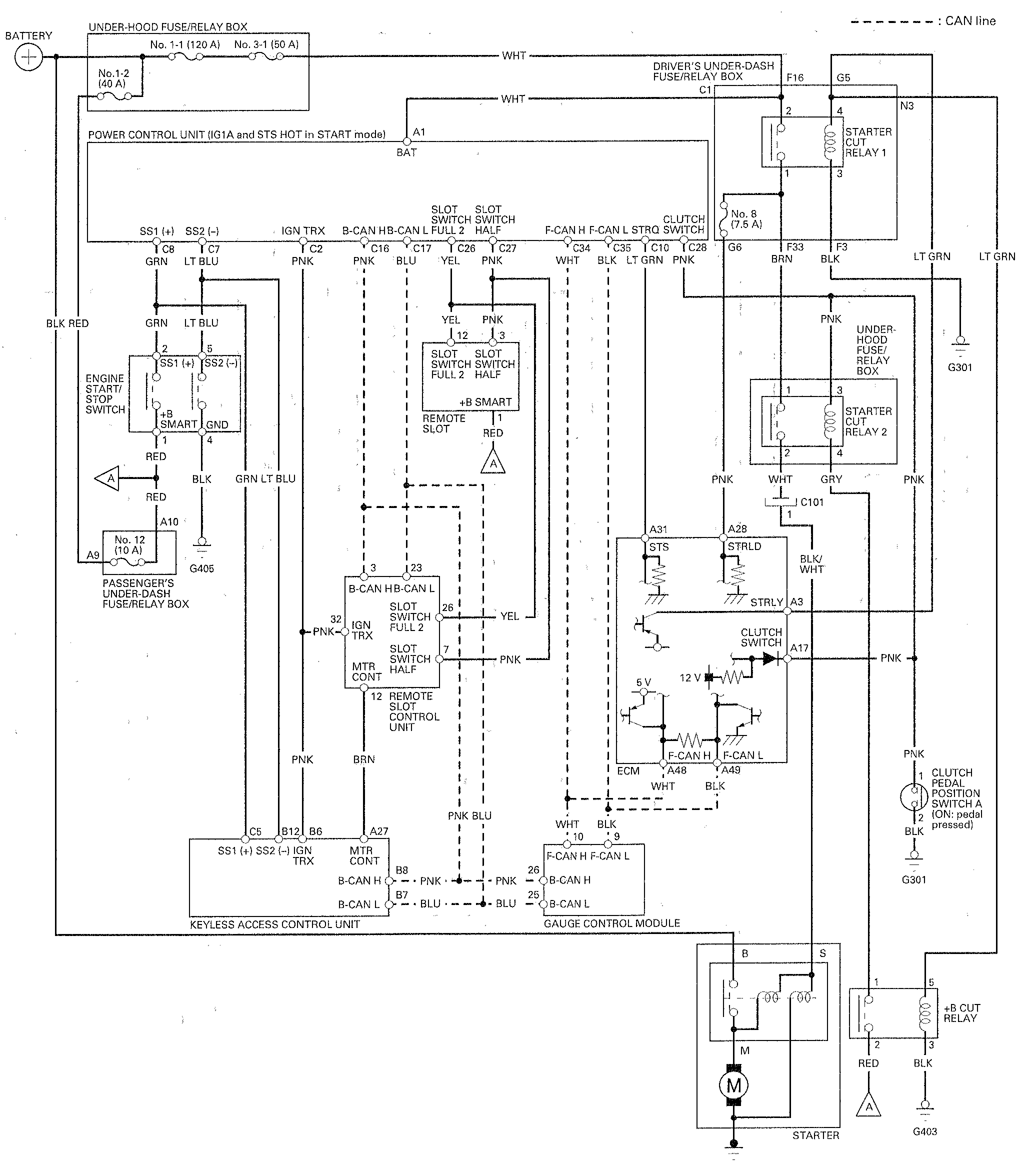

Fig 1: Starting System Circuit Diagram (With Keyless Access System) (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

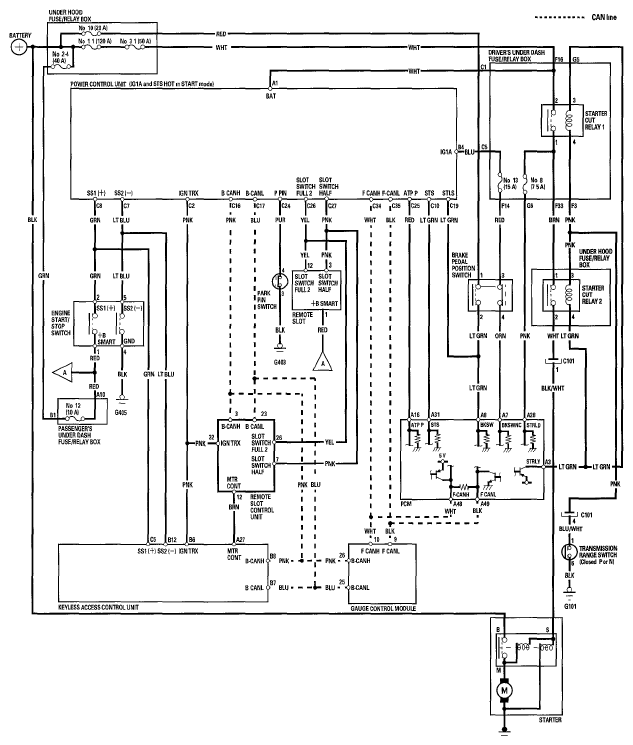

Fig 2: Starting System Circuit Diagram (With Keyless Access System) (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
