Starting System
>>
Circuit Diagram
>>
Without Keyless Access System
Without Keyless Access System

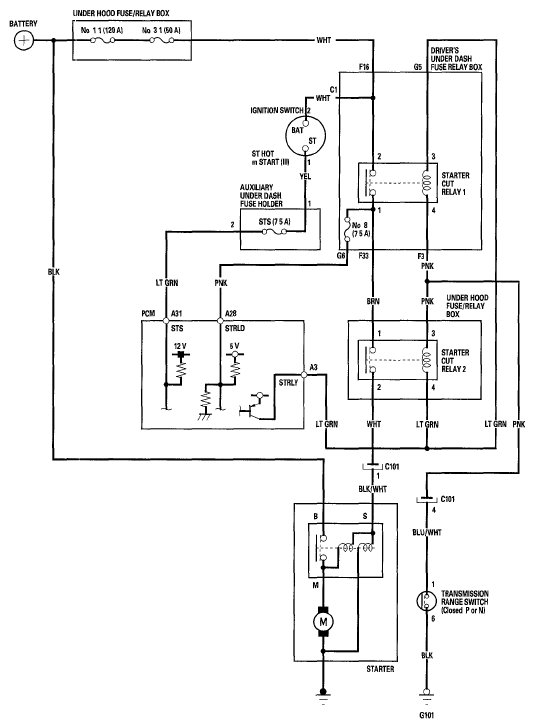

Fig 1: Starting System Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
