Home >> Acura >> 2011 >> TL Base >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Supply System >> Component Location Index >> With SH-AWD

With SH-AWD

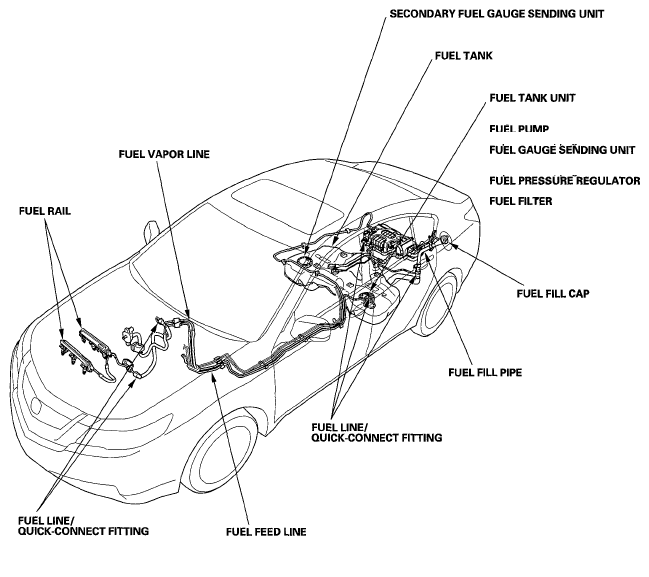

Fig 1: Identifying Fuel Supply System Component Locations - With SH-AWD
G05990285Courtesy of AMERICAN HONDA MOTOR CO., INC.

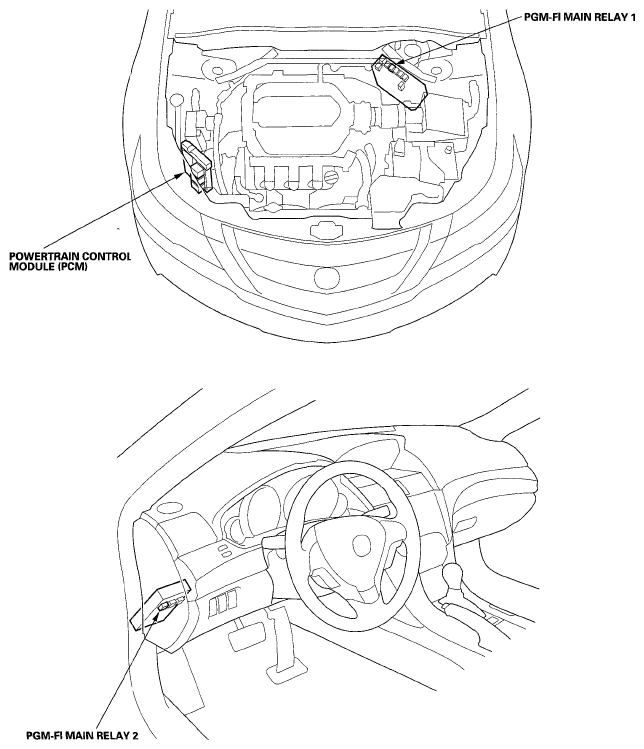

Fig 2: Identifying Fuel Supply System Component Locations
G05990286Courtesy of AMERICAN HONDA MOTOR CO., INC.

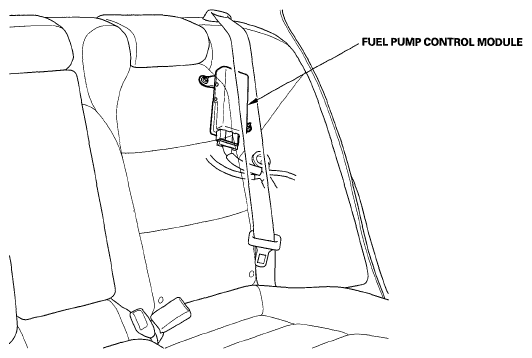

Fig 3: Identifying Fuel Supply System Component Locations - With SH-AWD ('09 Model)
G05990287Courtesy of AMERICAN HONDA MOTOR CO., INC.
