Home >> Acura >> 2011 >> TL Base >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Supply System >> Component Location Index >> Without SH-AWD

Without SH-AWD

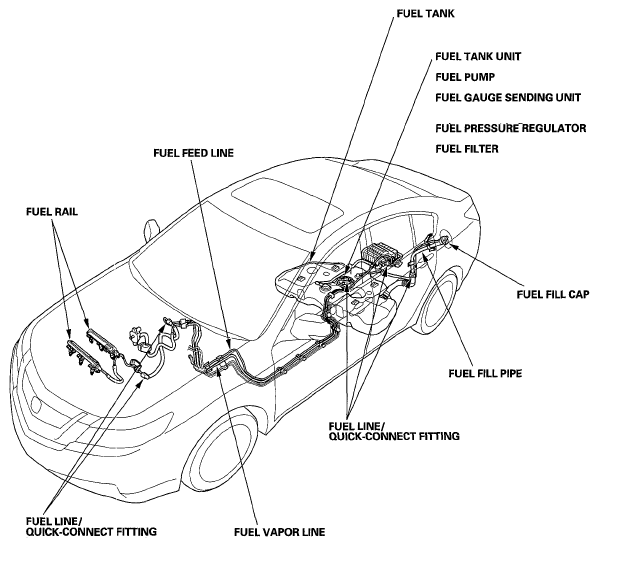

Fig 1: Identifying Fuel Supply System Component Locations (Without SH-AWD)
G05990284Courtesy of AMERICAN HONDA MOTOR CO., INC.
