Engine Mount Control System
>>
Circuit Diagram
>>
Without Keyless Access System
Without Keyless Access System

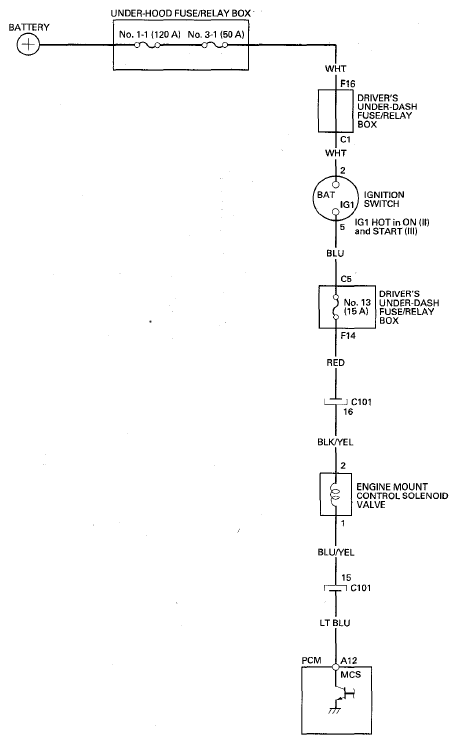

Fig 1: Engine Mount Control System Circuit Diagram - Without Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
