Ignition Coil and Spark Plug Removal/Installation: Front

  1. Remove the engine cover (see step 7 under ENGINE REMOVAL ).
  2. Disconnect the ignition coil connectors (A), then remove the front ignition coils (B).

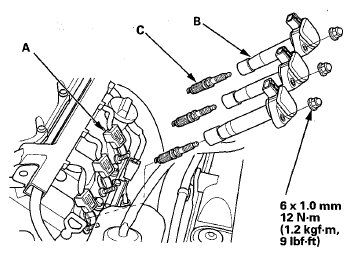

    Fig 1: Ignition Coil Connectors And Ignition Coils With Torque Specifications - Front
    G08072721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the spark plugs (C) and inspect them (see SPARK PLUG INSPECTION  ).
  4. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.

    Specified Torque:

    22 N.m (2.2 kgf.m, 16 lbf.ft)

  5. Install the front ignition coils in the reverse order of removal.
