EGR Valve Replacement

  1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the EGR valve 5P connector (A).

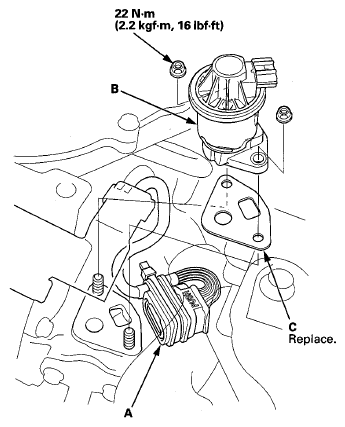

    Fig 1: EGR Valve, 5P Connector And Gasket With Mounting Nuts With Torque Specifications
    G08073026Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
